LEMO 05B, 5 pinsConnector type:
Pin numberTypeSignal name
3INMIC_POS
4GNDGNDD
5OUTSPEAK_L
10563003;a1

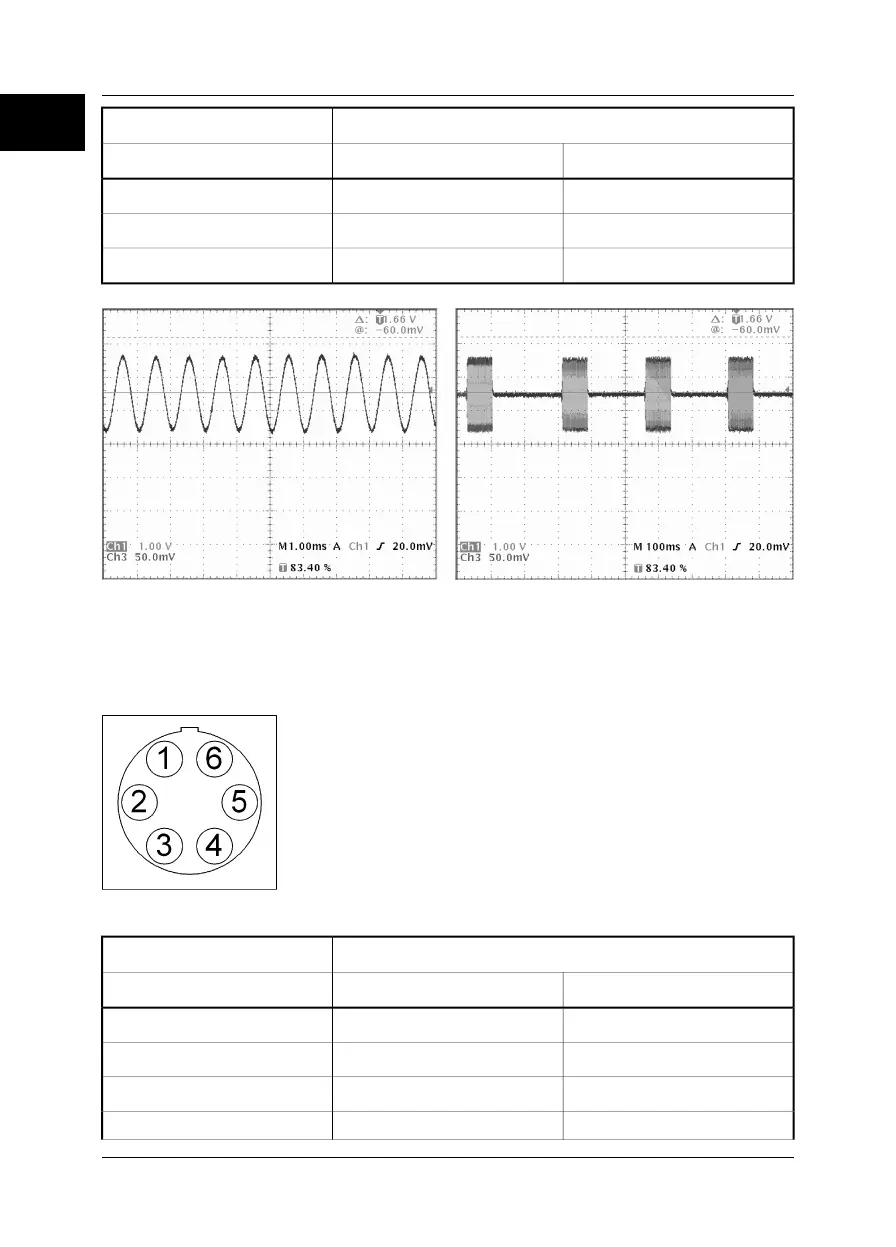

Figure 16.2 Graphical representation of alarm output signal. The alarm output signal is a 1 kHz signal with
an amplitude of 2 Vpp (load 1kΩ). The signal can drive loads as low as 16 Ω. The signal is available in pin
1 of the headset connector.
16.11.2 RS-232/USB connector
10402703;a1
Figure 16.3 Pin configuration for RS-232/USB connector (on camera – operator’s side)
LEMO 1B, 6 pinsConnector type:
Pin numberTypeSignal name
1I/OUSB_D+
2I/OUSB_D-
3OUTUSB_POWER
4GNDGND
16
118 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006
16 – Technical specifications & dimensional drawings
