16.15 Basic dimensions – camera
➲ The handle may be an extra option.
10346503;a4

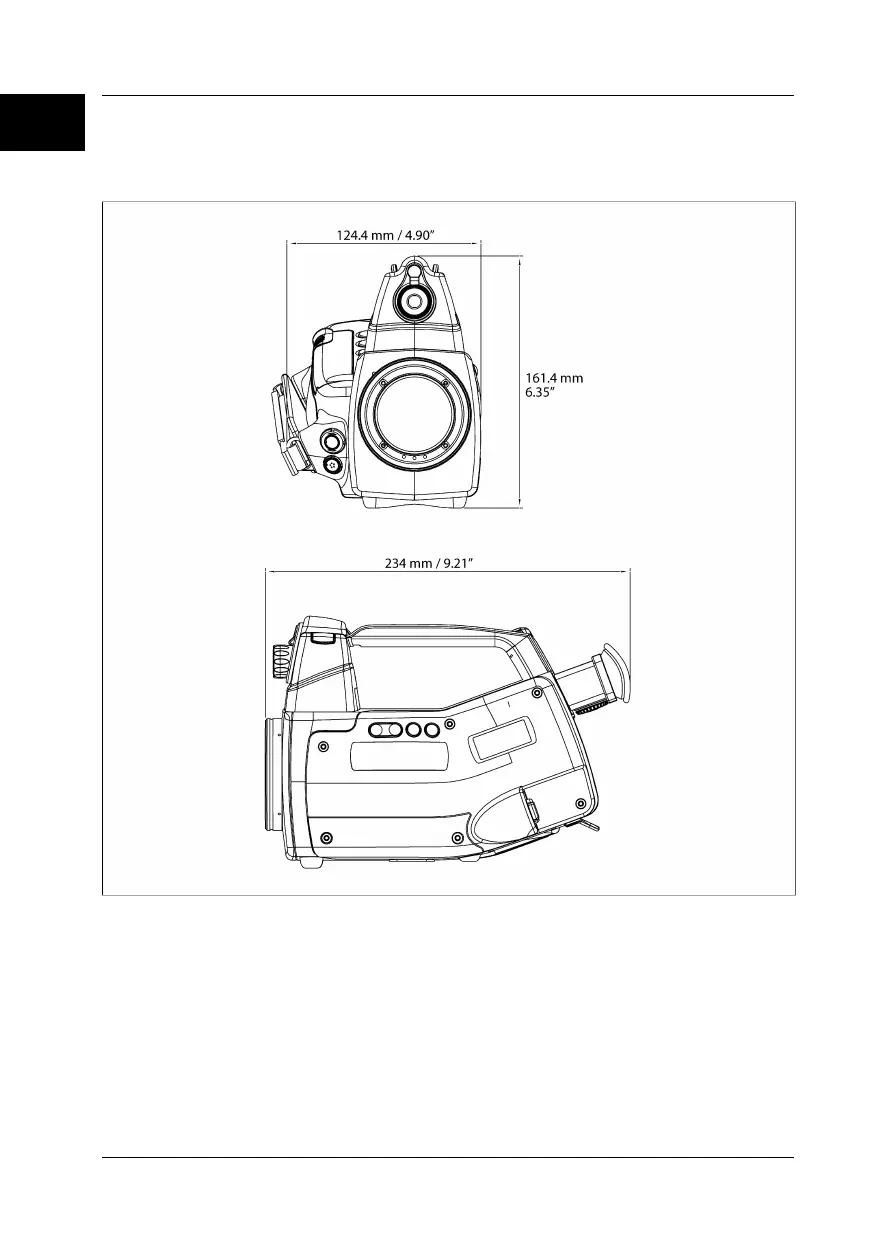

Figure 16.27 Overall dimensions of the camera. For camera type 253, replace 234 mm / 9.21" with 241
mm / 9.49". Three-digit camera type number is stated on configuration label.
16
138 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006
16 – Technical specifications & dimensional drawings
