LEMO 1B, 6 pinsConnector type:
Pin numberTypeSignal name
5OUTRS232_TX1
6INRS232_RX1

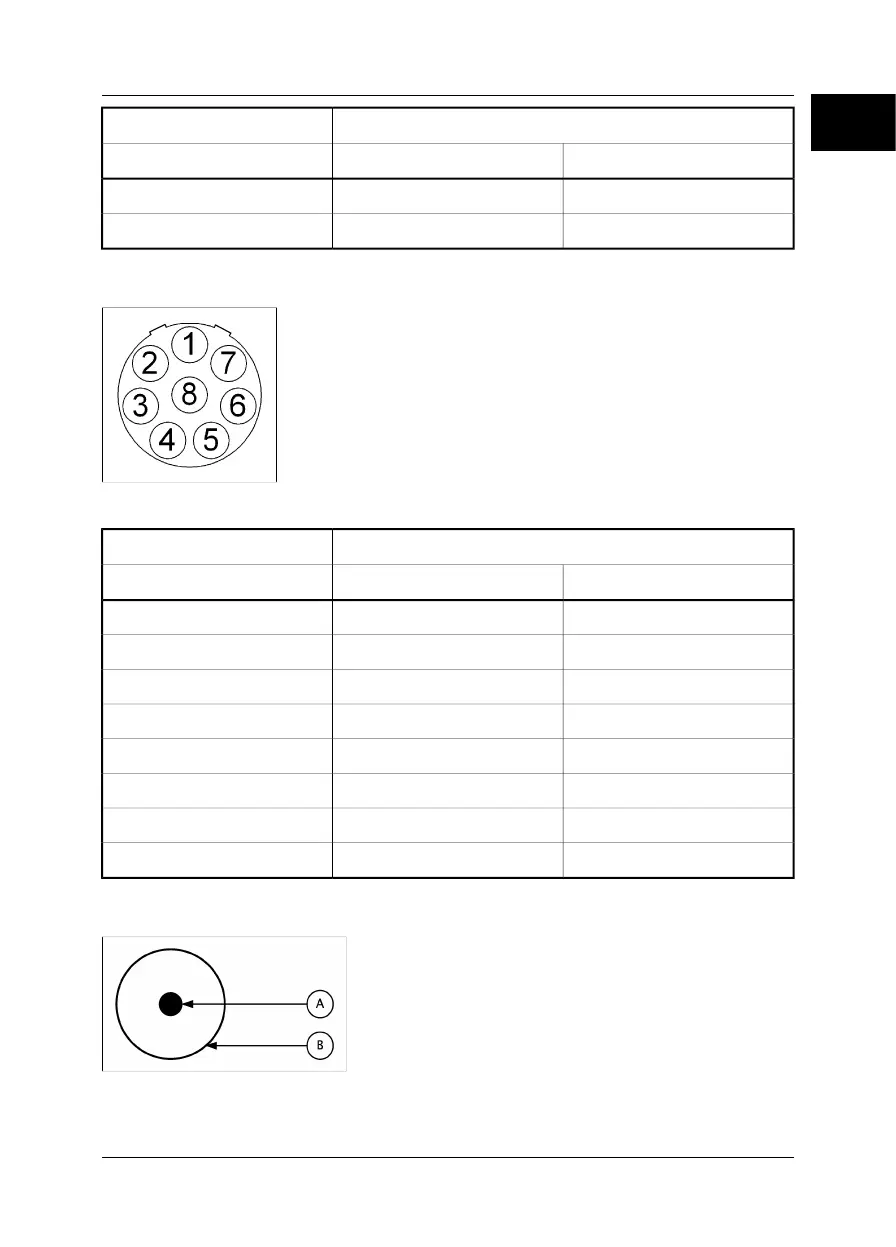

16.11.3 Remote control connector
10402803;a1
Figure 16.4 Pin configuration for remote control connector (on camera – operator’s side)
LEMO 1B, 8 pinsConnector type:
Pin numberTypeSignal name
1POWERP8VA
2I/OSCL_D
3GNDGNDD
4OUTLVDS_DISP-
5OUTLVDS_DISP+
6GNDGNDD
7I/OSDA_D
8POWERP8VA
16.11.4 Power connector
10402503;a1
Figure 16.5 Pin configuration for power connector (on camera – operator’s side). A: Center pin; B:
Chassis
16
Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 119
16 – Technical specifications & dimensional drawings
