Limitorque
®
MX Electronic Actuator FCD LMENIM2306-09-AQ – 08/17
68
4.17 Remote Mode
Remote mode permits a User to select from multiple remote control permissions, or isolate remote control to a single
control selection:
• Multi Control mode (default): There are three modes of remote control for the MX actuator allowed when the remote
mode is configured for multi-control: digital control, analog control, and network control. Digital and network control
operation is based on the last command received. Analog control operation in initiated by either toggling user input 2
(configured for CSE input) or breaking and reapplying the analog signal.
• Digital Control Only: the unit will operate only upon the last digital input command received.
• Network Control Only: the unit will operate only upon the last network command received.
• Analog Control only: the unit will operate only upon the last analog input command received.

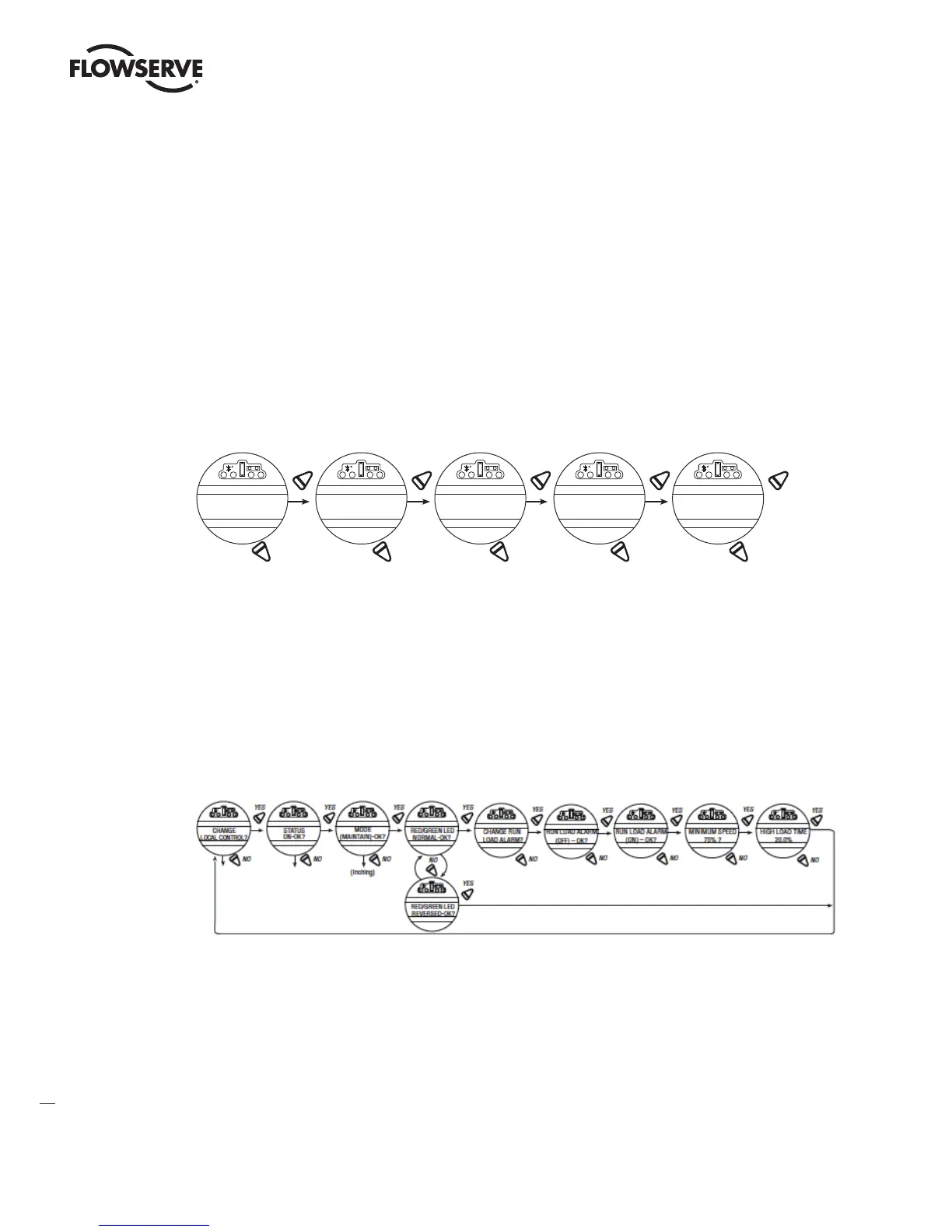

Figure 4.26 – Remote mode
NO
YES YES
NO
CHANGE
REMOTE MODE
MULTI-CONTROL
MODE - OK?
NO
YES YES
NO
DIGITAL
CONTROL ONLY?
NETWORK
CONTROL ONLY?
YE
NO
ANALOG
CONTROL ONLY?
4.17.1 Local Control
“LOCAL CONTROL” mode changes how the local control switches and display are used from the default settings.
Default = On & Maintain Mode
NOTE: User may select to disable the LOCAL CONTROL, which prohibits the cycling of the MX from OPEN to
CLOSE or REVERSE. The LOCAL-STOP-REMOTE knob still functions, which permits the user to re-enter set-up and
turn the LOCAL CONTROL back to “ON.”
Figure 4.27 – Local control
The single phase MX uses a brushless DC motor which is load sensitive. If the run torque load is greater than 30% of
the torque setting, there is a possibility that the output RPM speed will decrease. For that reason a “Run Load Alarm”
is supplied with the single phase MX. The alarm default setting is “Off”, but it can be enabled and the minimum speed
percentage adjusted per the User’s preference. A “High Load Time” can be configured to permit the “Run Load Alarm”
to activate after a percentage of the overall cycle time.
