Flowserve MX User Manual

Limitorque
®
MX Electronic Actuator FCD LMENIM2306-09-AQ – 08/17
98
5.10 View DNET Status?

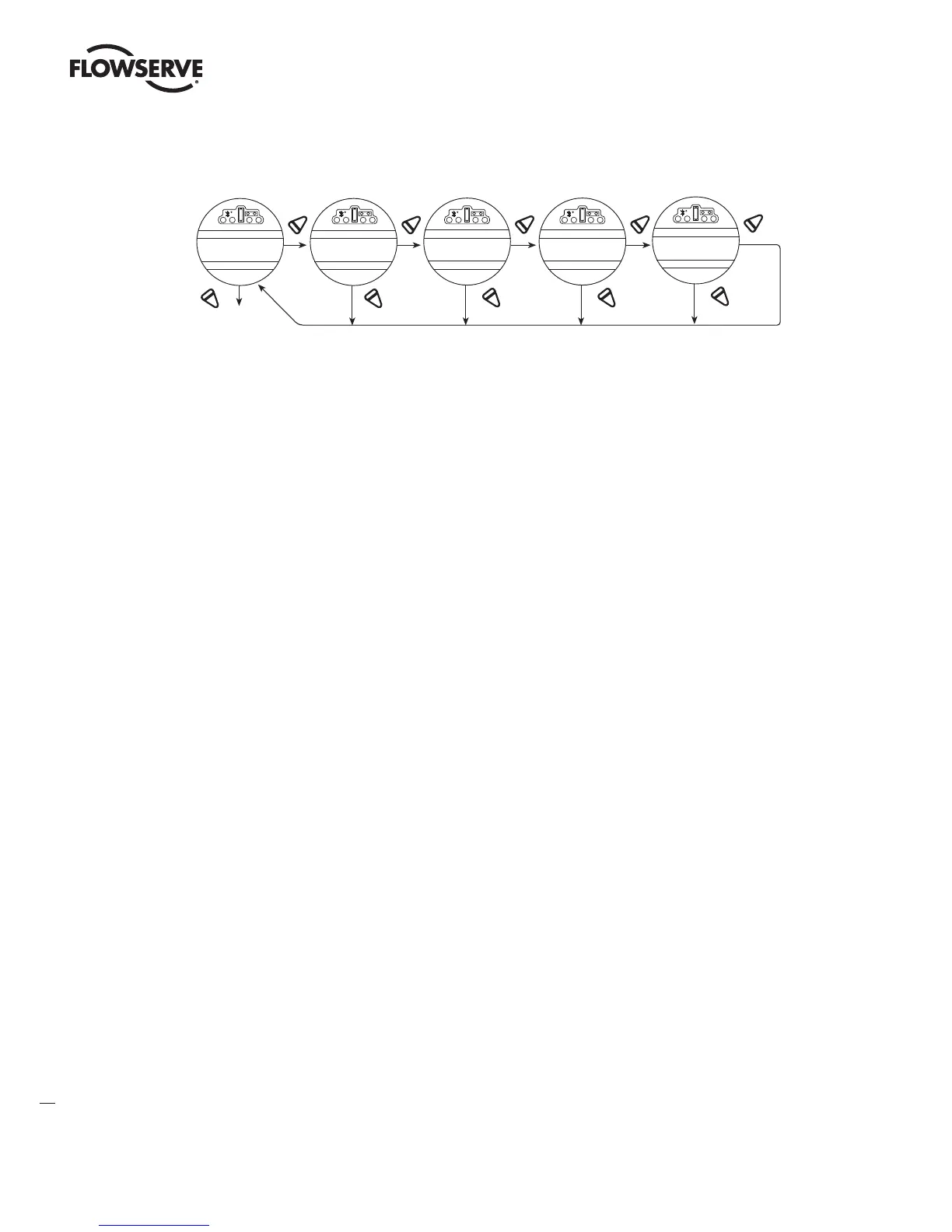

Figure 5.14 – View DNET status
YES YES
NO NO
VIEW
DNET STATUS?
YES
NO
VIEW
MODULE STATUS?
YES
NO
OFF - NEXT?
YES
NO
NOT ONLINE -
NEXT?
(OPERATIONAL)
(STANDBY)
(RECOV FAULT)
(UNRECOV FAULT)
(ONLINE)
(CONNECTED)
(CONN TIMEOUT)
(COMM FAULT)
VIEW
NETWORK STATUS?
VIEW MODULE STATUS?
Answer “YES” to determine status of individual DN board within the actuator.
Configuration choices are:
“OFF” = board installed but turned off
“STANDBY” = The device needs commissioning due to configuration missing, incomplete or incorrect.
“RECOVERABLE FAULT” = Conditions that can cause this event are e.g. communication fault, power fault or Limiguard
fault of the SMT Main Board. Device may need resetting.
“UNRECOVERABLE FAULT” = Internal Diagnostic Fault detected e.g.
• Receive Queue Overrun
• Transmit Queue Overrun
• CAN Controller Overrun
Device may need replacing.
“SELF TESTING” = The device is in self-test mode
VIEW NETWORK STATUS?
Answer “YES” to determine status of DN network.
“NOT ON LINE” = Device is not on-line.
• The device has not completed the self-test yet.
• The device may not be powered, look at Module Status Display.
LMENIM2306-09 AQ.indd 98 Mittwoch23.08.17 08:53
