Flowserve MX User Manual

Limitorque
®
MX Electronic Actuator FCD LMENIM2306-09-AQ – 08/17
75
flowserve.com

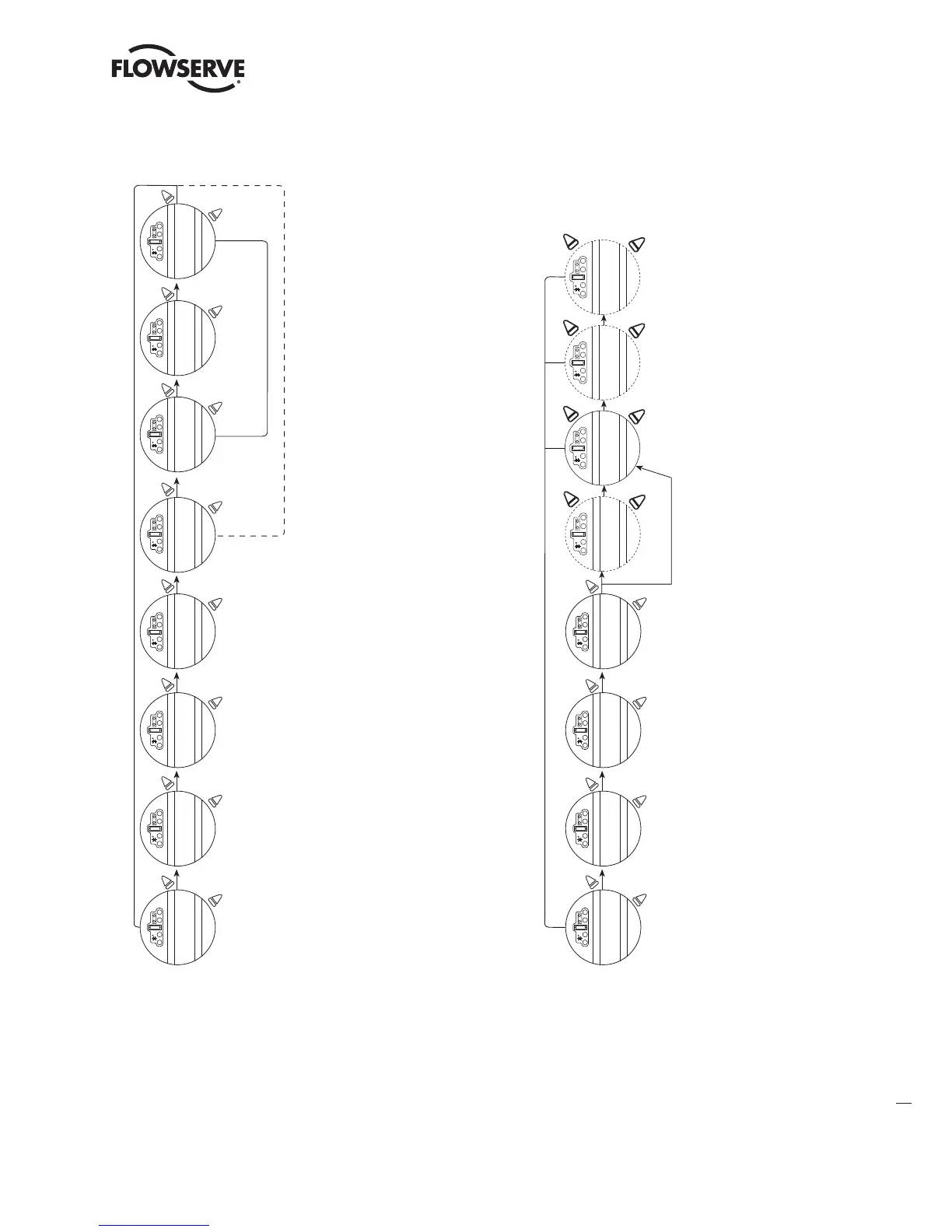

Figure 4.29 – Custom input modes

see Note 4
see Note 5 see Note 6
Note 4: The “ESD ACTION” menu will only appear if the status function for the input is “MOMENTARY ESD/PSESD”. Otherwise the “SIGNAL PRESENT” menu will return to the “CHANGE INPUTS” menu. Note 5: The “ESD MOVE TO” menu only appears if position is chosen as action . Note 6: “PS MOVE TO” menu only appears if the status function of the input is “MOMENTARY ESD/PSESD”. The user will only be able to change the ESD ACTION (and ESD MOVE TO target if ESD action is position, and the PS MOVE TO settings when in this special custom mode 1. Following are the preconfigured settings for each input.
CHANGE
INPUTS
CHANGE STATUS
INPUT (0)?
STATUS
(OFF)?
INPUT (1) INPUT (2) INPUT (3) INPUT (4) INPUT (5)
(PSESD ENABLE) (
MOMENTARY
ESD RELEASE)
(
MOMENTARY
ESD/PSESD)
(CLOSE) (OPEN) (STOP) (POSITION)
(ABSENT)
(ON)
STATUS FUNCTION
USER INPUT?
ESD ACTION
(IGNORE)-OK?
PS MOVE TO
O% OPEN
ESD MOVE TO
XXX% OPEN
SIGNAL
(PRESENT)-OK?
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
INPUT 0:
ON, ESD Time Delay Relay, signal present, ESD action closed
.
INPUT 1:
ON, User Input, signal present
INPUT 2:
ON, User Input, signal present
INPUT 3: ON, Stop INPUT 4: ON, Open INPUT 5: ON, Close
The following menus will appear if the customer has the custom mode input option, and has enabled custom mode 1 (in remote control menu). Custom mode 2 is same as mode 1 except there is no PS sequence available. See Table 4.1.
CHANGE
INPUTS?
CHANGE
INPUT 0?
STATUS
(ON) - OK?
INPUT (1) INPUT (2)
(CLOSE INHIBIT) (OPEN INHIBIT) (BOTH INHIBIT) (USER INHIBIT) -
See Note 1
(OFF)
STATUS FUNCTION
ESD - OK?
Note 1: ESD is hard oded for INPUT 0. You can only configure INPUTS 1 and 2 for the other options. Note 2: TDR DELAY will only show for INPUT 0. All other inputs this is skipped. Note 3: ESD ACTION menu will only appear if the STATUS FUNCTION for inputs is ESD otherwise the SIGNAL PRESET menu will return to the CHANGE INPUTS menu. Note 4: The ESD MOVE TO menu only appears if position is chosen as action.
YES
NONO
YES
NO
YES
NO
YES
INPUT 0: ON, ESD Time Delay Relay, signal present, ESD action closed. INPUT 1: ON, User Input, signal present INPUT 2: ON, User Input, signal present INPUT 3: ON, Stop INPUT 4: ON, Open INPUT 5: ON, Close
0-1800 SECS 30 SEC INCREMENTS
TDR DELAY
0 SECS - OK?
YES
NO
See Note 2
See Note 3
See Note 4
ABSENT
(IGNORE) (POSITION) (STOP) (OPEN)
SIGNAL
(PRESENT)-OK?
ESD ACTION
(CLOSE)-OK?
ESD MOVE TO
XXX% OPEN
YES
NO
YES
NO
YES
NO
The following menus will appear if the customer has the custom mode input option, and has enabled custom mode 3 (in remote control menu).
