Disassembly
No disassembly is required since the torque nut has been machined to an international standard. Clean the bore and
lightly grease.

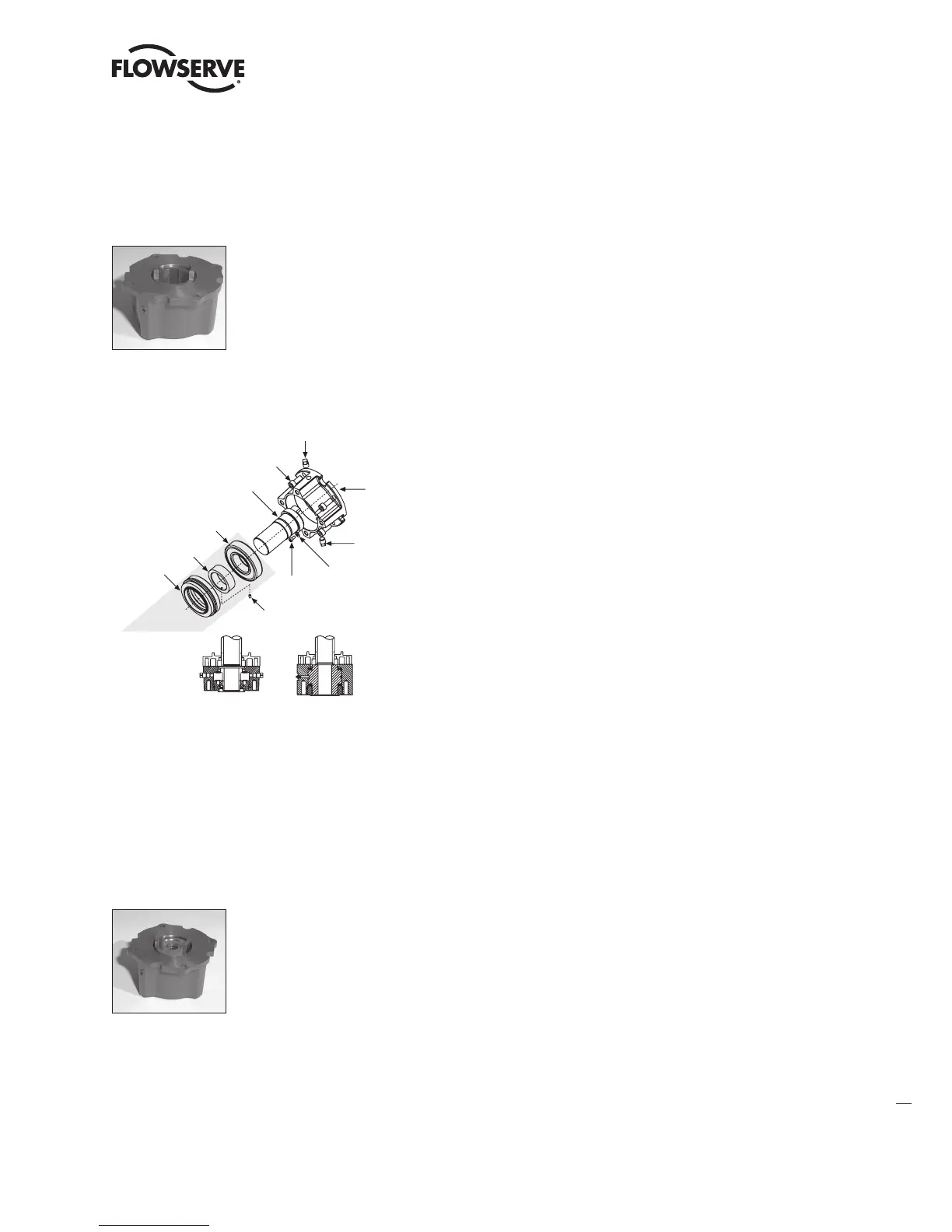

Figure 3.4 – B1 base
NOTE: Fill base with a Lithium based EP0 grease.
Figure 3.5 – Exploded view of B1 base
Housing,
torque/thrust
Pipe plug
Washer (M4)
Socket head
cap screw (M4 x 8)
Socket head set screw
Retainer, bearing
Pilot, torque/thrust
Bearing
Torque nut (B1)
Socket head cap
screw (M8 x 20)
Pipe plug
MX-05 B1
MX-40 B1
Thrust nut
assembly
3.1.2 Type “A” Bases: Thrust-only Applications
Standard A1/A1E Base
The standard MX actuator thrust base is the A1, and may be bolted directly to the actuator. The thrust base contains a
bronze alloy thrust nut that may be machined to suit the valve stem.
An A1E (extended) thrust nut can be provided and may be installed to reach shorter stems.
Figure 3.6 – A1 base
Disassembly – Units MX-05/10/20/40
Refer to Figure 3.7.
Disassembly of the main housing from the base may be recommended to allow the base to remain on the valve if the
actuator must be removed for service.
