Limitorque

MX Electronic Actuator FCD LMENIM2306-09-AQ – 08/17

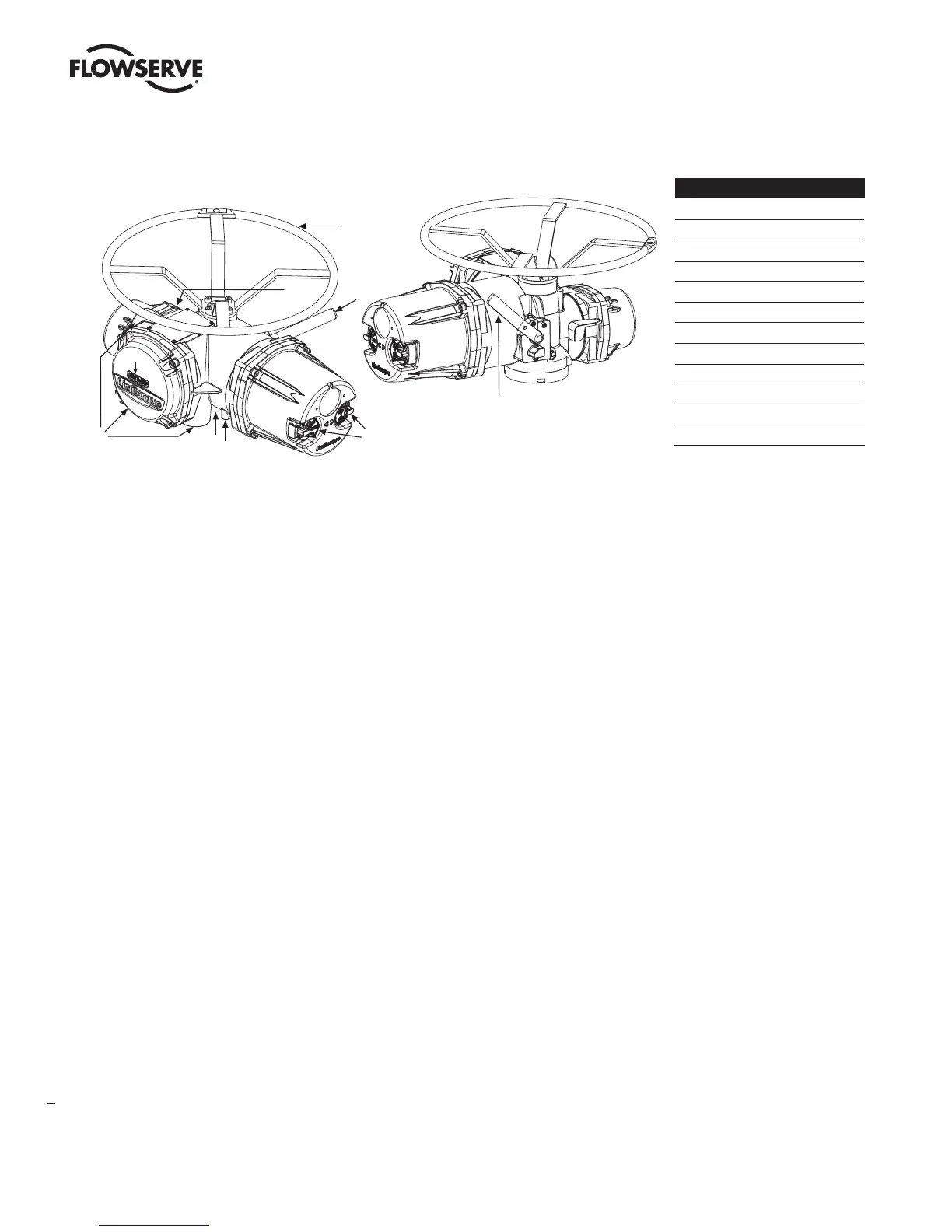

Figure 1.1 – MX-05 Actuator

Piece Description

1 Handwheel

2 Declutch Lever (MX-05)

3 Oil Fill

4 Controls Cover

5 LCD

6 Control Knob

7 Ground Lug

8 Thrust/Torque Base

9 Conduit Entry

10 Terminal Compartment

11 Motor

12 Nameplate

Important Notes

• Please read this manual in its entirety before attempting to install or operate your MX actuator. A full understanding

of the installation and operation options will assist you in installing the actuator in the most effective manner.

Limitorque has designed the MX actuator for long life even in the harshest environments. Flexible control and

protection options are provided to ensure the actuator meets your requirements.

• All actuator enclosures are sealed by O-rings, and cable entries are supplied with threaded plugs to protect the

terminal compartment until the unit is wired. If the actuator cannot be installed immediately, it is recommended that

it be stored in a clean, dry place, preferably in an area that is not subject to large ﬂuctuations in temperature.

• Disconnect all incoming power before opening any cover on the actuator. The user/operator must ensure that safe

working practices are employed at all times and are in accordance with local or national standards that are enforced

at the particular site.

• To install and commission the actuator, only the terminal compartment cover needs to be removed. See Figure

1.1, Item 10. Settings for commissioning the actuator are done externally; therefore, no other covers need to be

removed. The actuator was assembled in ideal dry conditions and the total sealing of the enclosure protects all

electrical components against deterioration.
