5.9 View Operation Log
The “OPERATION LOG” provides information to assist in the maintenance program for the actuator because it indicates
the total number of actuator turns, contactor operations, motor run time, and declutching operations since the actuator
was manufactured. These figures may not be reset except in “RESTRICTED SETUP.” Contact factory.
The LCD screen definitions are as follows:
• “STROKE TIME” – Length of time of last actuator operation
• “TURNS TOTAL” – Total number of drive sleeve revolutions
• “TURNS RECENT” – Number of drive sleeve revolutions since last diagnostic reset. See Section 4.21, Diagnostic
Reset, for reset diagnostics instructions.
• “CONTACTOR OPS” – Total number of contactor operations
• “OPS RECENT” – Number of contactor operations since last diagnostic reset. See Section 4.21, Diagnostic Reset, for
reset diagnostics instructions.
• “MOTOR RUN TIME” – Total motor operational time
• “TIME RECENT” – Motor operational time since last diagnostic reset. See Section 4.21, Diagnostic Reset, for reset
diagnostics instructions.
• “MOVED MANUAL #” – Total number of times unit has been operated manually
• “MANUAL # RECENT” – Number of times unit has been operated manually since last diagnostic reset. See Section
4.21, Diagnostic Reset, for reset diagnostics instructions.

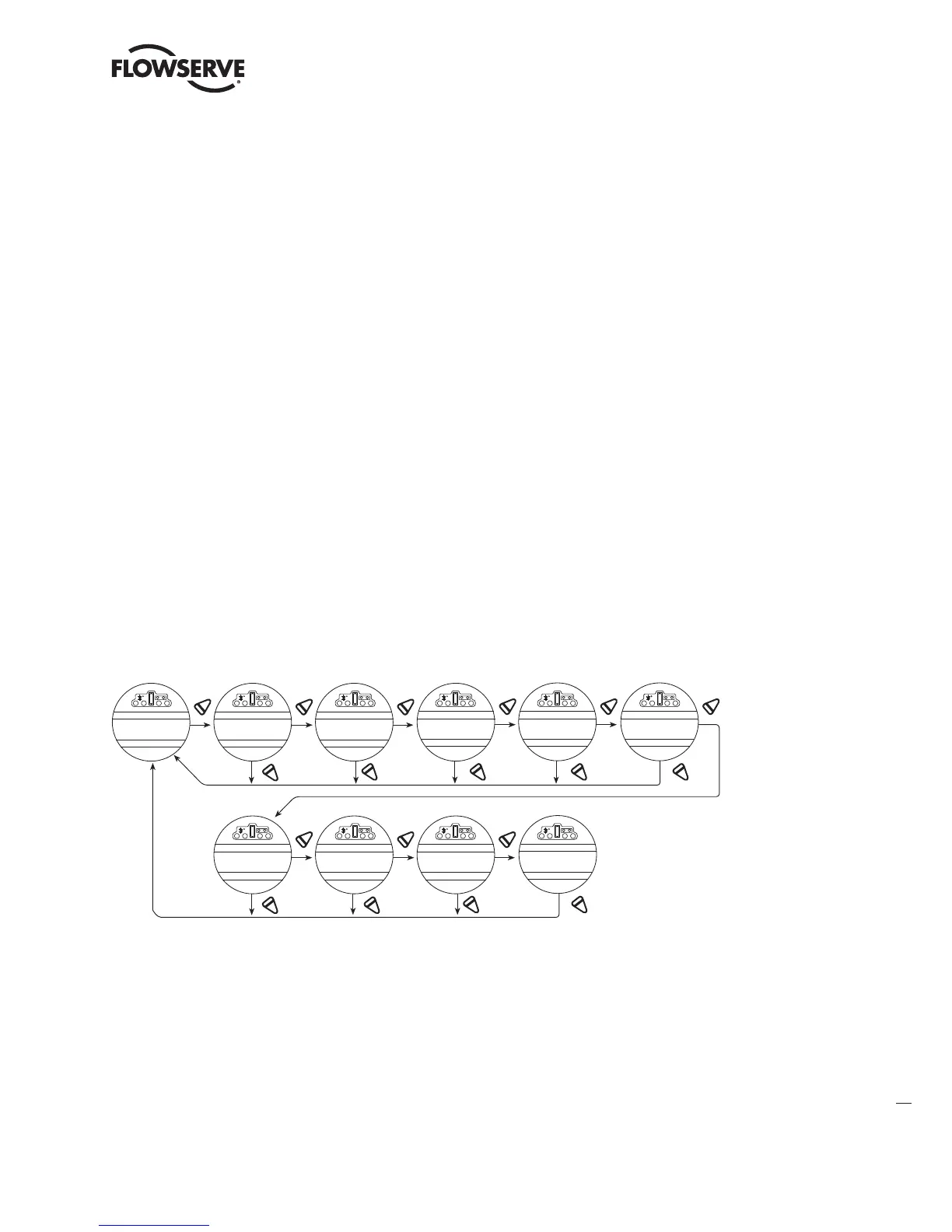

Figure 5.13– View operation log
This selection permits the User to view pertinent information that summarizes the status of the DeviceNet option board
TURNS RECENT
4294967296-OK?
YES YES YES
NO
NO
YES YES
NO NO
YES
NO
YES YES YES
NO
NO NO
NO
(See NOTE 1 )
NOTE 1: Resetable –
See Section 4.21,
Diagnostic Reset
(See NOTE 1 )
(See NOTE 1 ) (See NOTE 1 )
VIEW
O PERATION L OG?
STROKE TIM E
65536 SECS-OK?
TURNS TOTAL
4294967296-OK?
OPS RECENT
4294967296-OK?
CONTACTOR OPS
4294967296-OK?
MOTOR RUN TIME
1193046xHR-OK?
TIME RECENT
4294967296-OK?
MOVED MANUAL#
4294967296-OK?
M ANUAL#RECENT
4294967296-OK?
