Chapter 4: Maintenance
Nebulizer Assembly Maintenance
110 CyTOF XT User Guide

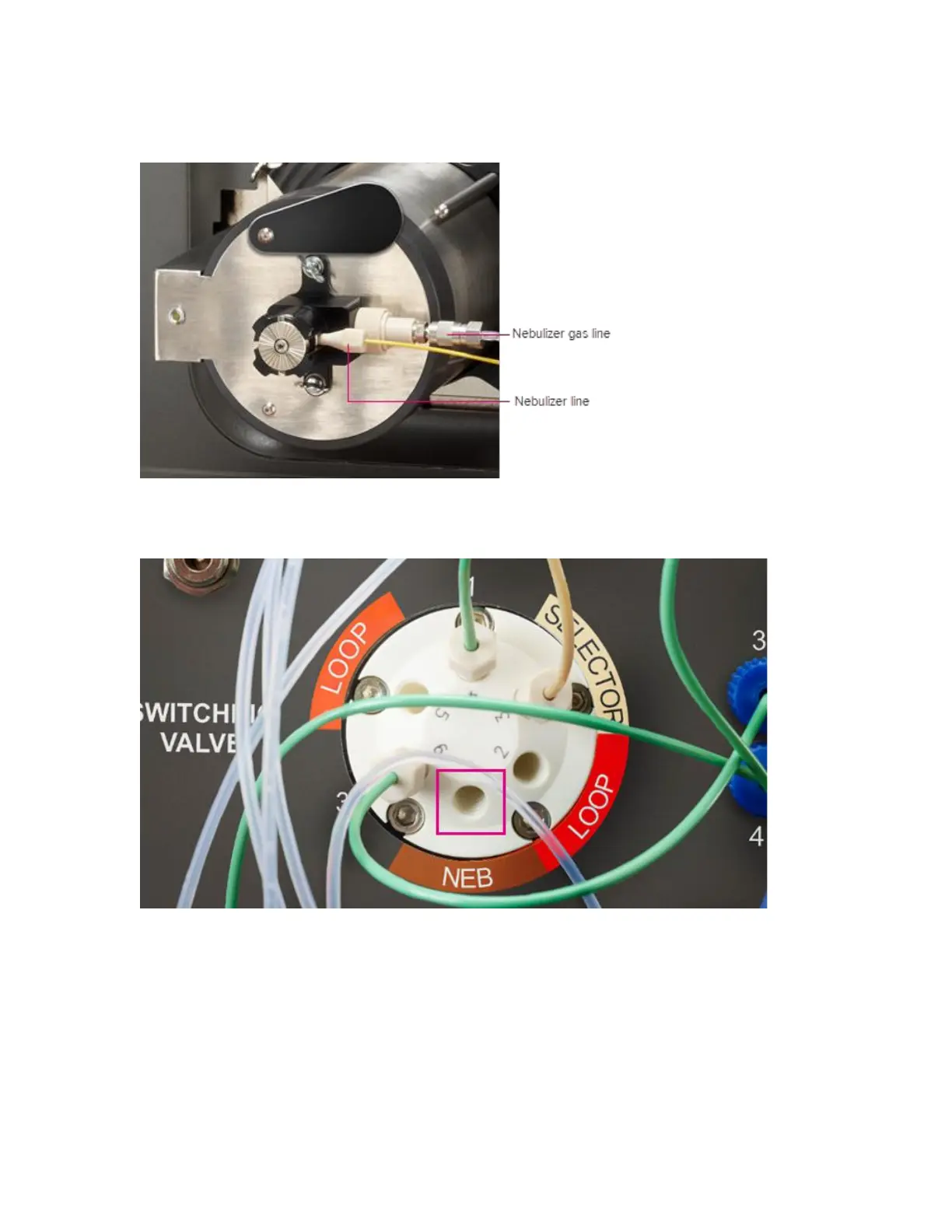

3 Turn the fitting counterclockwise to loosen it and remove the nebulizer line from the
nebulizer assembly.
4 Turn counterclockwise to loosen the fitting and remove the Nebulizer line from its NEB
position on the switching valve of the pump and valve unit.
5 Turn clockwise to install the new nebulizer line on the nebulizer assembly. Take care
not to leave an air gap between the end of the line and the liquid connection port on the
nebulizer assembly.
6 Turn clockwise to install the new nebulizer line to the NEB position on the pump and
valve unit. Take care not to leave an air gap between the end of the line and valve port.
