Chapter 4: Maintenance
Remove and Clean the Torch Assembly
118 CyTOF XT User Guide

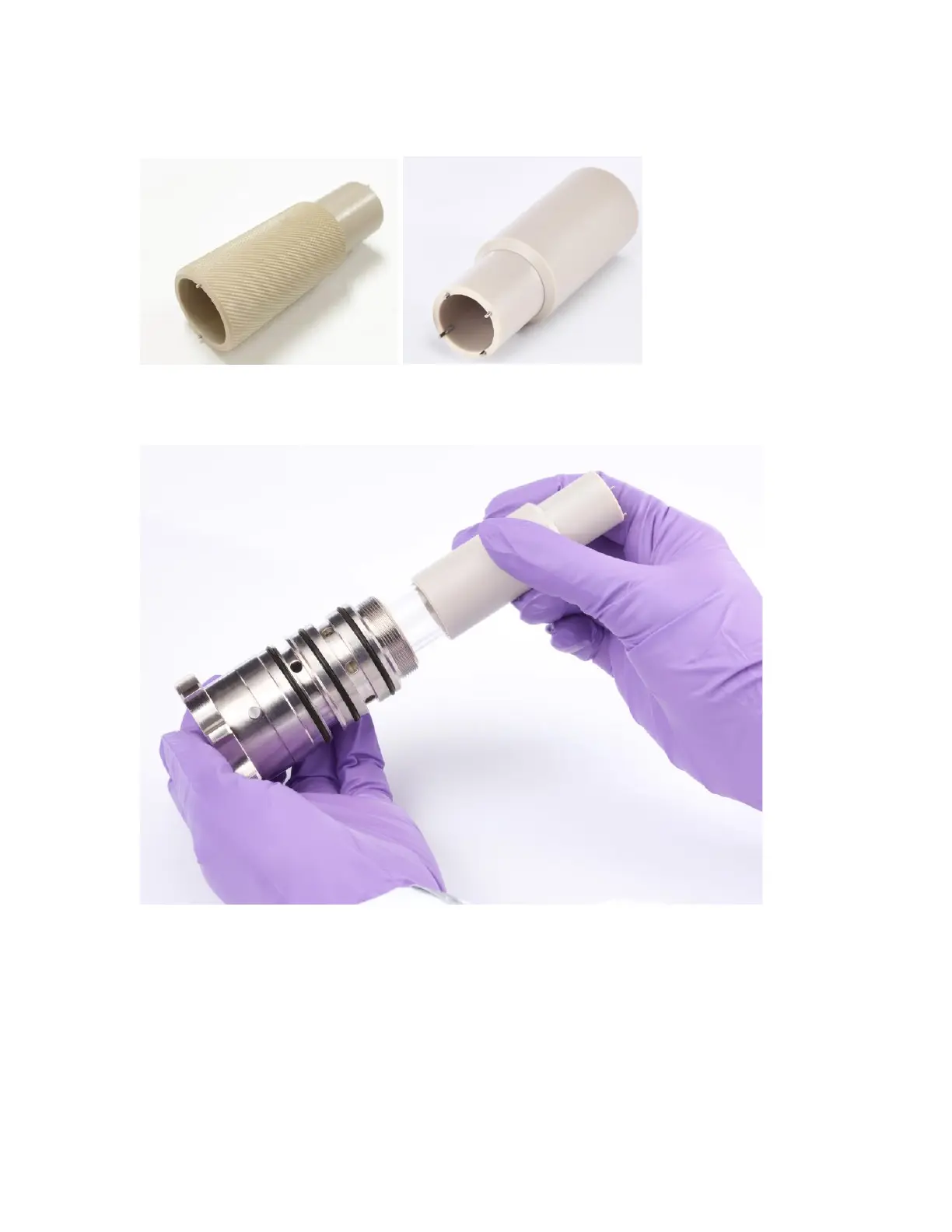

NOTE The torch removal tool has 2 ends, one to remove the outer torch and the other
to remove the inner torch.
4 Line up the 2 pins on the larger-diameter end of the torch removal tool with the 2
notches on the outer torch.
