Remove and Clean the Torch Assembly
CyTOF XT User Guide 123

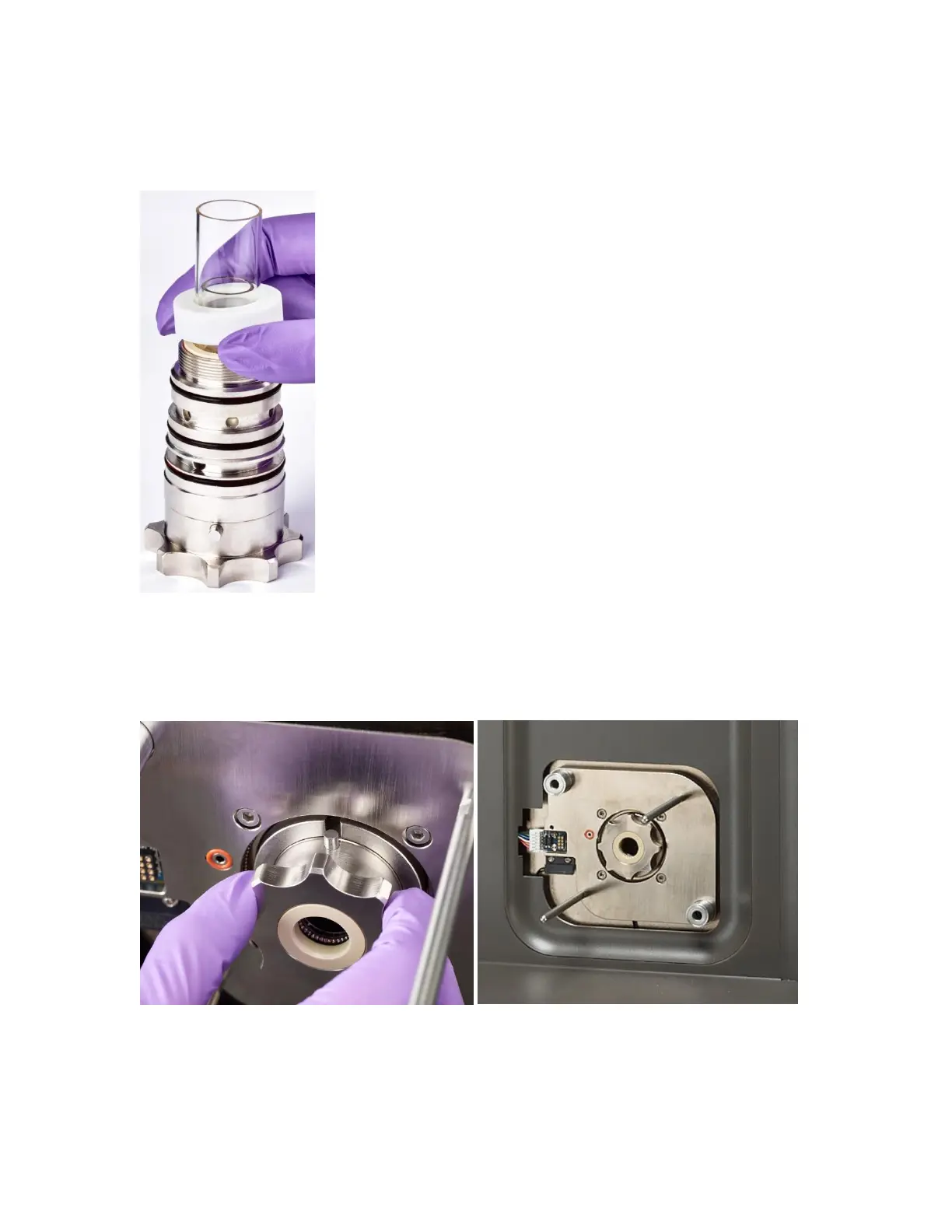

4 After alignment is complete, secure the torch assembly to the torch holder with the
retaining ring. Turn the torch assembly clockwise until hand tight.
IMPORTANT Do not overtighten the retaining ring.
5 Repeat Step 3a to check the alignment once more using the torch verification tool.
6 Align the pin at the top of the torch assembly with the notch on the torch box.
7 Once the pin is in the torch box, rotate it clockwise to fully seat the torch.
