Chapter 4: Maintenance
Reassemble the Injector and Spray Chamber
CyTOF XT User Guide 77

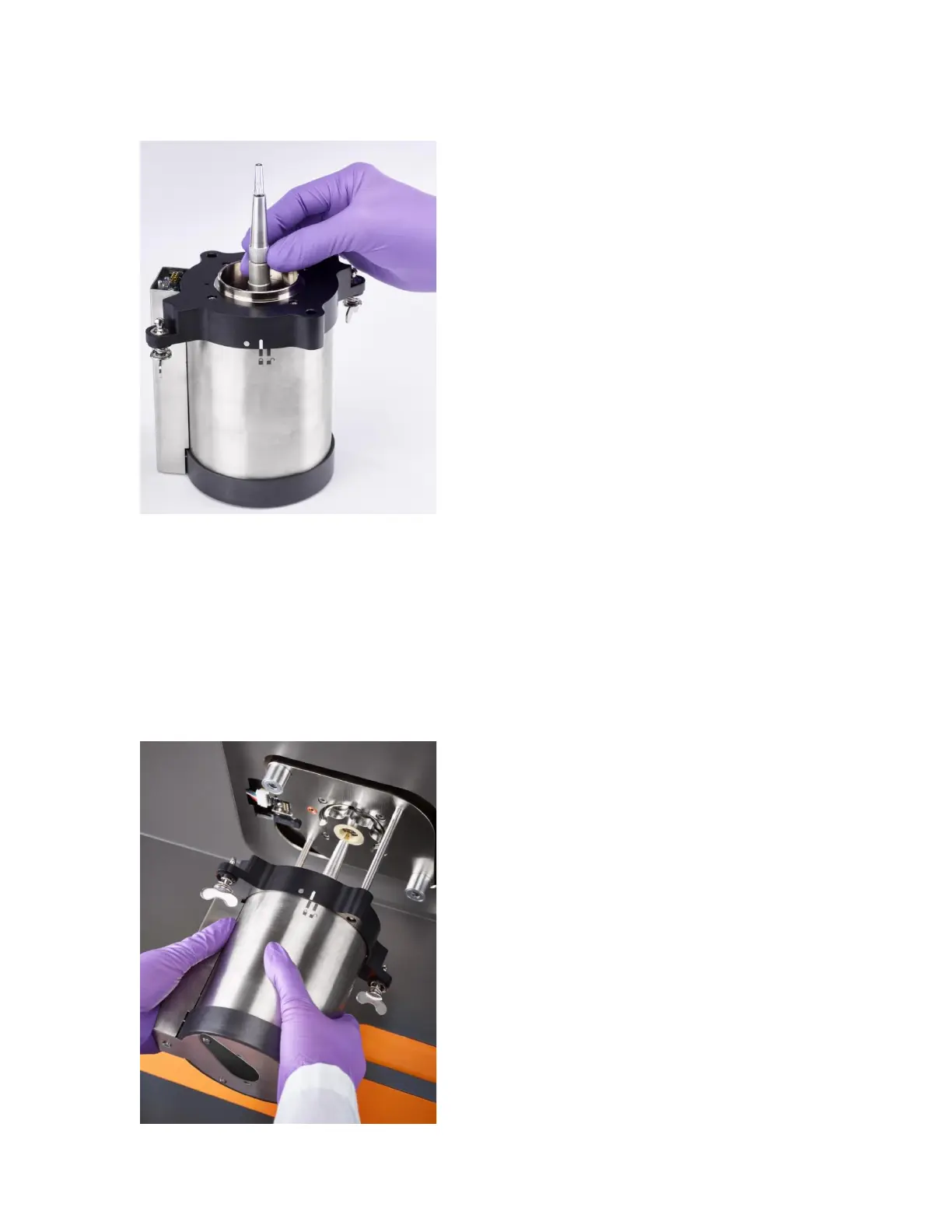

7 Slide the injector cap onto the injector.
8 While applying gentle downward pressure on the injector so that it remains at its lowest
position, thread the nut of the injector cap clockwise to lock the injector in place. Ensure
that THIS SIDE OUT can be seen on the injector holder.
IMPORTANT The injector must be in the lowest position to avoid damage during
operation.
9 Hold and turn the heater assembly so that the injector is facing the torch assembly.
Align the heater assembly on the 2 guide pins and push gently to insert the injector
completely into the torch assembly.
