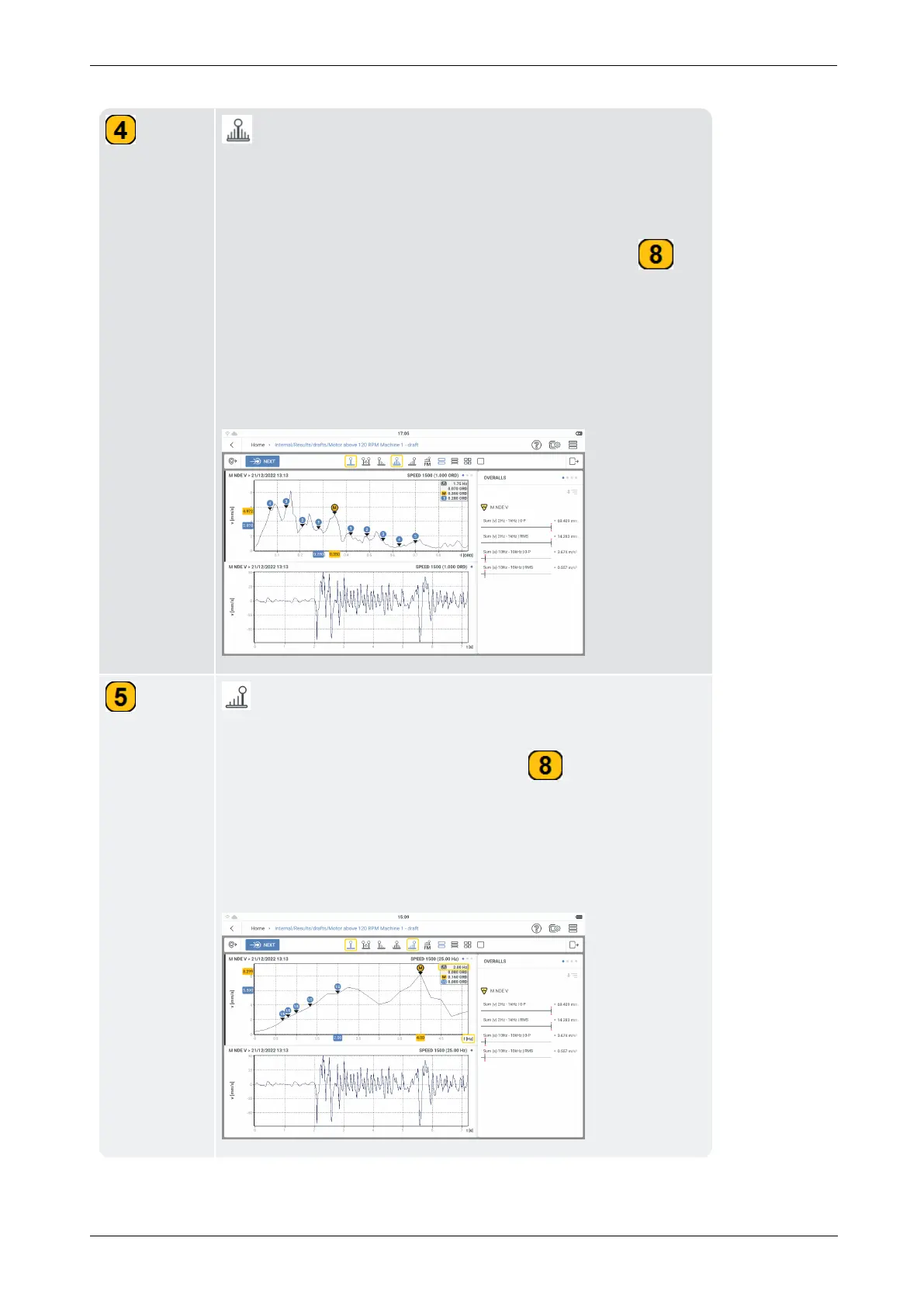

– The sideband cursors accompany the main cursor and
they are on both sides of the main cursor. In the spectrum,
they are labeled to a maximum of 6 on each side of the main
cursor. The sideband cursors are equidistant to the main
cursor and to each other. The cursor information box ( )
shows the difference between the main cursor and the first
sideband cursor on the left side of the main cursor. The value
shown has the x-axis units. In the spectrum graph, the inform-
ation box shows also the values for the main cursor and the
first sideband cursor on the left of the main cursors in orders.
– The subsynchronous cursors accompany the main cursor
and are shown at 1/2, 1/3, 1/4, 1/5 and 1/6 of the main cursor
frequency. The cursor information box ( ) shows the dif-
ference between the main cursor and the 1/2 cursor. The
value shown has the x-axis units. In the spectrum graph, the
information box shows also the values for the main and 1/2
cursors in orders.
