WS000457A
GPM
l/s
Q
H

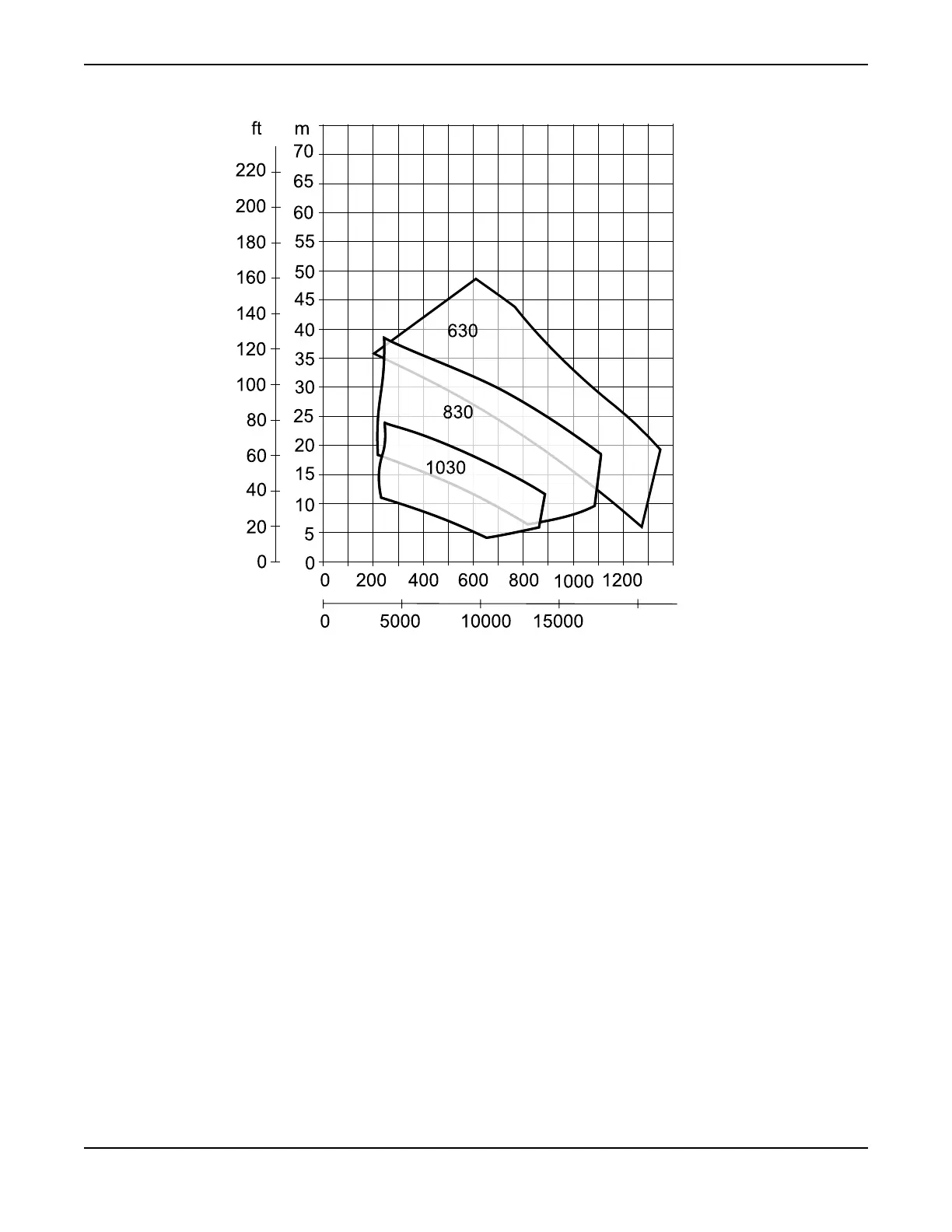

Figure 84: C3400, 60 Hz, medium voltage
C3400 motor rating and performance, 60 Hz
152
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
