FLYGT C3501 - Medium Voltage

0 500 1000 1500 2000 2500 3000 3500
l/s
0 10000 20000 30000 40000 50000
GPM
0
4
8
12
16
20
24
28
32
36
m
0
10
20
30
40
50
60
70
80
90
100
110
120
ft
H
1040
1440
WS000492A
Q
1240

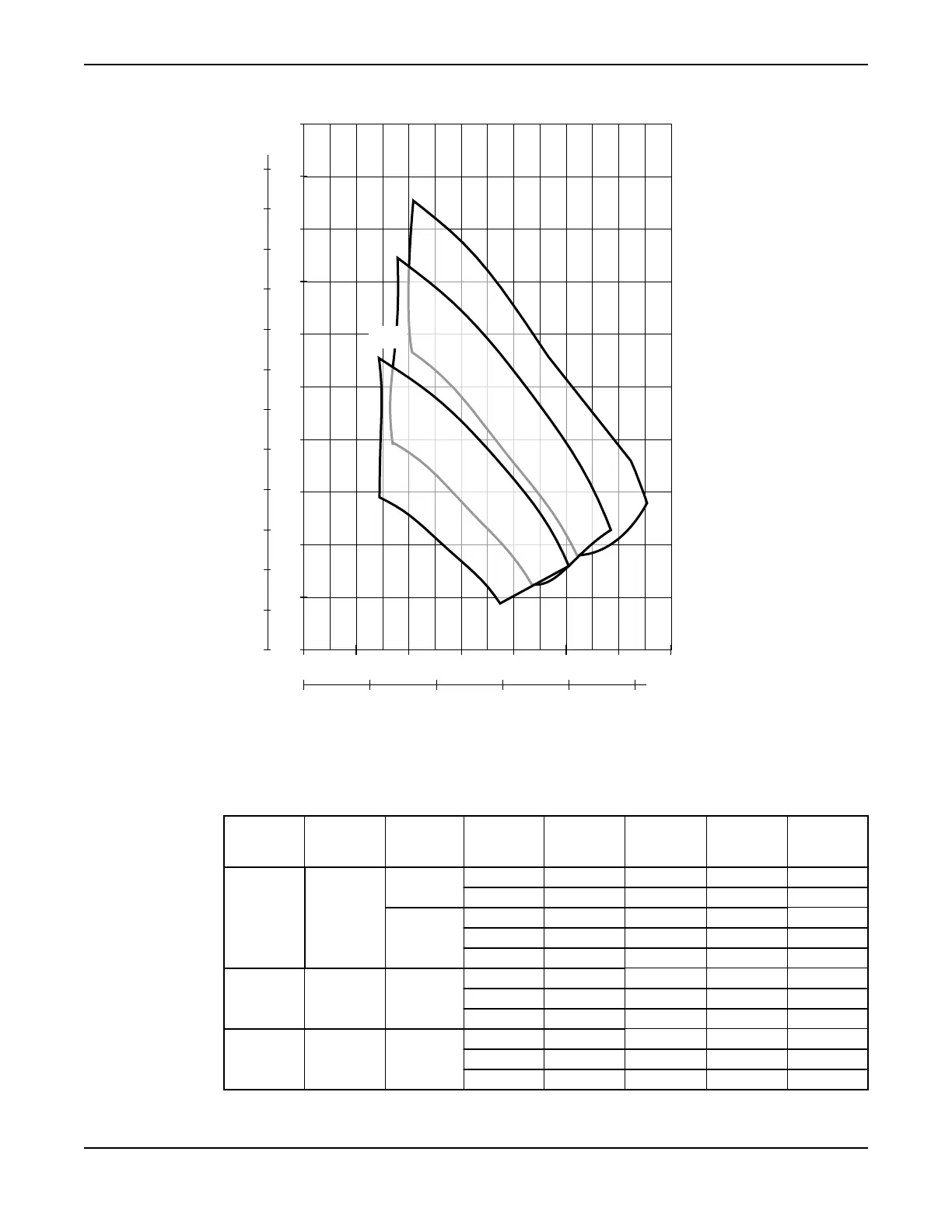

Figure 91: C3800, 60 Hz, low voltage
Medium voltage
Table 82: C3800, 60 Hz, medium voltage
Curve /
impeller
no.
Rotations
per minute
Drive unit Voltage, V Rated
power, HP
Rated
current, A
Starting
current, A
Power
factor cos φ
1440 500 950 / 960 4160 215 35 129 0.69
4160 280 45 167 0.69
985 / 995 4160 335 52 185
0.71
4160 400 63 233 0.70
4160 460 72 270 0.71
1240 595 985 / 995 4160 400
61 284 0.72
4160 470 71 330 0.73
4160 560 82 375 0.75
1040 710 985 / 995 4160 440
59 340 0.81
4160 540 72 405 0.82
4160 670 88 485 0.83
C3800 Motor rating and performance, 60 Hz
