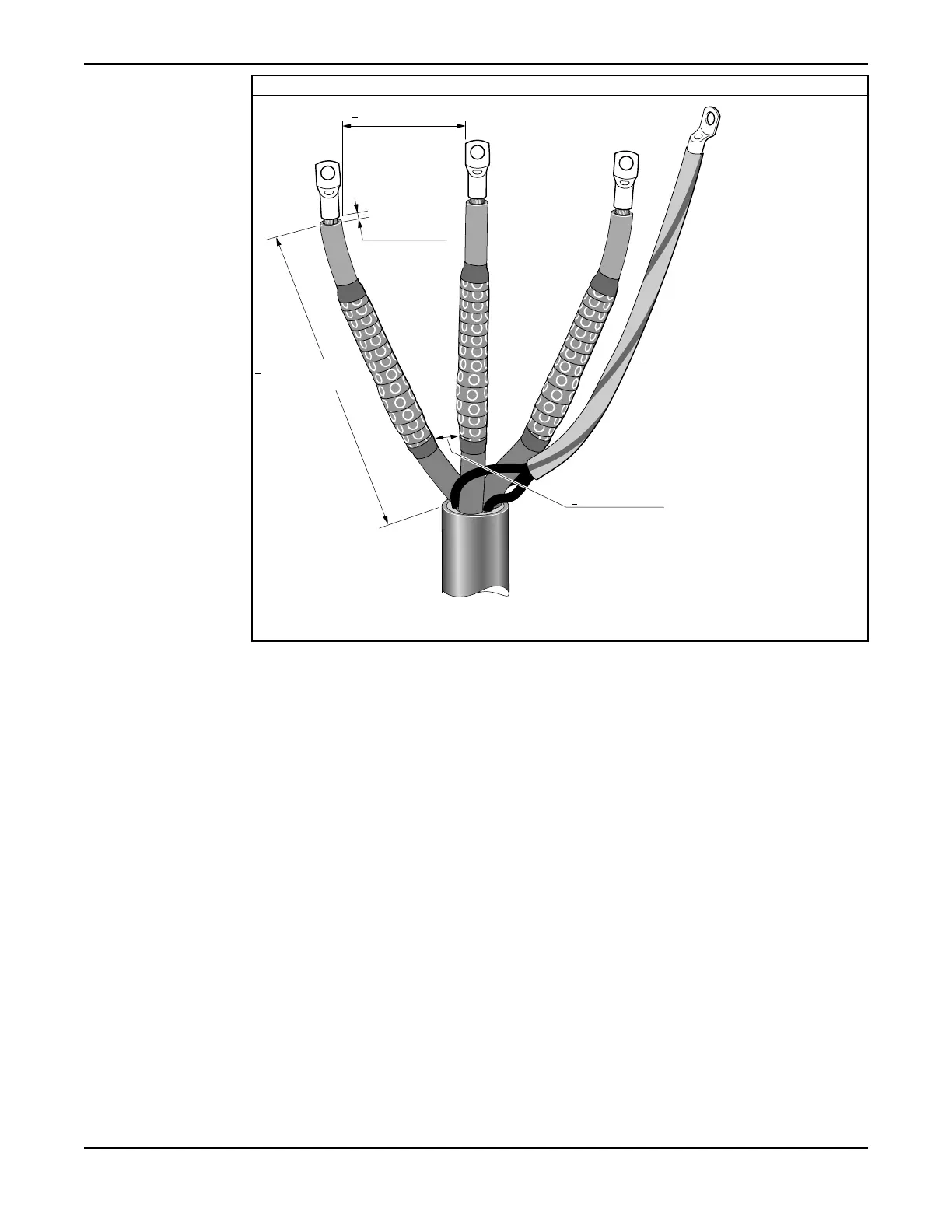

Example of cable end at electrical panel:
5 mm (0.2 in.)
> 120 mm (4.72 in.)
> 300 mm (11.8 in.)
> 10 mm (0.4 in.)
F000184
Dimensions shown are the recommended distances.
Connect the coolant
This instruction is for connecting the cooling system to the pump.
Connect the integrated cooling system
This instruction is for connecting a drainage pipe to the bottom of the cooling jacket for pumps using
integrated cooling. The pumped fluid is used as coolant in these systems. Coolant supply (inlet) and return
(outlet) lines do not have to be connected when integrated cooling is used.
Connect the fittings to drain the coolant as shown in Fittings needed to drain cooling jacket (page 38).
Connect the external cooling system
This instruction is for connecting external cooling systems to the pump.
1. Connect the coolant supply line to the pump inlet.
Installation
72 C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
