MAS sensor connections
FLOAT SWITCH
CLS LEAKAGE
SENSOR
VIBRATION
SENSOR
RPM DETECTOR
PTC - THERMISTOR
PT 100 - SENSOR
THERMAL
SWITCH
OIL FLOW
SENSOR
LEAKAGE
STATOR
LEAKAGE
CONNECTION
HOUSING
TEMP
MAIN
BEARING
TEMP 1
WINDING
WINDING
TEMP
TEMP
SUPPORT
BEARING
TEMP 3
WINDNING
TEMP 2
WINDNING
WS000508A

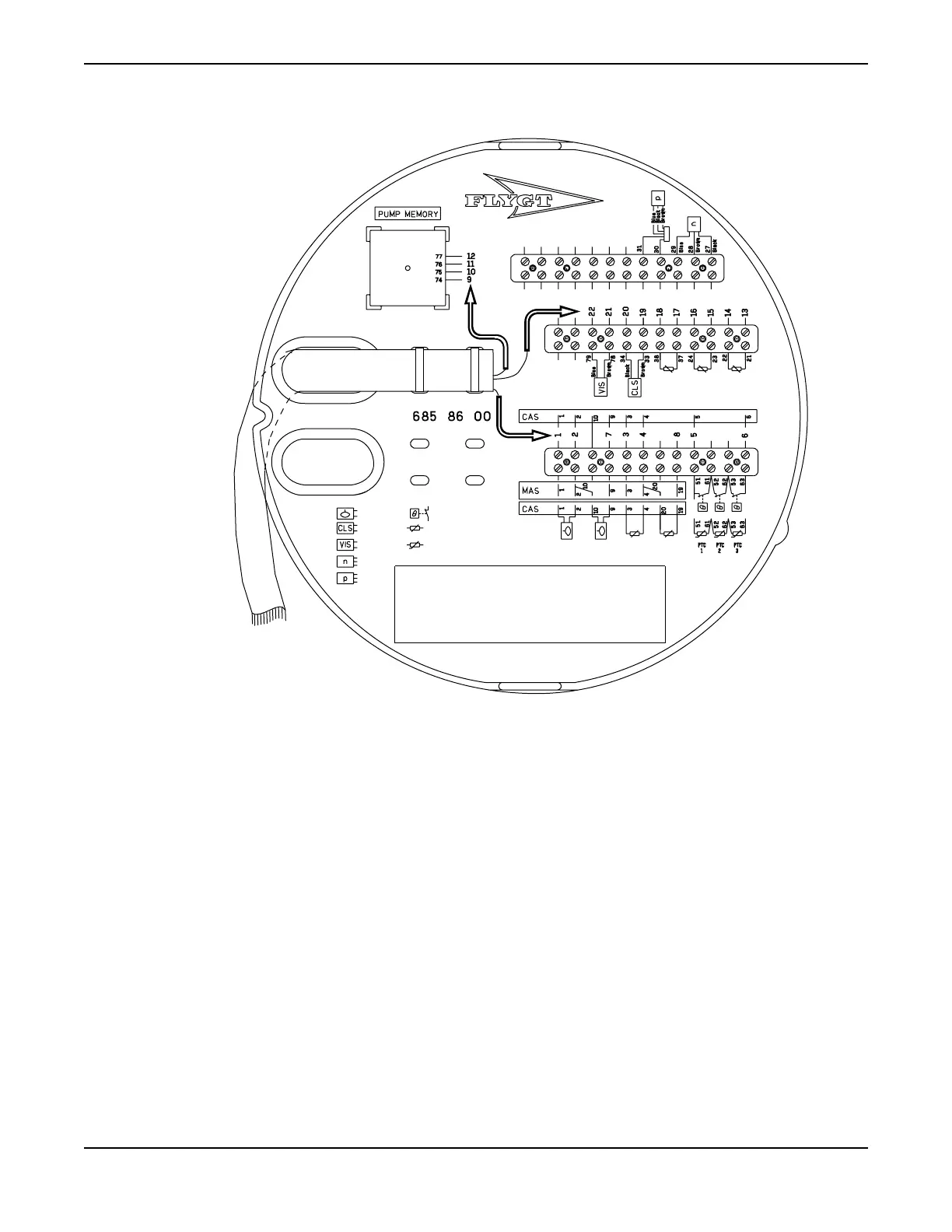

Figure 18: Connections at the pump. Arrows indicate SUBCAB cable lead numbers.
Installation
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
53
