Lift with double-hook equipment (recommended)
1. Fasten a suitable lifting sling/strap to the lifting eye on the top of the drive unit.
See Lifting (page 11).
2. Fasten a sling around the hydraulic unit.
3. Remove the straps securing the pump to the transport pallet.
4. Lift up the pump.
5. Place the pump upright on a rigid horizontal surface so that it cannot fall over.
Install the guide claw (3800 only)
The guide claw is delivered detached from the pump.

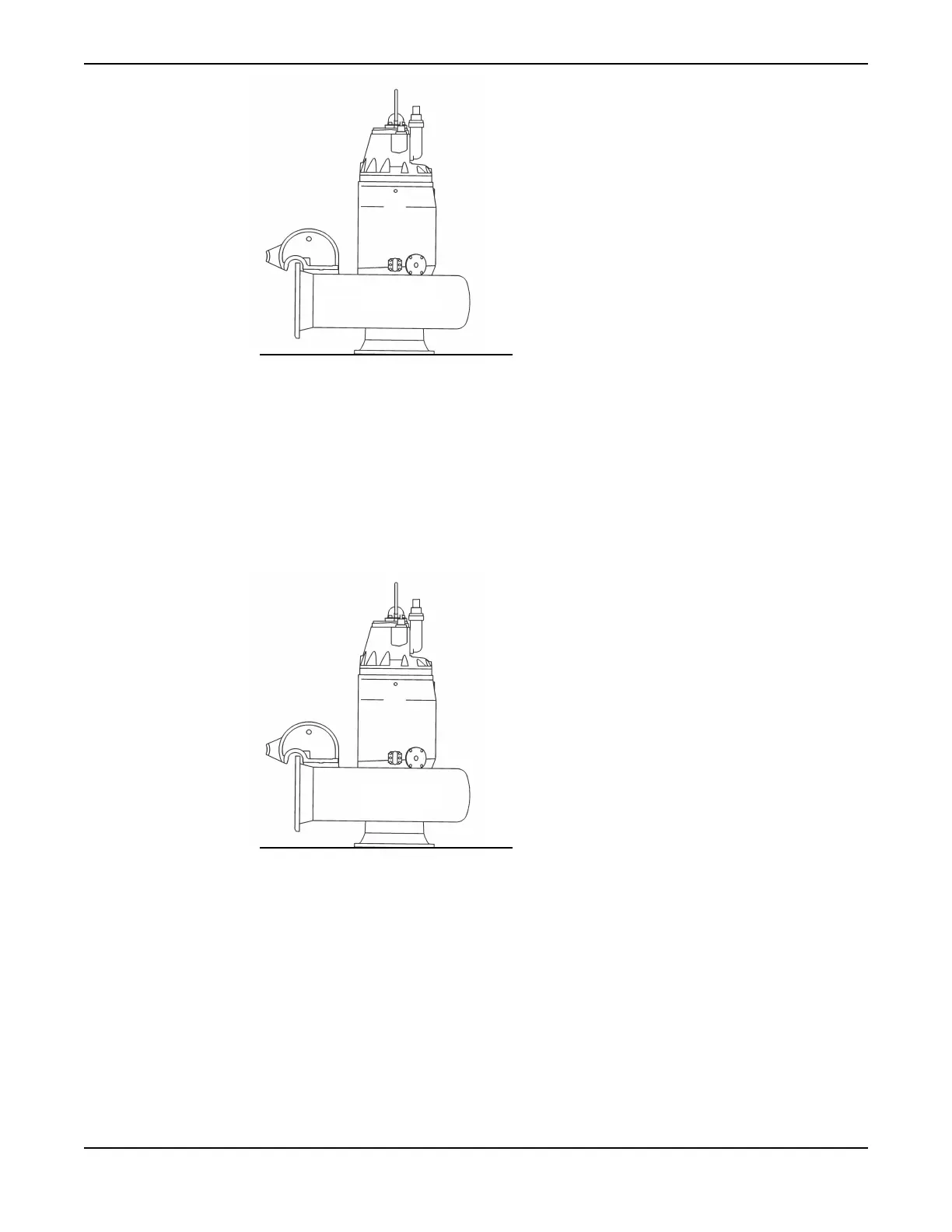

1. Clean the contact surfaces shown with arrows in the figure below.
Transportation and Storage
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
17
