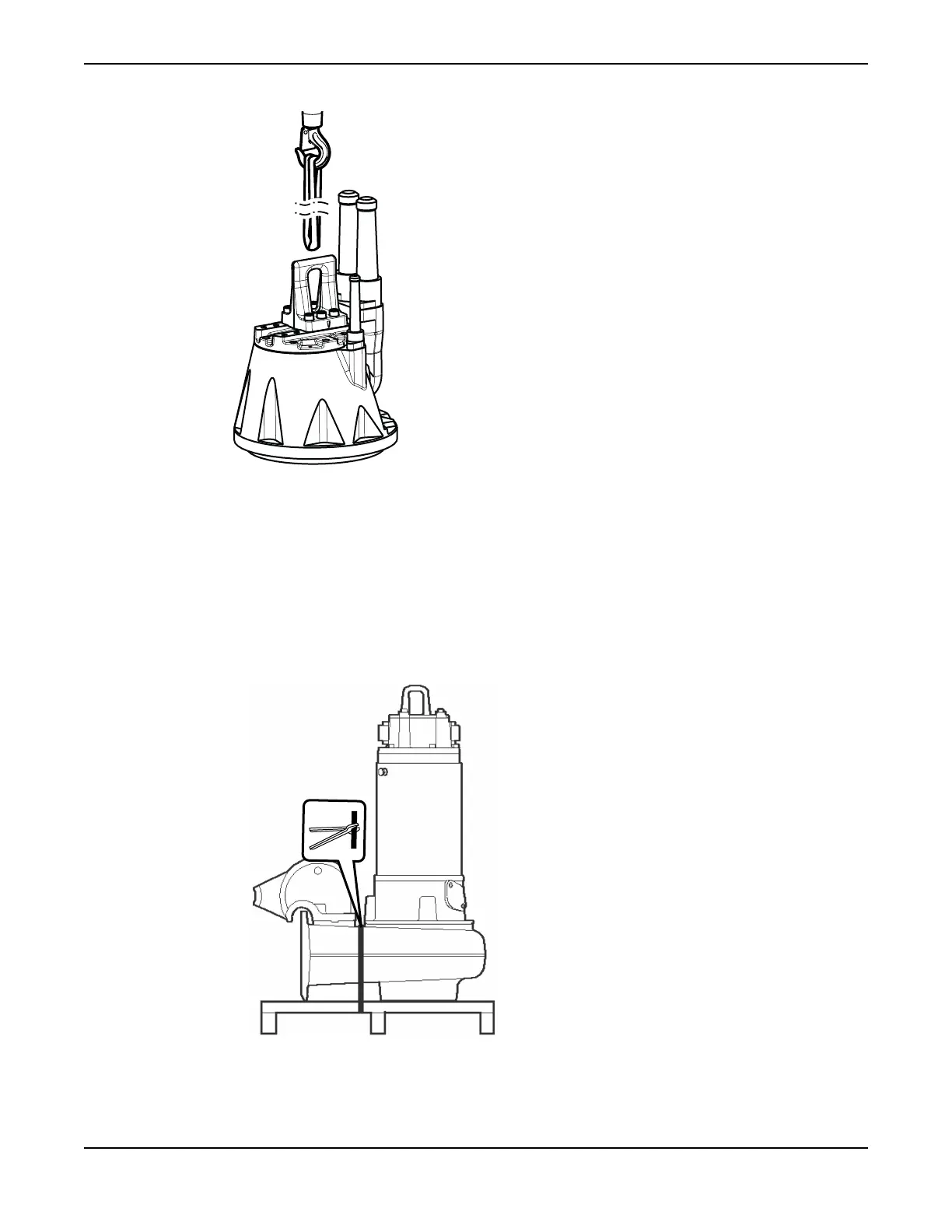

Figure 5: Drive units 805–995
For 805–995 drive units, the lifting link must be positioned so that the complete pump hangs forward with
an incline of 0–2° in relation to the vertical axis.
Lift pump from vertical position and remove transport pallet
1. Fasten a suitable lifting strap/sling to the lifting eye on the top of the drive unit.
See Lifting (page 11).
2. Cut the transportation strap.
3. Lift up the pump using proper lifting equipment.
4. Place the pump upright on a rigid horizontal surface so that it cannot fall over.
Transportation and Storage
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
13
