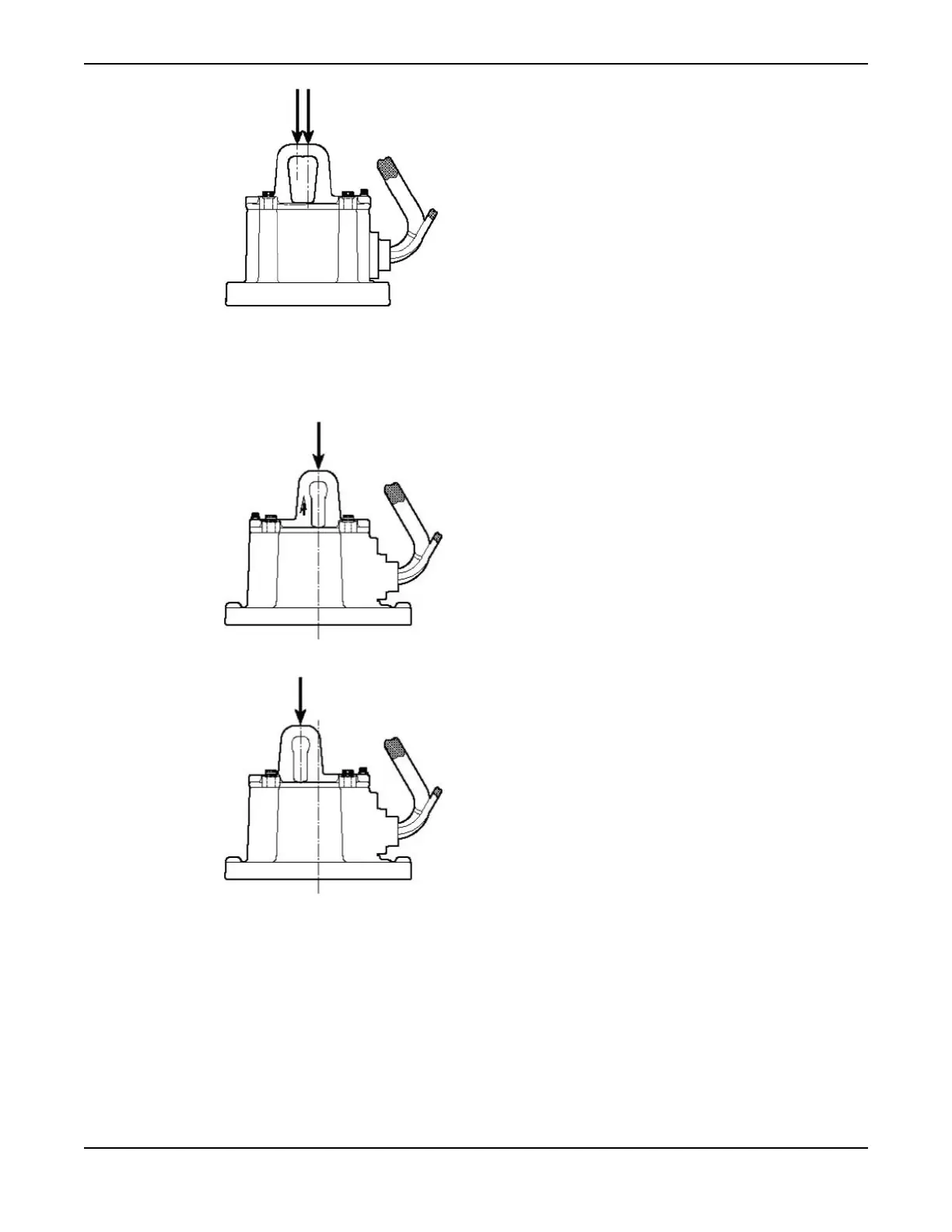

The left arrow indicates placement of the lifting link when lifting the complete pump with 605–675 drive
units. The right arrow indicates placement for lifting the drive unit only.
Figure 3: Drive units 605–675
Placement for lifting drive unit only, or complete pump C3231-C3356, with 705–775 drive units:
Placement for lifting complete pump C3400-C3602, with 705–775 drive units:
Figure 4: Drive units 705–775
When lifting only the drive unit for C3400–C3602 pumps, the lifting cover must be turned 180°.
Transportation and Storage
12 C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
