Pumps with the optional CAS equipment with a 12-lead auxiliary cable are mounted with the following
possible options:
• Leakage sensor in the oil housing (CLS)
• Analogue temperature sensor (Pt100) for support bearing temperature monitoring. (Requires separate
Pt100 relay.)
Pumps with the optional CAS equipment 24-lead auxiliary cable have the same options as for the 12-lead
cable, and two additional analogue temperature sensors (Pt100) for stator winding temperature in 3 phases.
(Requires addtional Pt100 relays.)
The CAS system has been replaced by the MAS system. CAS is no longer available as a spare part, but if
necessary CAS may be replaced by the MAS 711 together with the MRM-01 relay. For more information
see CAS or MAS 711 + MRM-01 sensor connections (page 55).

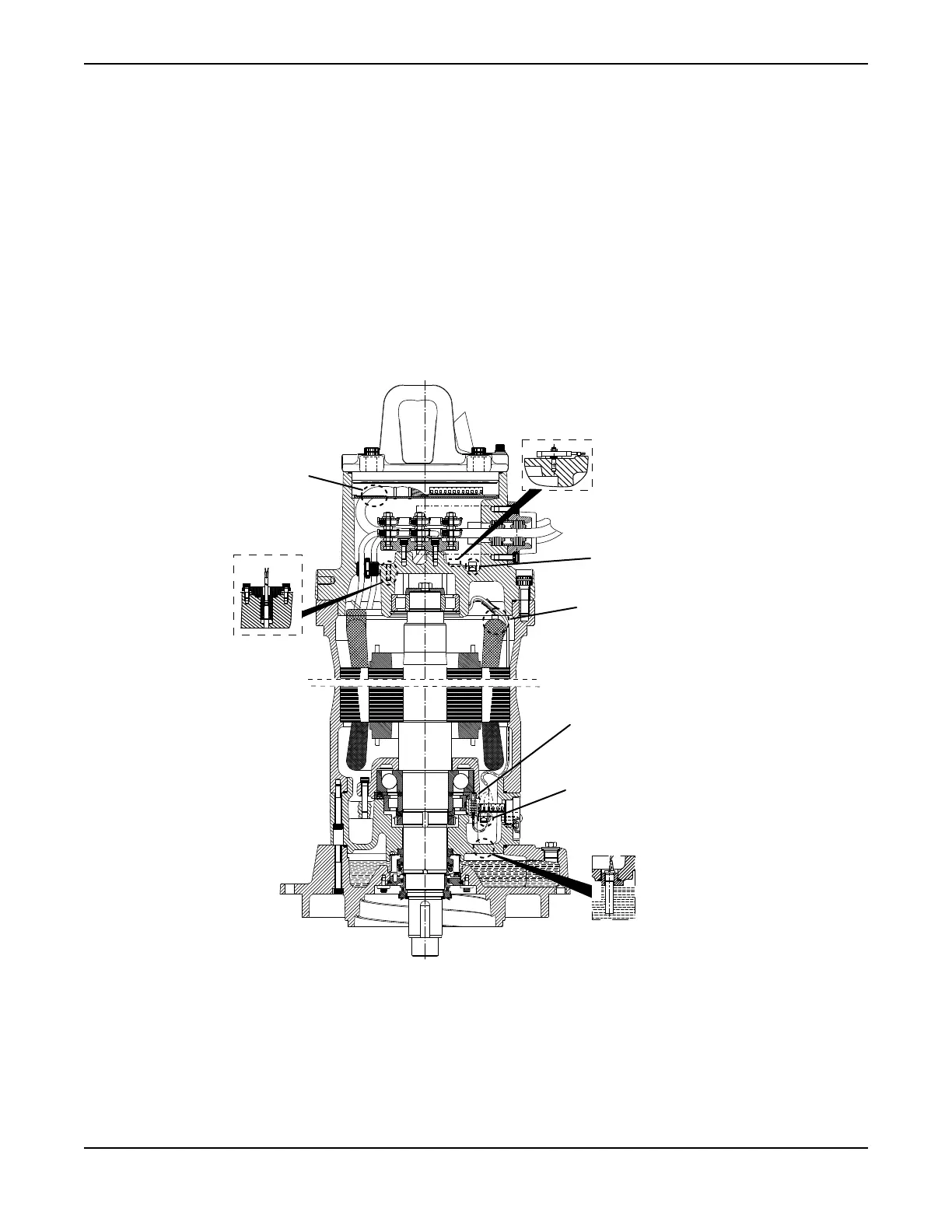

Sensors
6X5 drive units
1. Vibration – VIS 10
2. Leakage in the junction box – FLS, Float Switch Leakage Sensor
3. Stator winding temperature
4. Main bearing temperature – Pt100 analogue temperature sensor
5. Leakage in the stator housing – FLS
6. Water in oil (not available in explosion-proof drive units) – CLS, Capacitive Leakage Sensor
7. Support bearing temperature – Pt100 analogue temperature sensor
8. Pump memory
Product Description
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
