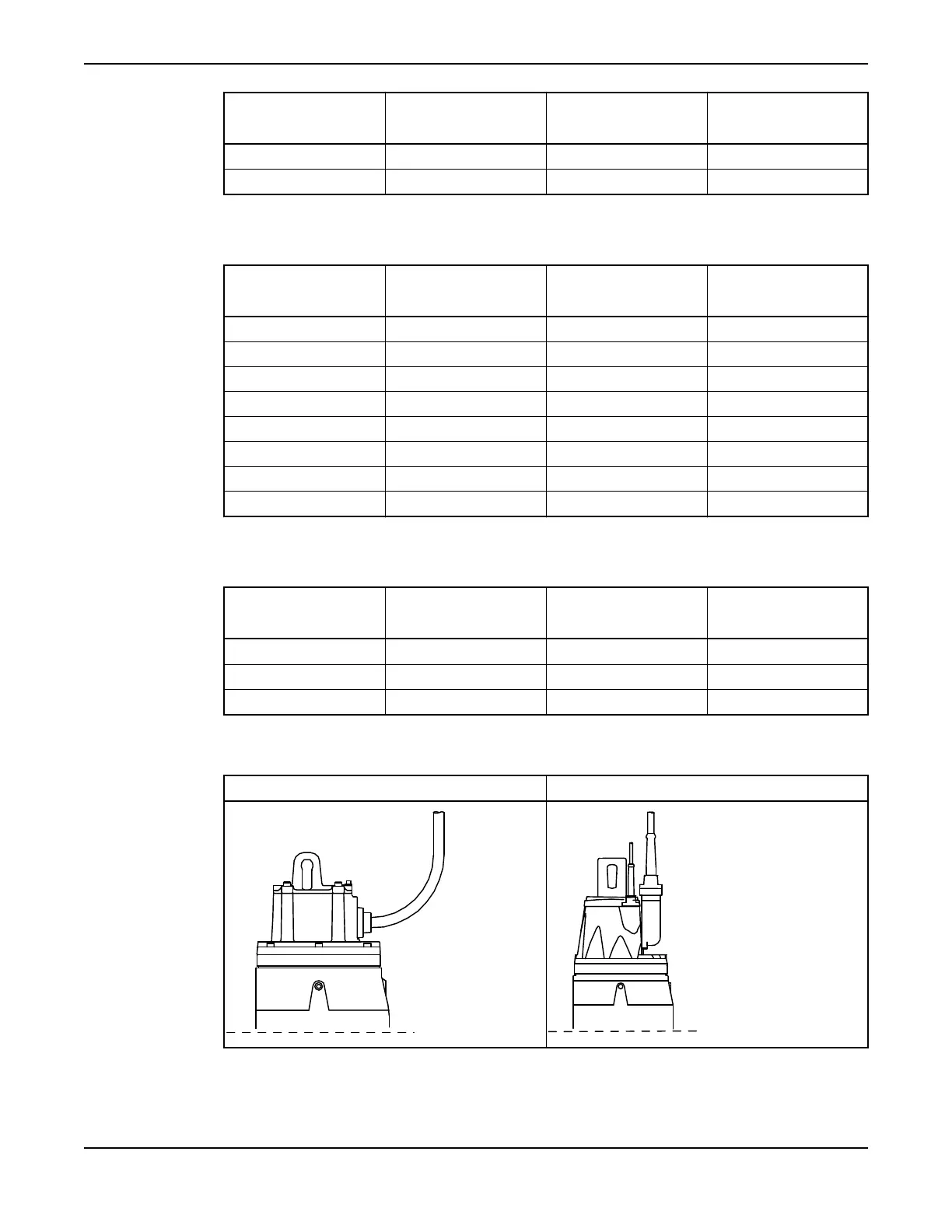

Table 16: SUBCAB AWG power cables
Cable Minimum bending
radius in mm
Weight in kg/m Outer diameter,
minimum-maximum in
mm
4AWG/3-2-1-GC 320 2.0 Ø 32.8–34.8
1AWG/3-2-1-GC 400 3.5 Ø 40.7–42.7
This table shows the minimum bending radius, weight and outer diameter for Screened SUBCAB
®
cables
(for VFD operation).
Table 17: Screened SUBCAB cables
Cable Minimum bending
radius in mm
Weight in kg/m Outer diameter,
minimum-maximum in
mm
S3x16+3x16/3+4x1.5 320 1.5 Ø 29.0–32.0
S3x25+3x16/3+4x1.5 330 1.6 Ø 30.0–33.0
S3x35+3x16/3+4x1.5 350 2.1 Ø 32.0–35.0
S3x50+3x25/3+4x1.5 420 3 Ø 38.0–42.0
S3x70+3x35/3+4x1.5 460 4 Ø 42.0–46.0
S3x95+3x50/3+4x1.5 530 5 Ø 49.0–53.0
S3x120+3x70/3+4x1.5 560 6 Ø 52.0–56.0
S3x185+3x95/3+4x1.5 670 9.5 Ø 65.0–69.0
This table shows the minimum bending radius, weight and outer diameter for HSP NTSCGEWTOEUS
1.2–10 kV cables.
Table 18: HSP NTSCGEWTOEUS 1.2–10 kV
Cable Minimum bending
radius in mm
Weight in kg/m Outer diameter,
minimum-maximum in
mm
3x25+3x25/3 385 3.32 Ø 46.4–49.4
3x35+3x25/3 410 3.81 Ø 49.0–52.0
3x50+3x25/3 450 4.78 Ø 54.0–58.0
Connection houses (junction boxes) in 7X5 drive units
This table shows the large and small connection houses (junction boxes) for 7X5 drive units.
Small connection housing
Large connection housing
Prepare the medium-voltage cable
This instruction is for preparing medium voltage (1.2-10 kV) power cables prior to connecting them at the
pump.
Installation
66 C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
