L2
L1 L2 L3
L3L1
WS000578A
1
2
3
4
5

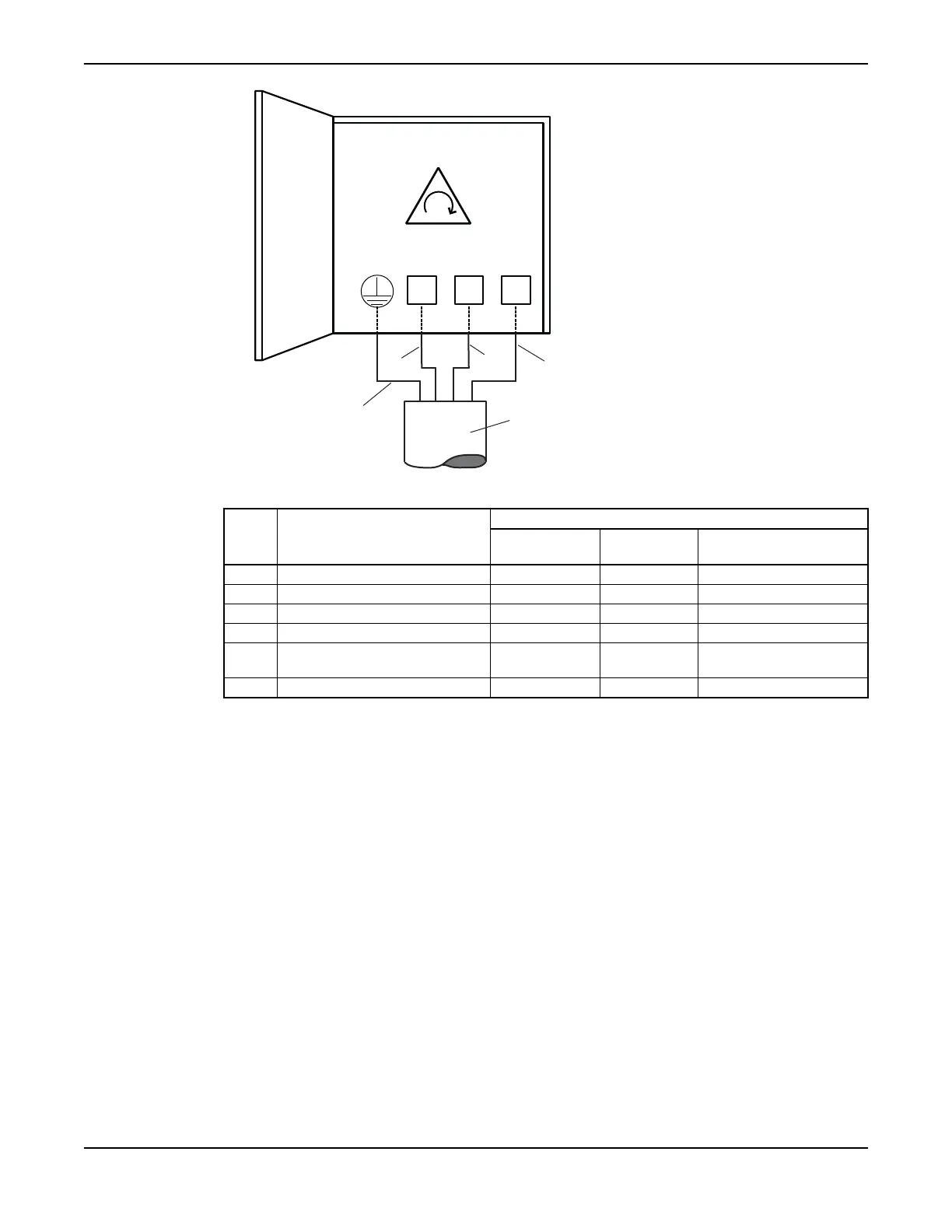

Figure 17: Correct phase sequence
Item Description
Color of cable lead
SUBCAB
SUBCAB
AWG
NTSCGEWTOEUS
(marking on lead)
1 L1 cable lead Brown Red Black (L1)
2 L2 cable lead Black Black Black (L2)
3 L3 cable lead Grey White Black (L3)
4 Earth PE or ground cable lead Green/Yellow Green/Yellow Green/Yellow
Not
shown
Ground check GC cable lead — Yellow —
5 Power cable to pump
Installation
52 C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
