WS000481A
GPM
Q
H

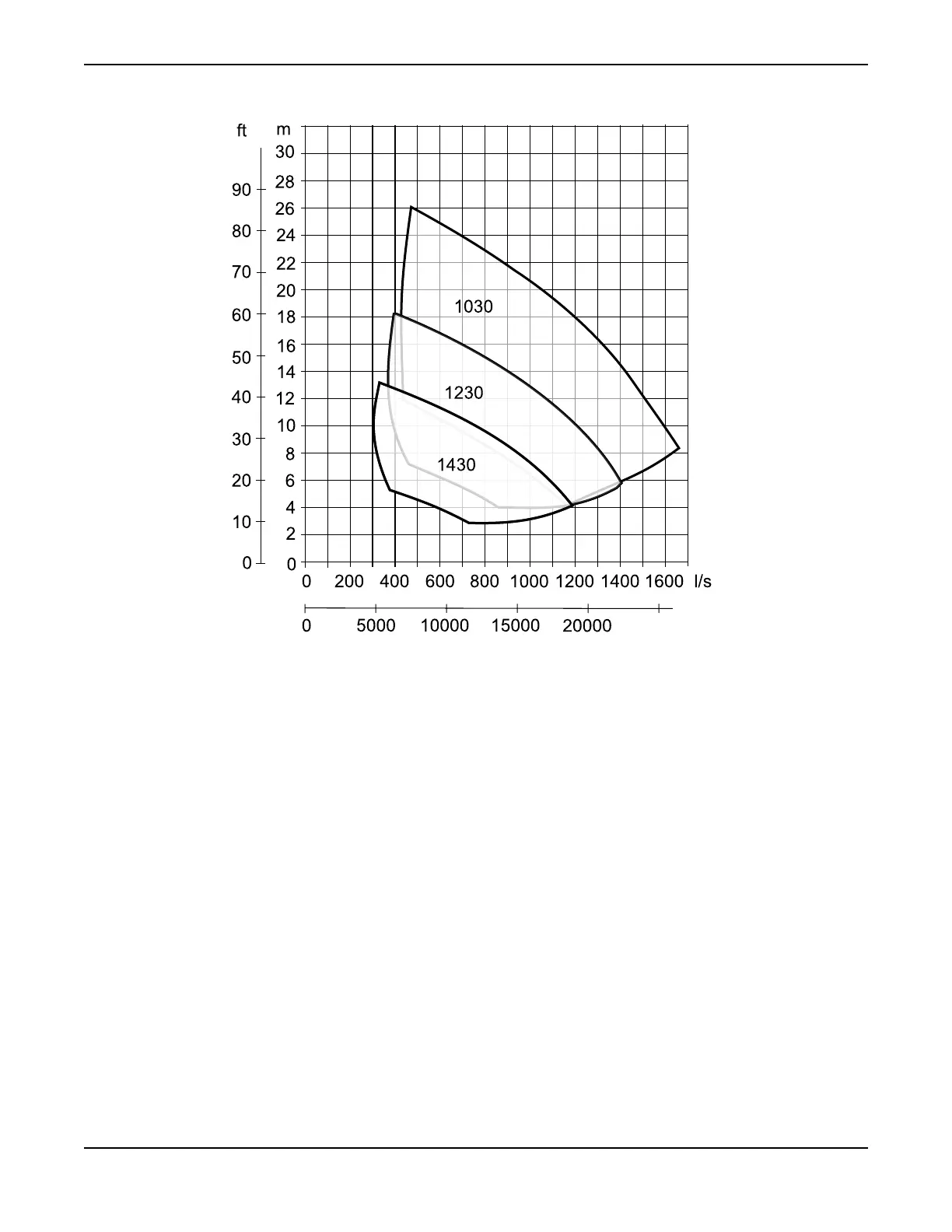

Figure 86: C3501, 60 Hz, medium voltage
C3501 Motor rating and performance, 60 Hz
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
155
