Relay module MAR311
R1
R3 R4
Local
TD RD
R1
A B GoPower
Local
TD RD
Ext. 1
TD RD
Ethernet
Link LAN
Ext. 2
TD RD
Power
Monitoring And Status MAS711
Relay module MRM01
26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
2
9
10
1
5
3
4
6
WS000450A

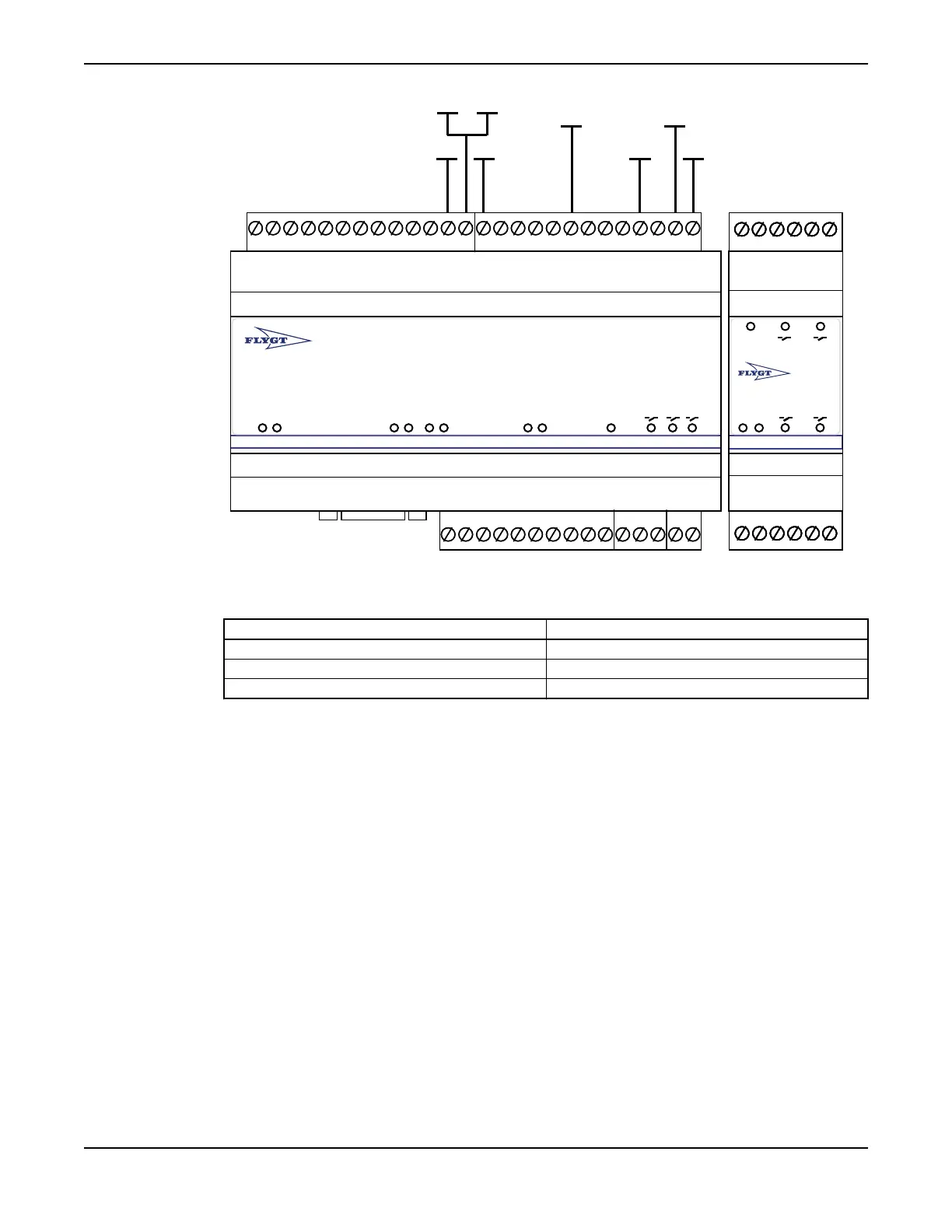

Figure 21: Connections at the MAS 711 + MRM-01 base units
Description Part number
Unit, MAS 711 and MRM-01 40 50 15 45
MAS 711 40 50 11 41
MRM-01 40 50 15 36
CAS-connected pumps
The CAS system is no longer available as a spare part.
This section provides connection diagrams for replacement pumps at stations equipped with a functioning
CAS monitoring system.
Installation
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
57
