23

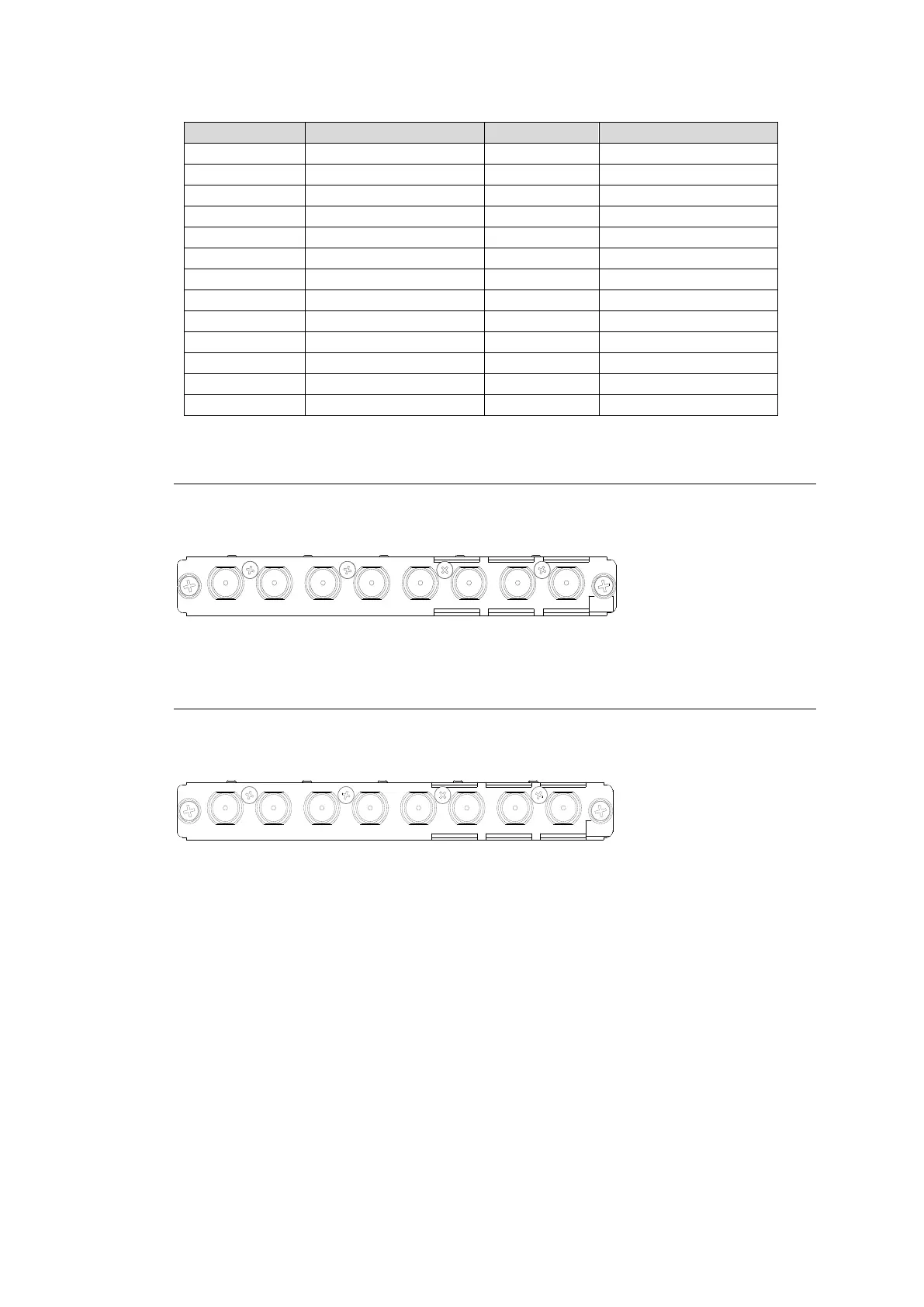

Channels 9 to 16
Pin No.
Setting
Pin No.
Setting
13
CH9+
25
CH9 COM
12
CH9-
24
CH10+
11
CH10 COM
23
CH10-
10
CH11+
22
CH11 COM
9
CH11-
21
CH12+
8
CH12 COM
20
CH12-
7
CH13+
19
CH13 COM
6
CH13-
18
CH14+
5
CH14 COM
17
CH14-
4
CH15+
16
CH15 COM
3
CH15-
15
CH16+
2
CH16 COM
14
CH16-
1
SG
-
-
2-4-3. MFR-8AESI (AES/EBU Input)
MFR-8AESI is a digital audio input card.
Up to 8 cards can be installed into Slot No. 01 to 08.
See Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel."
BNC x 8 inputs (8 stereo pairs, 16 channels), unbalanced, 75-ohm
2-4-4. MFR-8AESO (AES/EBU Output)
MFR-8AESO is a digital audio output card.
Up to 9 cards can be installed into Slot No. 09 to 17.
See Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel."
BNC x 8 outputs (8 stereo pairs, 16 channels), unbalanced, 75-ohm
9/10
7/8
5/6
1/2
3/4
11/12
13/14
15/16
1
AESI
9/10
7/8
5/6
3/4.
1/2
11/12
13/14
15/16
1
AESO
