53

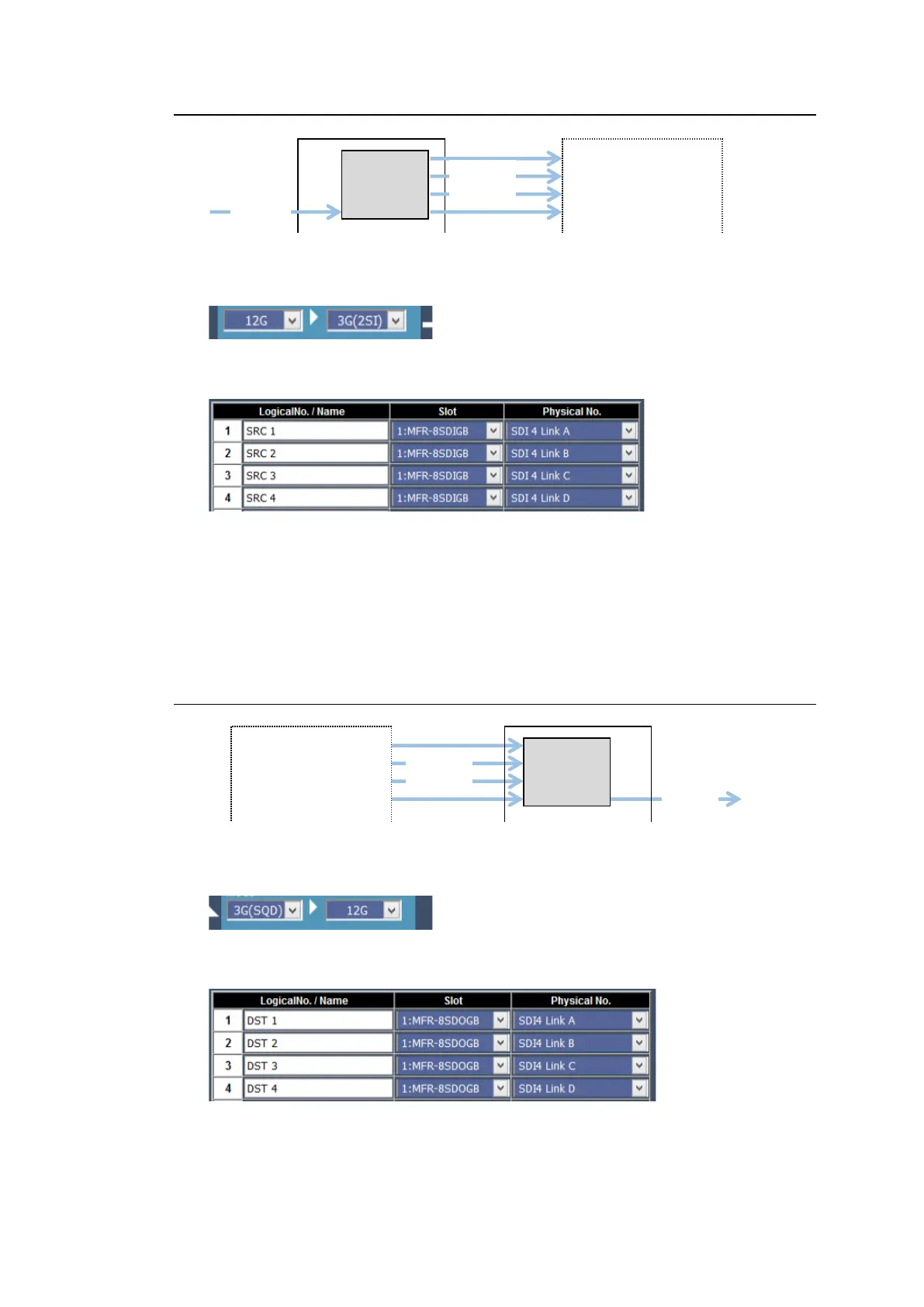

5-3-3. Converting 12G-SDI Input to 3G-SDI 2SI (MFR-8SDIGB)
1) Open the Gearbox Settings page in the Web GUI and select signal formats under From
and To as shown below for a Gearbox in the MFR-8SDIGB card block. (This example
sets Gearbox 1 on the Slot 1 card.)
2) Open the Source Assignment page in the Web GUI and assign the physical channels
(SDI 4 Link A to D) to logical channels (SRC 1-4).
* Four channel assignments are required for 12G-SDI signals in the same manner as
for Quad-Link 3G-SDI signals.
3) Use a remote control unit or the Crosspoint page in the Web GUI to perform the crosspoint
switches.
5-3-4. Converting 3G-SDI SQD to 12G-SDI Output (MFR-
8SDOGB)
1) Open the Gearbox Settings page in the Web GUI and select signal formats under From
and To as shown below for a Gearbox in the MFR-8SDOGB card block. (This example
sets Gearbox 1 on the Slot 9 card.)
2) Open the Destination Assignment page in the Web GUI and assign the physical
channels (SDI 4 Link A to D) to logical channels (DST 1-4).
* Four channel assignments are required for 12G-SDI signals in the same manner as
for Quad-Link 3G-SDI signals.
3) Use a remote control unit or the Crosspoint page in the Web GUI to perform the crosspoint
switches.
MFR-8SDIGB
MFR-3100EX
routing
Gearbox 1
12G-SDI
Quad Link
3G-SDI
(2SI)
1A
1B
1D
1C
MFR-8SDOGB
MFR-3100EX
routing
Gearbox 1
Quad Link
3G-SDI
(SQD)
12G-SDI
1A
1B
1C
1D
