4. Multiview Output
The MFR-16MV card allows you to provide multiview images from any of 16 outputs. Multiview images
can display up to 16 video windows and two clocks, which can be placed on a single MV channel or on
two MV channels by dividing MV windows and clocks.

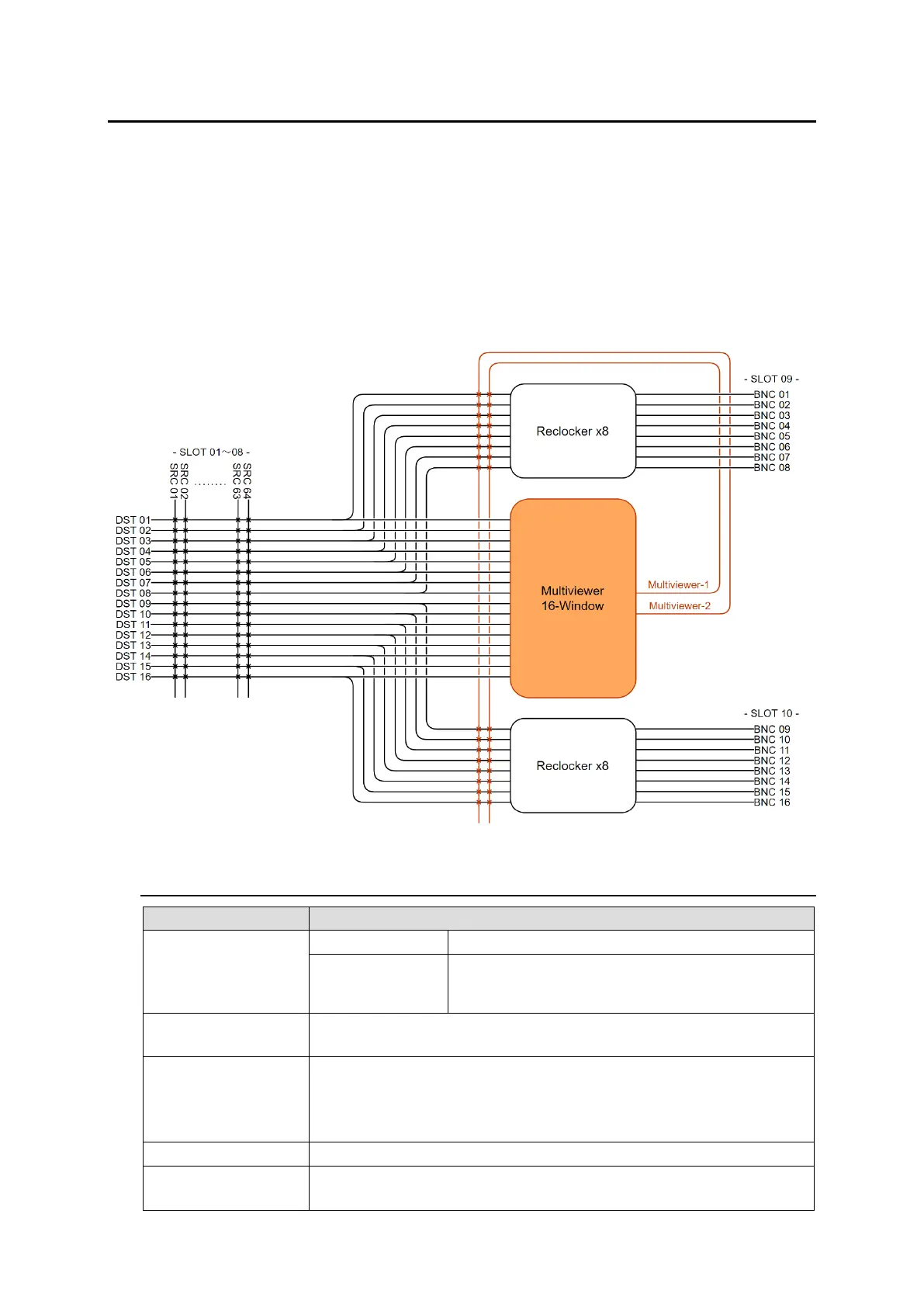

Process Block Diagram
Any destination channels can be assigned to video windows of MV channel(s) and any source channels
can be selected through destination channels. Therefore, multiview images can display any router
source channels. In addition, MFR-16MV allows you to display individual destination channel images as
well as multiview images. (The figure below shows an example when an MFR-16MV is installed in Slot
9.)
4-1. Multiviewer Specifications
Item
Specifications
Video format
3Gbps (Level-A)
1080/60p, 59.94p, 50p
1.5Gbps (HD)
1080/60i, 59.94i, 50i, 720/60p, 59.94p, 50p,
1080/30p, 29.97p, 25p, 24p, 23.98p,
1080/30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF
Video output
SDI 75-ohm BNC x 16
Selectable from MV OUT1, MV OUT2 or DST channel
Audio output
(Except MV outputs)
Embedded (SDI)
- Group x 4, 8 stereo pairs
- Sampling frequency: 48kHz
- Bit depth: 24bit
Input/output delay
1 frame (with synchronous inputs)
MV objects
16 video windows (selectable from all destination channels)
2 clocks (selectable from 10 types)
