37
3-3. Signal Name and Tally Link System
3-3-1. Standard Configuration

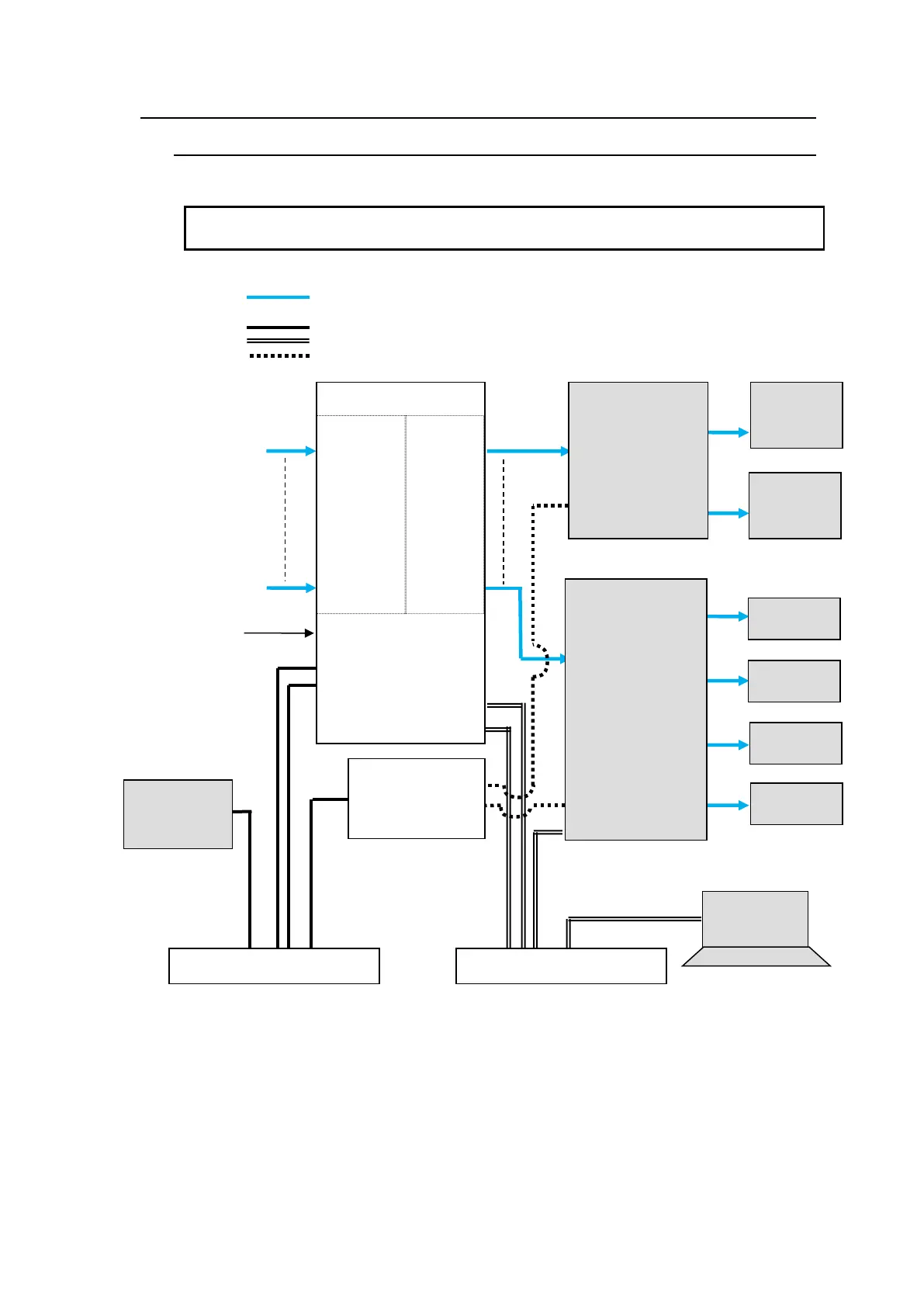

The block diagram below shows a basic signal name and tally link system.
To connect a video switcher via serial connection, use SERIAL1-4 on MFR-GPI. The signal
name and tally link system require an RS-422 interface.
VIDEO(SDI)
LAN
(MFR-LAN)
LAN (PC LAN)
RS-422
MFR-LAN1(31CPU)
MFR-LAN2(3100EX)
PC-LAN1(31CPU)
SERIAL 2
SDI signals
SDI signals
REF IN
MFR-3100EX
MFR-8SDI
IN1
|
|
|
|
I
|
|
I
|
IN64
MFR-8SDO
OUT1
|
|
|
|
I
|
I
|
|
OUT72
PC
MFR Web-based Control
MV Layout Editor
MFR-GPI
Video Switcher
(HVS-4000)
Multi Viewer
(MV-3200)
RS-422
PGM
Monitor
PRV
Monitor
DVI
DVI
MV
Monitor
MV
Monitor
DVI
MV
Monitor
DVI
MV
Monitor
SDI
SDI
Ethernet Hub (MFR-LAN)
Ethernet Hub (PC-LAN)
SERIAL
LAN
MFR-xxRU
SERIAL 1
PC-LAN2(3100EX)
