FOR-A MFR-3000 User Manual

33

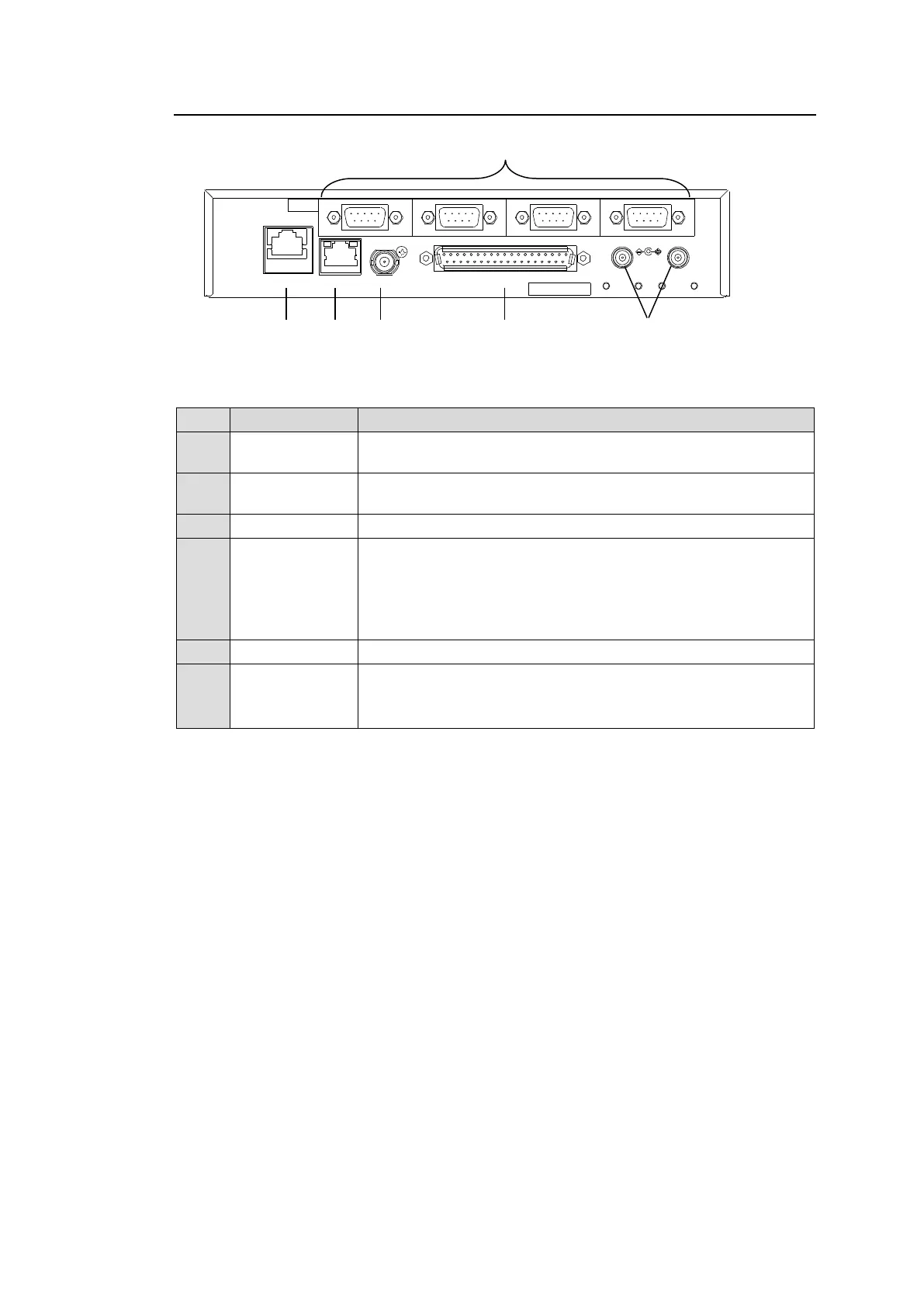

2-6-2. Rear Panel
Char.
Item
Description
A
PC-LAN
Ethernet port for connection to PC or other external unit
(10/100BASE-TX, RJ-45)
B
MFR-LAN
Ethernet port for connection to MFR main unit
(10/100/1000BASE-T, RJ-45)
C
REF IN
Used to input a reference signal (BB or Tri-level sync signal)
D
GPI
Used to input/output GPI signals for external control.
(32 total assignable inputs and outputs)
Pin assignments are the same as those of the MFR-GPI
connectors.
► See Sec. 2-5-3. "Interfaces."
E
DC 12 V IN 1,2
Used to supply 12 V DC power.
F
RS-422 1-4
Used for RS-422 interface control.
Pin assignments are the same as those of the MFR main unit.
► See Sec. 2-5-3. "Interfaces."
SER. NO.
2
4
3
21
GPIREF INMFR-LANPC-LAN
1
DC12V IN
RS-422
A
E
F
B
C
D
