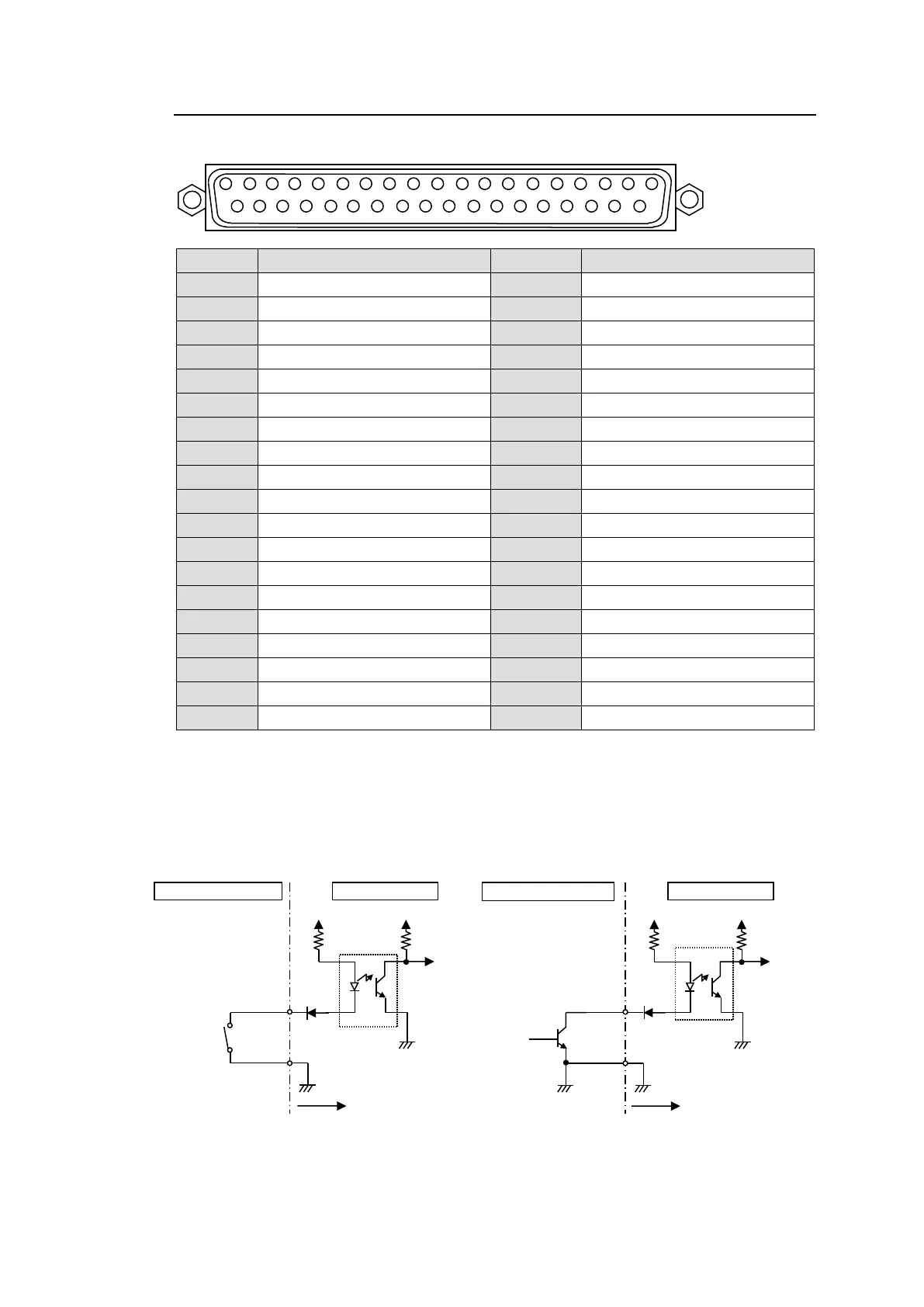

2-5-3. Interfaces
◆ GPI IN / TALLY OUT Connector (37-pin D-sub, female)
Pin No.
Signal
Pin No.
Signal
1
GPI_IN / TALLY_OUT # - 01
20
GPI_IN / TALLY_OUT # - 20
2
GPI_IN / TALLY_OUT # - 02
21
GPI_IN / TALLY_OUT # - 21
3
GPI_IN / TALLY_OUT # - 03
22
GPI_IN / TALLY_OUT # - 22
4
GPI_IN / TALLY_OUT # - 04
23
GPI_IN / TALLY_OUT # - 23
5
GPI_IN / TALLY_OUT # - 05
24
GPI_IN / TALLY_OUT # - 24
6
GPI_IN / TALLY_OUT # - 06
25
GPI_IN / TALLY_OUT # - 25
7
GPI_IN / TALLY_OUT # - 07
26
GPI_IN / TALLY_OUT # - 26
8
GPI_IN / TALLY_OUT # - 08
27
GPI_IN / TALLY_OUT # - 27
9
GPI_IN / TALLY_OUT # - 09
28
GPI_IN / TALLY_OUT # - 28
10
GPI_IN / TALLY_OUT # - 10
29
GPI_IN / TALLY_OUT # - 29
11
GPI_IN / TALLY_OUT # - 11
30
GPI_IN / TALLY_OUT # - 30
12
GPI_IN / TALLY_OUT # - 12
31
GPI_IN / TALLY_OUT # - 31
13
GPI_IN / TALLY_OUT # - 13
32
GPI_IN / TALLY_OUT # - 32
14
GPI_IN / TALLY_OUT # - 14
33
Frame ground
15
GPI_IN / TALLY_OUT # - 15
34
Frame ground
16
GPI_IN / TALLY_OUT # - 16
35
Frame ground
17
GPI_IN / TALLY_OUT # - 17
36
+4.8V output
18
GPI_IN / TALLY_OUT # - 18
37
+4.8V output
19
GPI_IN / TALLY_OUT # - 19
* The symbol "#" at the end of signals represents the port number (1, 2, 3 or 4).
* The maximum total output current for all +4.8 V outputs is 1.5 A.
* The GPI input pulse width should be 54 ms or more.
◆ GPI IN Circuits
MFR-GPI
VCC
VCC
External device
Switch or relay
MFR-GPI
VCC
VCC
External device
Open Collector
2
3
1
5
4
6
10
11
12
13
7
8
9
21
22
23
24
25
26
27
14
15
16
17
18
19
28
29
30
31
20
37
36
35
34
33
32
