3. System Configuration Example
3-1. Basic Configuration

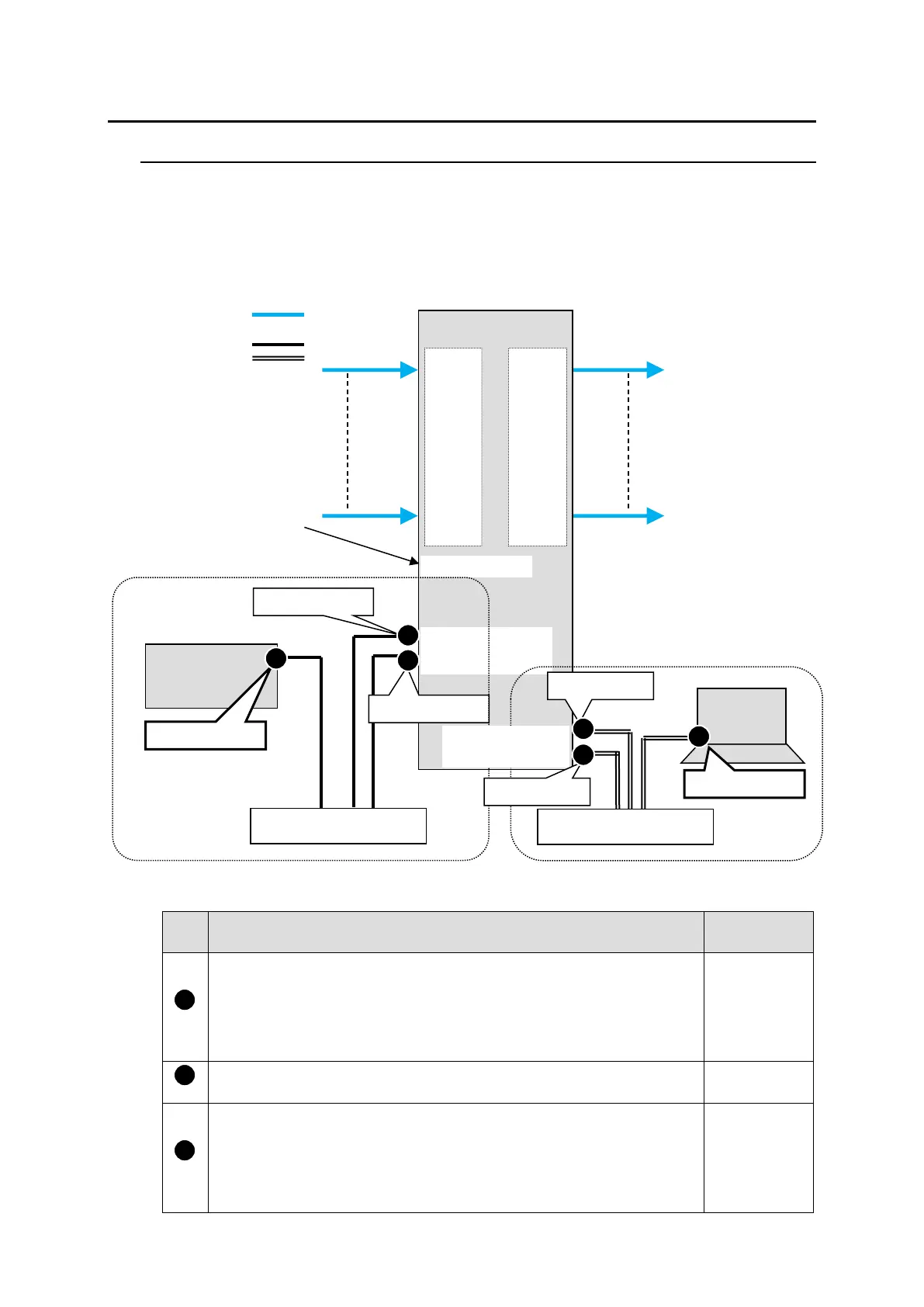

The block diagram below shows an example of the basic MFR routing system that consists of an
MFR-3100EX, Remote Unit and the Web-based Control accessed from a computer.
Make sure to connect both MFR-LAN1 (MFR-31CPU) and MFR-LAN2 (MFR-3100EX) to a LAN
respectively for CPU redundancy. Their LAN connections must be separated from the network
segment of PC-LAN and other devices. (Default IP addresses (Net mask: 255.255.255.0) are used
in the configuration example below.)
◆ LAN Port Settings
Port
RU Front Panel
(Sec. in MFR-RU Series Operation Manual)
Web-based
Control
MFR-39RUA: “Setting Mode Menu (MFR-39RUA)”
MFR-18RUA: “Setup Menu (MFR-18RUA)”
MFR-16RUTA: “Setup Menu (MFR-16RUTA)”
MFR-8RUA: “Setup Menu (MFR-8RUA)”
Other RUs: “Setup Menu (MFR-16/40RU, MFR-16RUD,
MFR-16/32/64RUW)”
RU Settings
page
---
MU Settings
page
MFR-39RUA: “Setting Mode Menu (MFR-39RUA)” (Display only)
MFR-18RUA: “Setup Menu (MFR-18RUA)” (Display only)
MFR-16RUTA: “Setup Menu (MFR-16RUTA)” (Display only)
MFR-8RUA: “Setup Menu (MFR-8RUA)” (Display only)
Other RUs: “Setup Menu (MFR-16RU/40RU, MFR-16RUD,
MFR-16/32/64RUW)”(Display only)
Network
Settings
page
1
2
3
MFR-LAN1(31CPU)
MFR-LAN2(3100EX)
MFR-xxRU
SDI signals
SDI signals
REF IN
MFR-3100EX
IN1
|
|
|
|
I
|
|
I
|
|
IN64
OUT1
|
|
|
|
I
|
I
|
|
I
OUT72
Ethernet Hub (MFR-LAN)
BB
VIDEO(SDI)
LAN
(MFR-LAN)
LAN (PC LAN)
192.168.1.10
MFR-LAN
192.168.1.11
192.168.1.XX
Ethernet Hub (PC-LAN)
192.168.0.XX
PC-LAN
PC-LAN1(31CPU)
192.168.0.13
PC
MFR
Web-based
Control
192.168.0.12
PC-LAN2(3100EX)
4
2
1
3
2
3
