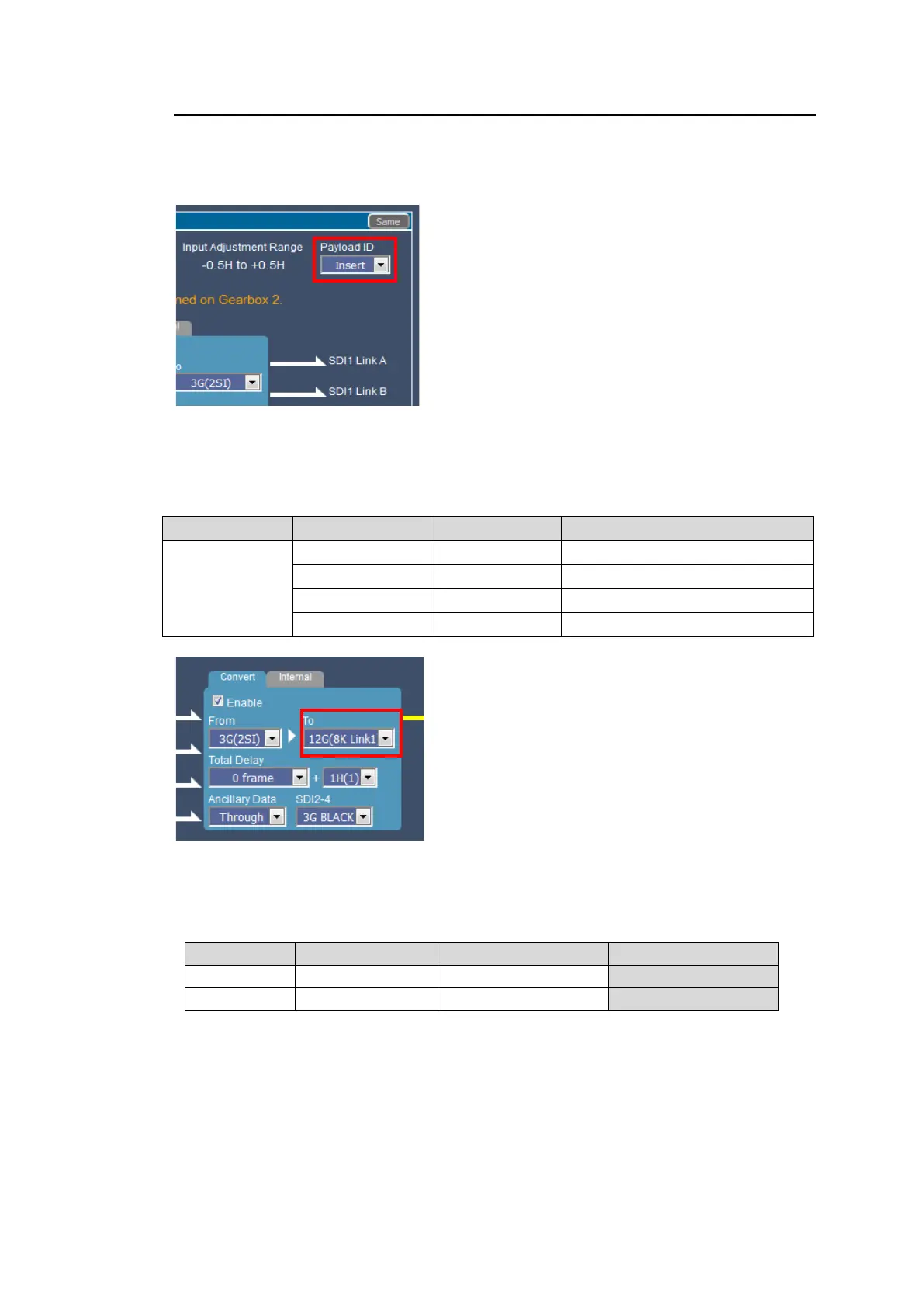

5-3-5. Payload ID
Adding Payload ID information to Output Signals.
Select Payload ID information source for output signals.
Insert: Data created for output signals.
Through: Data embedded to input signals.
Adding 8K Quad-Link Payload ID Information.
When converting 3G Quad-Link to 12G-SDI, Payload ID information for 8K Quad-Link (In
compliance with SMPTE 2082-12) is able to be added to 12G-SDI output. Set as shown below.
From
To
Payload ID
Payload ID Information to Be Added
3G Quad-Link
(2SI or SQD)
12G(8K Link1)
Insert
8K Quad-Link, Link1
12G(8K Link2)
Insert
8K Quad-Link, Link2
12G(8K Link3)
Insert
8K Quad-Link, Link3
12G(8K Link4)
Insert
8K Quad-Link, Link4
When adding 8K Quad-Link Payload ID information to Gearbox 1, make sure to also add the
information to Gearbox 2 as shown below. Use different Link Numbers.
Ex.)
Gearbox
From
To (Yes)
To (No)
GB1
3G(SQD)
12G(8K Link1)
12G
GB2
3G(2SI)
12G(8K Link2)
12G(8K Link2)
