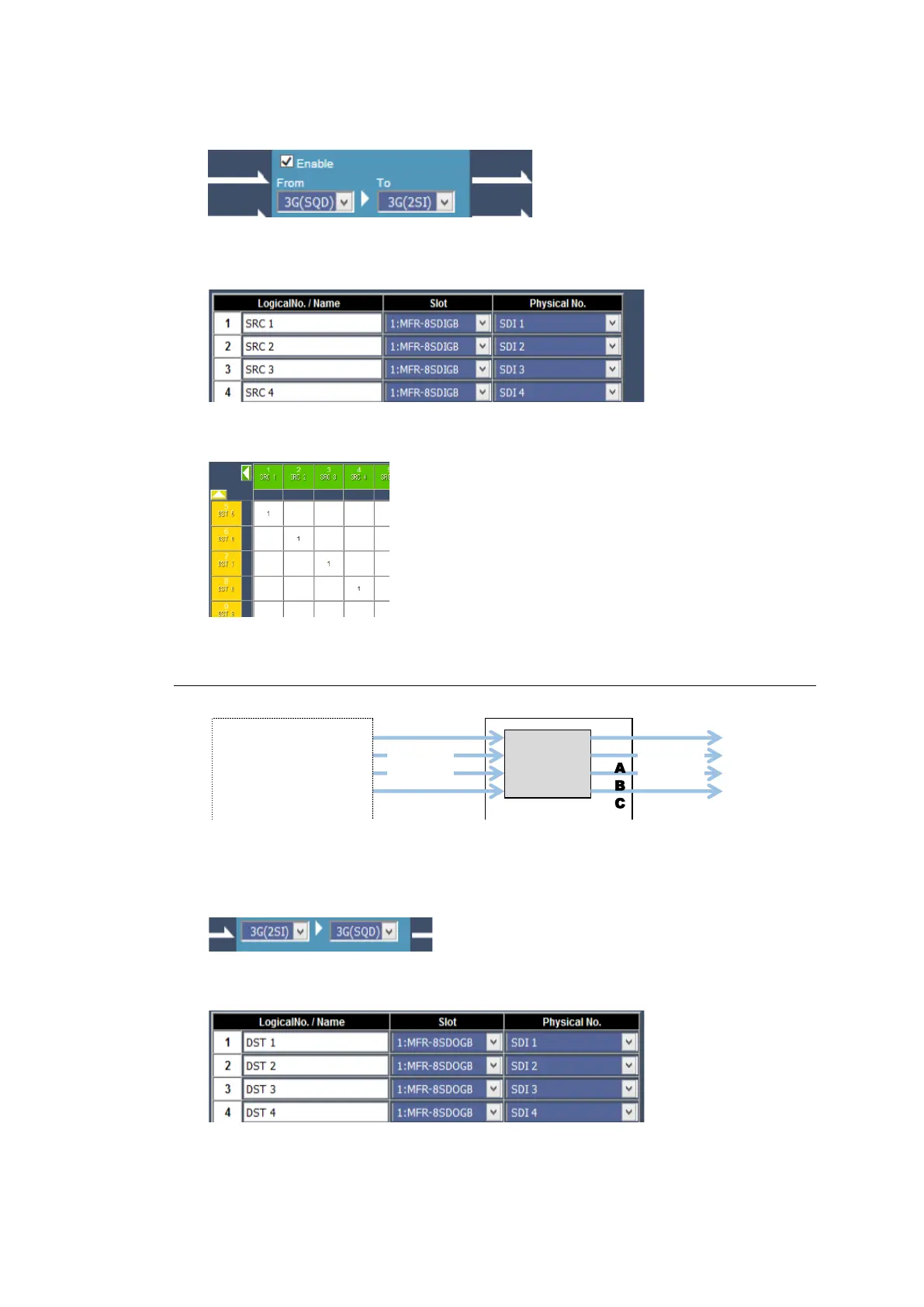

1) Open the Gearbox Settings page in the Web GUI and select signal formats under From
and To as shown below for a Gearbox in the MFR-8SDIGB card block. (This example
sets Gearbox 1 on the Slot 1 card.)
2) Open the Source Assignment page in the Web GUI and assign the physical channels
(SDI 1-4) to logical channels (SRC 1-4).
3) Use a remote control unit or the Crosspoint page in the Web GUI to assign output
channels to SRC 1-4.
5-3-2. Converting 2SI to SQD Output (MFR-8SDOGB)
1) Open the Gearbox Settings page in the Web GUI and select signal formats under From
and To as shown below for a Gearbox in the MFR-8SDOGB card block. (This example
sets Gearbox 1 on the Slot 9 card.)
2) Open the Destination Assignment page in the Web GUI and assign the physical
channels (SDI 1-4) to logical channels (DST 1-4).
3) Use a remote control unit or the Crosspoint page in the Web GUI to assign input channels
to DST 1-4.
