39
3-3-2. If Configuring an MFR-TALM

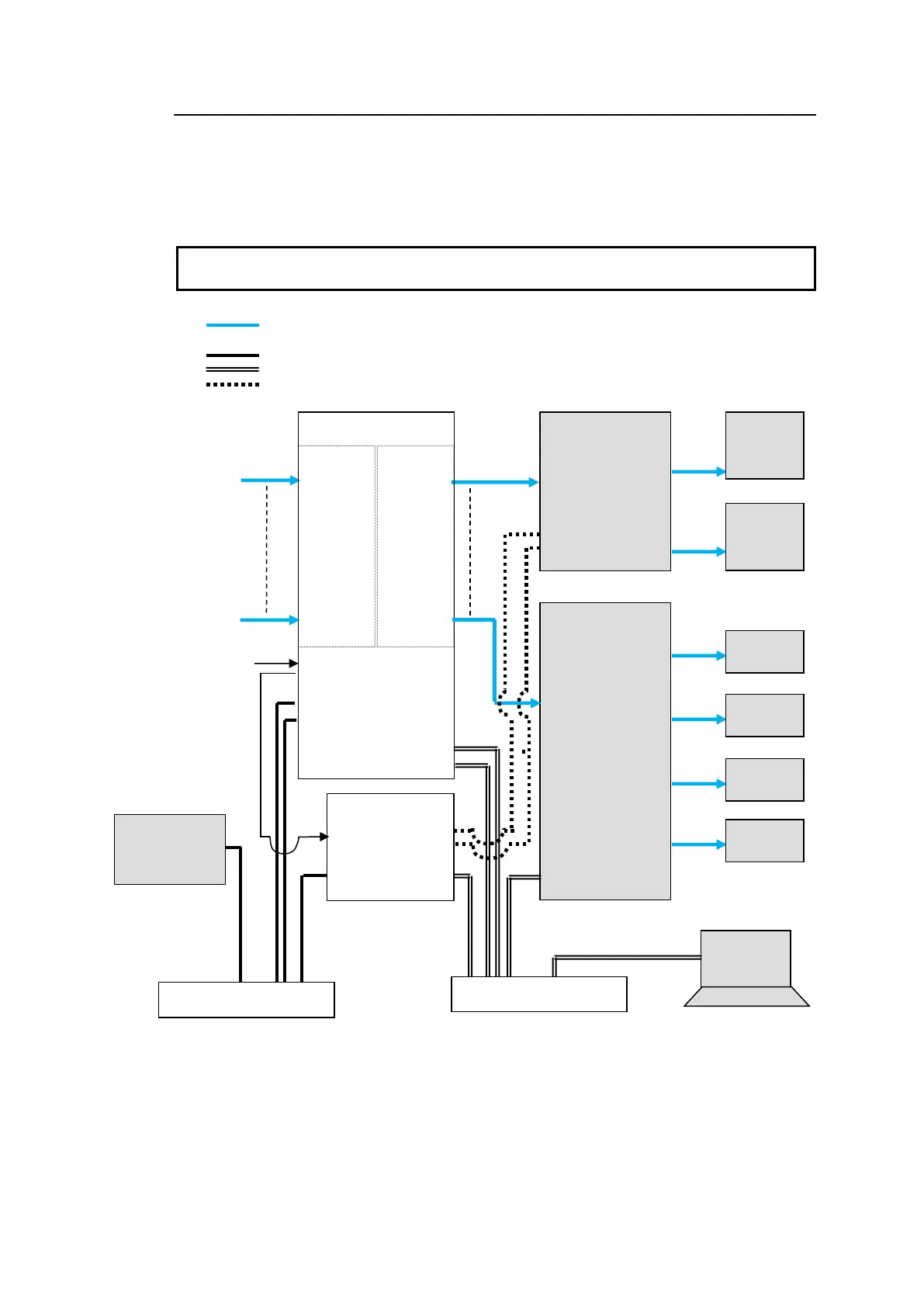

The block diagram below shows an example signal name and tally link system comprised of
a FOR-A video switcher and multiviewer using an MFR-TALM unit. The MFR-TALM is
specifically designed to perform the task of tally data computation, which is ordinarily
undertaken by the MFR-3100EX, to accelerate the computation. RS-422 ports (1) to (4) are
available for video switcher connection.
Before using an MFR-TALM unit for the system, change Tally Control Unit to MFR-TALM
in the [Main unit Web-based Control: MU Settings page].
VIDEO(SDI)
LAN
(MFR-LAN)
LAN (PC LAN)
RS-422
SDI signals
MFR-3100EX
MFR-8SDI
IN1
|
|
|
|
I
|
|
I
|
IN64
MFR-8SDO
OUT1
|
|
|
|
I
|
I
|
|
OUT72
SDI signals
REF IN
MFR-LAN1(31CPU)
MFR-LAN2(3100EX)
PC-LAN1(31CPU)
PC-LAN2(3100EX)
Video Switcher
(HVS-4000)
PGM
Monitor
PRV
Monitor
RS-422(1)
RS-422(4)
Multi Viewer
(MV-3200)
SDI
SDI
DVI
MV
Monitor
BB
DVI
MV
Monitor
SERIAL
DVI
MV
Monitor
MFR-TALM
DVI
RS-422(1)
RS-422(2)
MFR-xxRU
PC-LAN
PC
MFR Web-based Control
MV Layout Editor
MV
Monitor
LAN
MFR-LAN
REF IN
Ethernet Hub (PC-LAN)
Ethernet Hub (MFR-LAN)
