Transmitting Signal Name and Tally Data

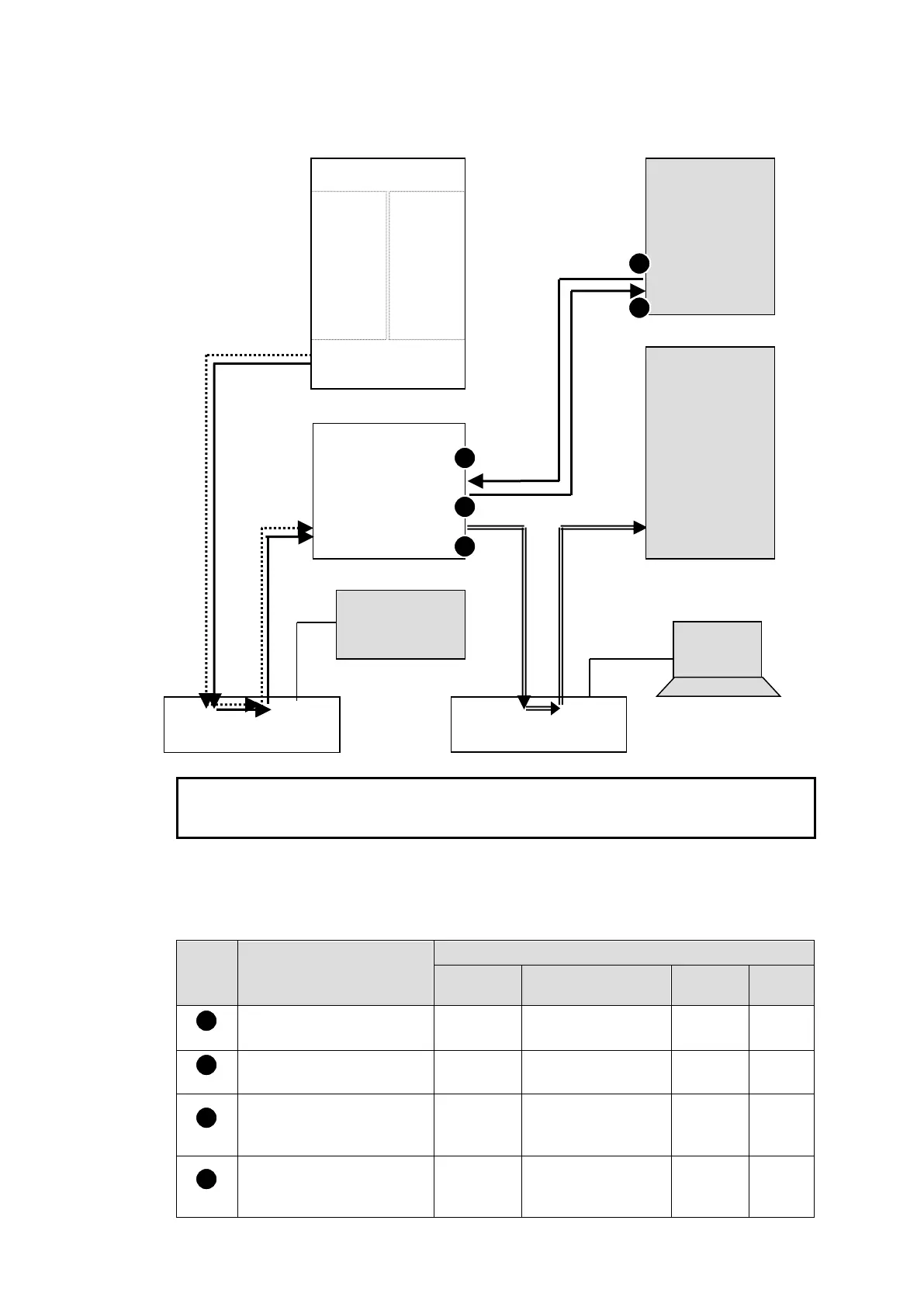

The figure below shows an example signal name and tally data routing system using the MFR-
TALM.
Each serial port should be set as shown in the table below in the relevant page of the MFR-
TALM Web-based Control accessed from "http://192.168.1.62" (default IP address) on your
web browser.
Serial Port Settings
Open the [MFR-TALM Web-based Control: Port Settings - Serial Port page] and perform
port settings.
As for the HVS-4000 unit, perform port setting in the [EXT INTERFACE - RS-422] menu.
Port
Menu
[Port Settings] - [Serial Port]
Connector
Function
Baud
rate
Parity
Web-based Control
[TALM Settings]
No. 1
HVS-TAL Protocol
Reception
38400
EVEN
Web-based Control
[TALM Settings]
No. 2
Router/HVS
connection type 2
38400
NONE
HVS-4000
[EXT INTERFACE - RS-
422]
No. 1
TALLY
38400
EVEN
HVS-4000
[EXT INTERFACE - RS-
422]
No. 4
ROUTER (Tx)
38400
NONE
1
2
3
4
Ethernet Hub (PC-LAN)
Ethernet Hub (MFR-LAN)
MFR-LAN
PC-LAN
RS-422(1)
RS-422(2)
MFR-3100EX
MFR-8SDI
IN1
|
|
|
|
I
|
IN64
MFR-8SDO
OUT1
|
|
|
|
|
|
OUT72
PC
MFR Web-based Control
MV Layout Editor
MFR-TALM
Video Switcher
(HVS-4000)
SERIAL
Multi Viewer
(MV-3200)
RS-422(1)
RS-422(4)
LAN
MFR-LAN
MFR-xxRU
PC-LAN
Signal name data
Tally and name data
3
2
1
4
5
Switcher's tally data
Router's tally and name data
