FOR-A MFR-3000 User Manual

32

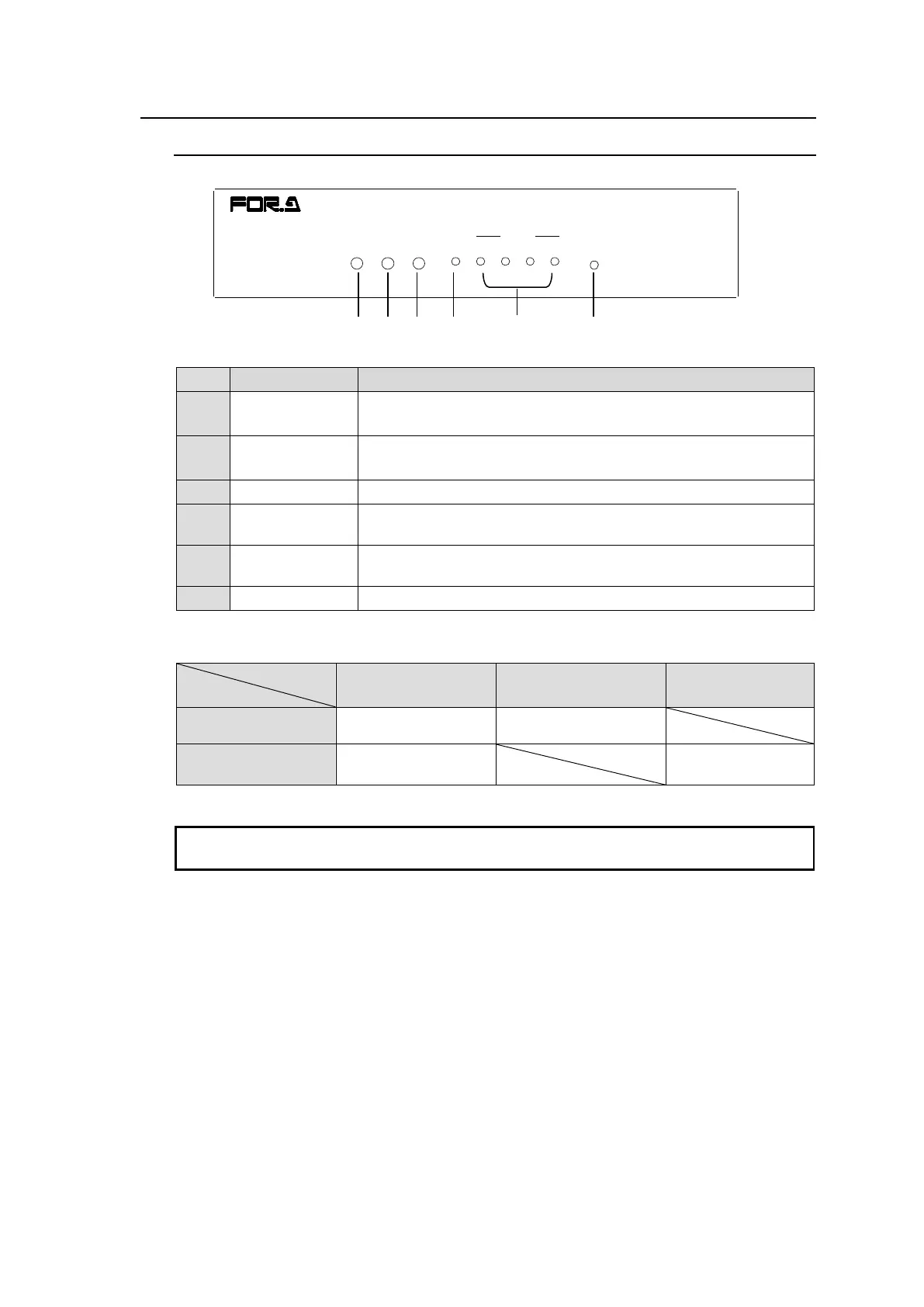

2-6. MFR-TALM
2-6-1. Front Panel
Char.
Item
Description
A
POWER
Displays the power status.
► See the table below for details on indications.
B
BUSY
Displays the flash memory writing status of backup settings.
► See the table below for details on indications.
C
REF IN
Lights green when an external reference signal is present.
D
GPI
Lights green when a GPI function is assigned by Web-based
Control. Turns off when no GPI function is assigned.
E
RS-422 1-4
Lights green when a port function is assigned by Web-based
Control. Turns off when no port function is assigned.
F
RESET
Resets MFR-TALM.
◆ Color indications on the MFR-TALM front panel
LED Color
LED
Green
Red
Orange
POWER
Normal
Power alarm
BUSY
Normal processing
Writing to flash
memory
IMPORTANT
Do not power off the unit while BUSY LED is lit orange (writing to the flash memory, about
2 minutes at most).
POWER BUSY REF IN GPI RS-422 RESET
21 43
TALLY M AN AGER U N IT
MFR-TALM
A
B
E
F
C
D
