38
Transmitting Signal Name and Tally Data

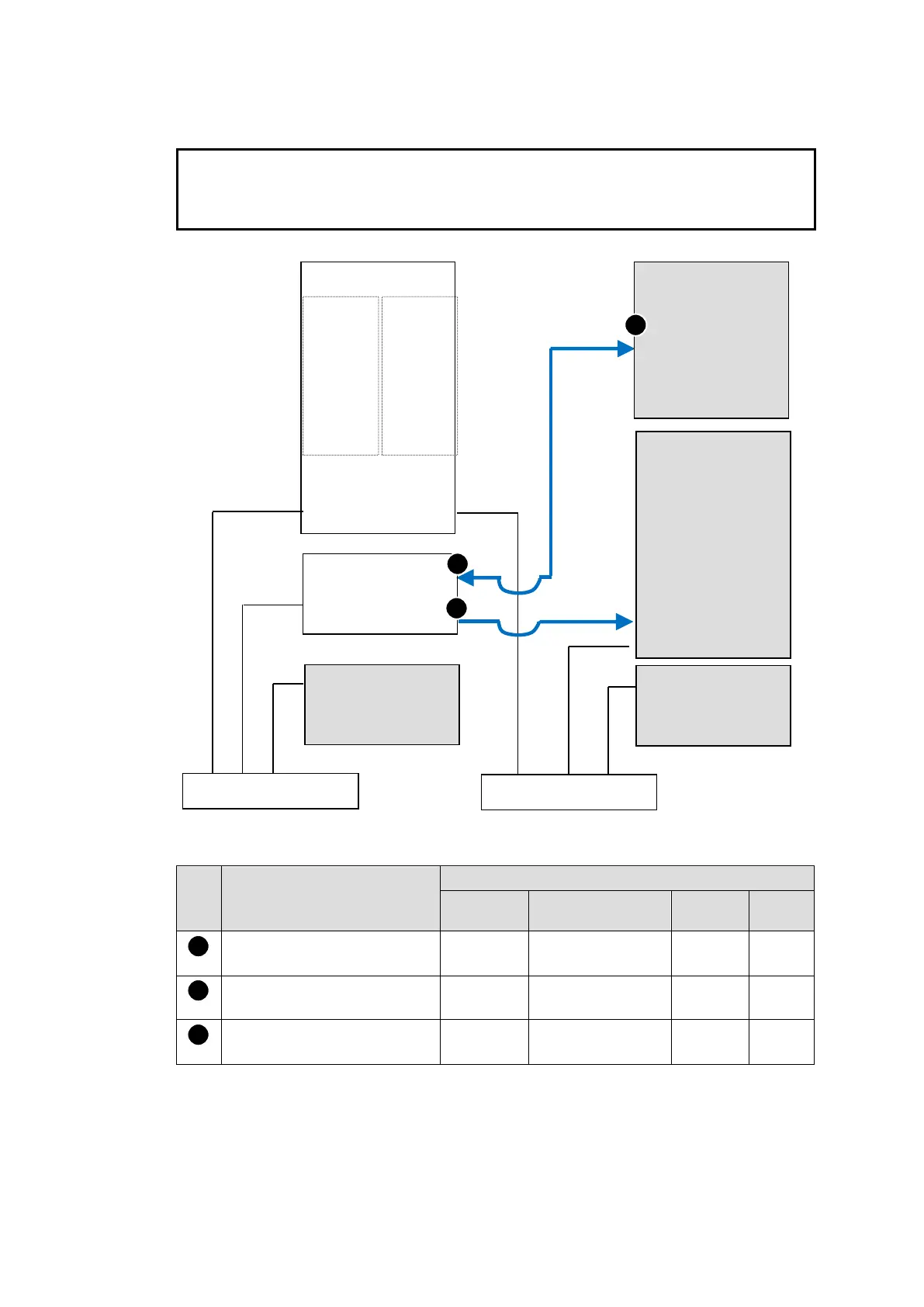

The figure below shows the routing of signal name and tally data.
Set each serial port following the table on this page using the MFR Web-based Control and
on the switcher.
Each tally information setting should be performed in the [Web-based Control: Tally System
Settings page].
Serial Port Settings
Port
Menu
[Port Settings] - [Serial Port]
Connector
Function
Baud
rate
Parity
Web-based Control
[Port Settings]
(GPI)
No. 1
Router/HVS
connection type 2
38400
NONE
HVS-4000
[EXT INTERFACE - RS-422]
ROUTER(Tx)
38400
NONE
Web-based Control
[Port Settings]
(GPI)
No. 2
Tally out
(TSL Ver. 3.1)
38400
EVEN
Other Parameter Settings (in HVS-4000)
To send tallies to the router, set [TALLY ENABLE] in the ROUTER menu to [ON].
To receive source names from the router, set [SIGNAL ENABLE] in the ROUTER menu to
[ON].
1
2
3
Names>>
Switcher tallies >>
MFR-LAN
MFR-3100EX
MFR-8SDI
IN1
|
I
|
|
I
|
IN64
MFR-8SDO
OUT1
|
|
I
|
I
|
|
OUT72
PC-LAN
RS-422(4)
MFR-GPI
Video Switcher
(HVS-4000)
Multi Viewer
(MV-3200)
SERIAL1
Names
Tallies
MFR-LAN
SERIAL 2
SERIAL
2
LAN
PC
(MFR Web-based
Control)
MFR-xxRU
Ethernet Hub (PC-LAN)
Ethernet Hub (MFR-LAN)
1
3
