4. Router and Tally System Settings
Router System Settings and Tally System Settings are used to establish the system.
Refer to Sec. 3. "MFR Main Unit Page Configuration" for details on how to display pages.
4-1. Router System Settings
This page changes the signal name, and set the Lock and Inhibit settings.
4-1-1. Source Name

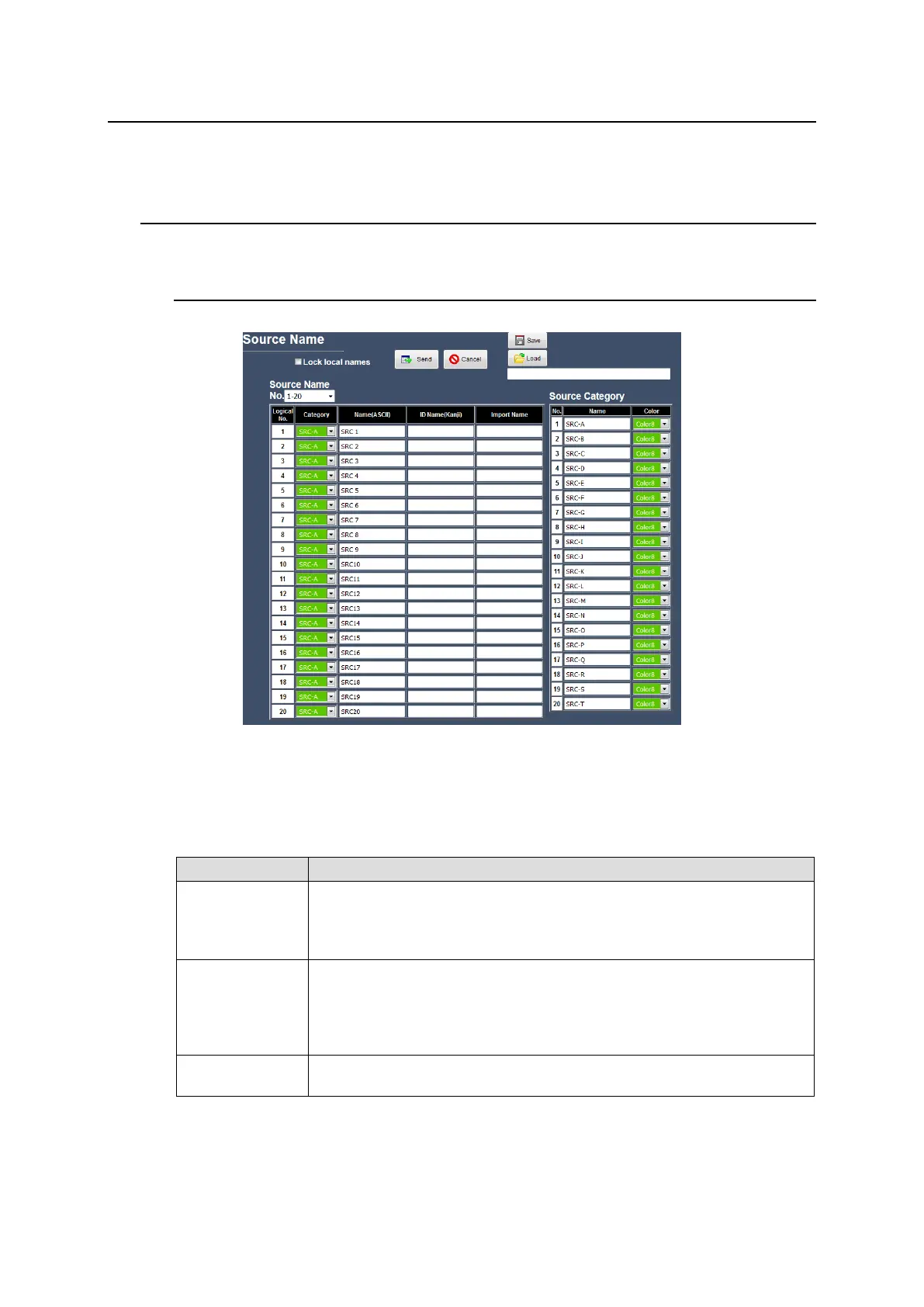

Click Source Name in the tree to display the Source Name page.
Renaming a Source Name
1. Input a channel range (1-20, 21-40...) in the Source Name No. entry box in the upper left
side of this page.
2. Enter name(s) you wish to rename under Name (ASCII) or ID Name (Kanji).
Enters the Source Name displayed on the remote control panel button
when the Display mode is set to ASCII (one-byte character display).
The names specified on this page are displayed on HVS and MV series
units.
Enters the Source Name displayed on the remote control panel button
when the Display mode is set to KANJI (two-byte character display).
The names specified on this page are displayed on the UMD-30DP. (If
no name is set, the source names specified under Name (ASCII) are
displayed.)
Displays imported signal names, which can be imported from an
external name server using LAN commands.
3. After inputting all necessary settings, click the Send button.
