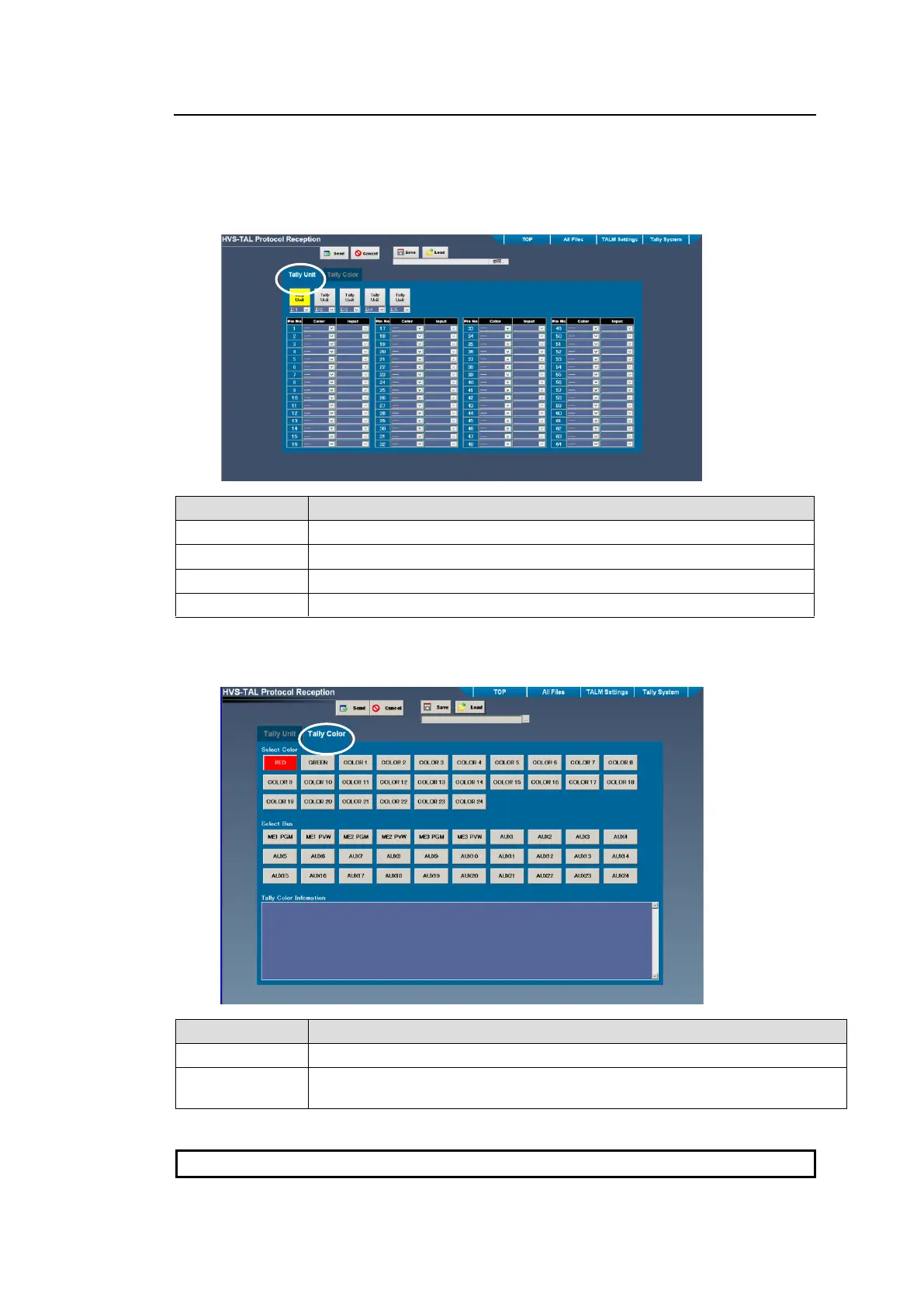

9-3-3. HVS-TAL Protocol Reception
The HVS-TAL Protocol Reception page allows you to set up Hanabi series serial tallies to be
received.
Tally Unit settings
Click the Tally Unit tab.
Parameter
Description
Tally Unit
Specifies a Hanabi Tally Unit by specifying the ID number.
Pin No
Indicates the tally unit's Pin Number.
Color
Selects a tally Color assigned to each pin.
Input
Selects an Input signal or bus assigned to each pin.
Tally Color Settings
Click the Tally Color tab.
Parameter
Description
Select Color
Selects a tally Color for use.
Select Bus
Selects an output Bus, to which the tally color selected above is assigned in
the Hanabi series switcher.
IMPORTANT
Settings in this page must be the same as those in the Hanabi series switcher.
