FOR-A MFR-3232 User Manual

22
 Setting and Releasing an Inhibition
1. Double-click a crosspoint cell. An X mark will be displayed in the cell.
2. Click the Send button to inhibit the setting.
In the same way, click the cell where an inhibition is applied. The X mark disappears. Click the
Send button to release the inhibition. Up to 50,000 inhibition settings can be stored in the
MFR-5000/8000/3000 units and 8,192 in the MFR-1000/1616/1616R/3216/3232/1616A units.

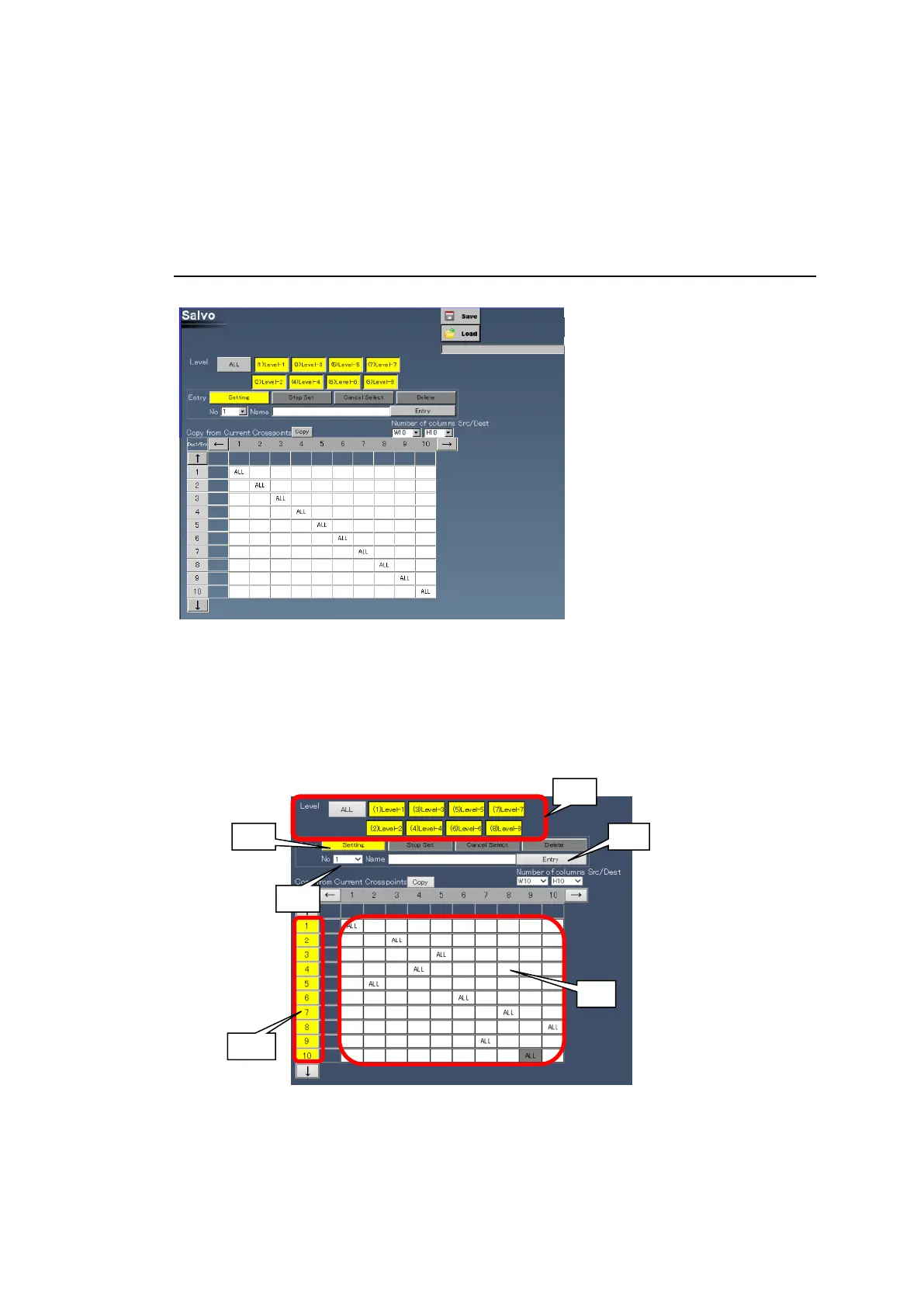

4-1-6. Salvo
The Salvo page allows you to select salvo settings.
 Copying from Current Crosspoint
Selecting the Copy button allows you to copy settings from current crosspoint.
 Registering a Salvo
1. In the Level area, select Enabled/Disabled for each level. (Enabled: Yellow, Disabled:
Gray)
2. In the Entry area, select Setting.
If you select the Cancel Select button, destination channel select is cancelled.
4.
3.
5.
6.
1.
2.
