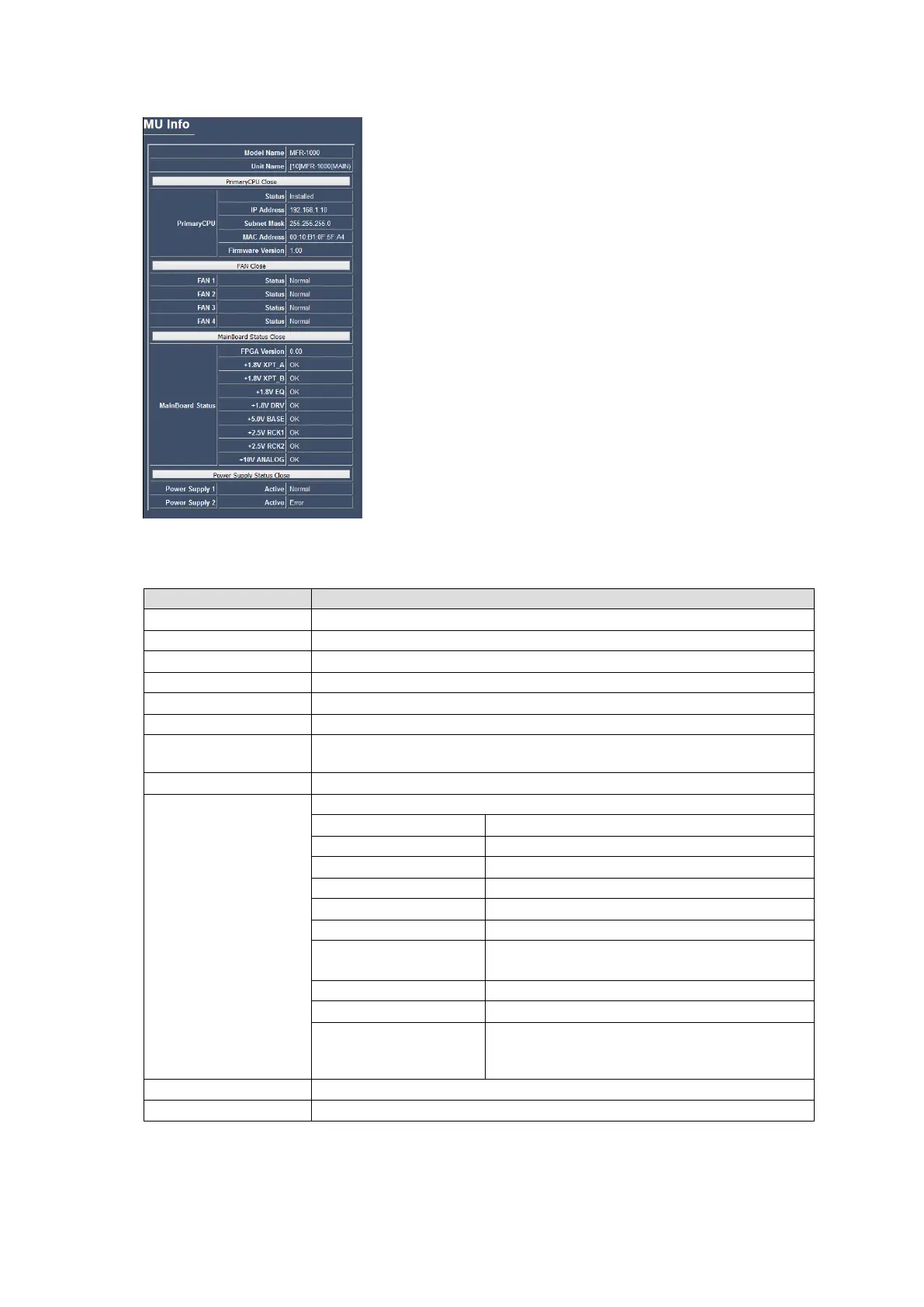

MFR-1000
Available parameters vary depending on the main unit. See the table below for details.
Parameter
Description
Model Name
Displays the Model information.
Unit Name
Displays the Unit Name and unit ID.
Serial Communication
Displays the Serial port status.
Active CPU
Displays the active CPU (CPU1 or CPU2).
MY CPU Condition
Displays whether the currently accessed CPU state is Active or Passive.
MY CPU Number
Displays whether the currently accessed CPU is Primary or Secondary.
Secondary CPU
Condition
Displays the Secondary CPU status.
MENU Brightness *1
Displays the display panel brightness level.
PrimaryCPU *5
Displays information on the primary CPU as follows.
Status
Indicates whether or not the CPU is installed.
IP Address
Displays the IP address.
Subnet Mask
Displays the Subnet mask.
MAC Address
Displays the MAC address.
Firmware Version
Displays the Firmware version information.
FPGA Version *1
Displays the FPGA version information.
2.5V/1.8V/3.3V/
5V/48V/1.2V/ *1
Displays the voltage level.
Temperature *1
Displays the Temperature.
CPUSwitch Settings *4
Displays the serial port setting.
RearBoard *1
1.5V/1.8V/3.3V/5V/
Temperature
Displays the rear board power voltage level and
temperature.
SecondaryCPU *6
Displays the secondary CPU information (same as PrimaryCPU above).
FAN
Displays each cooling fan status.
