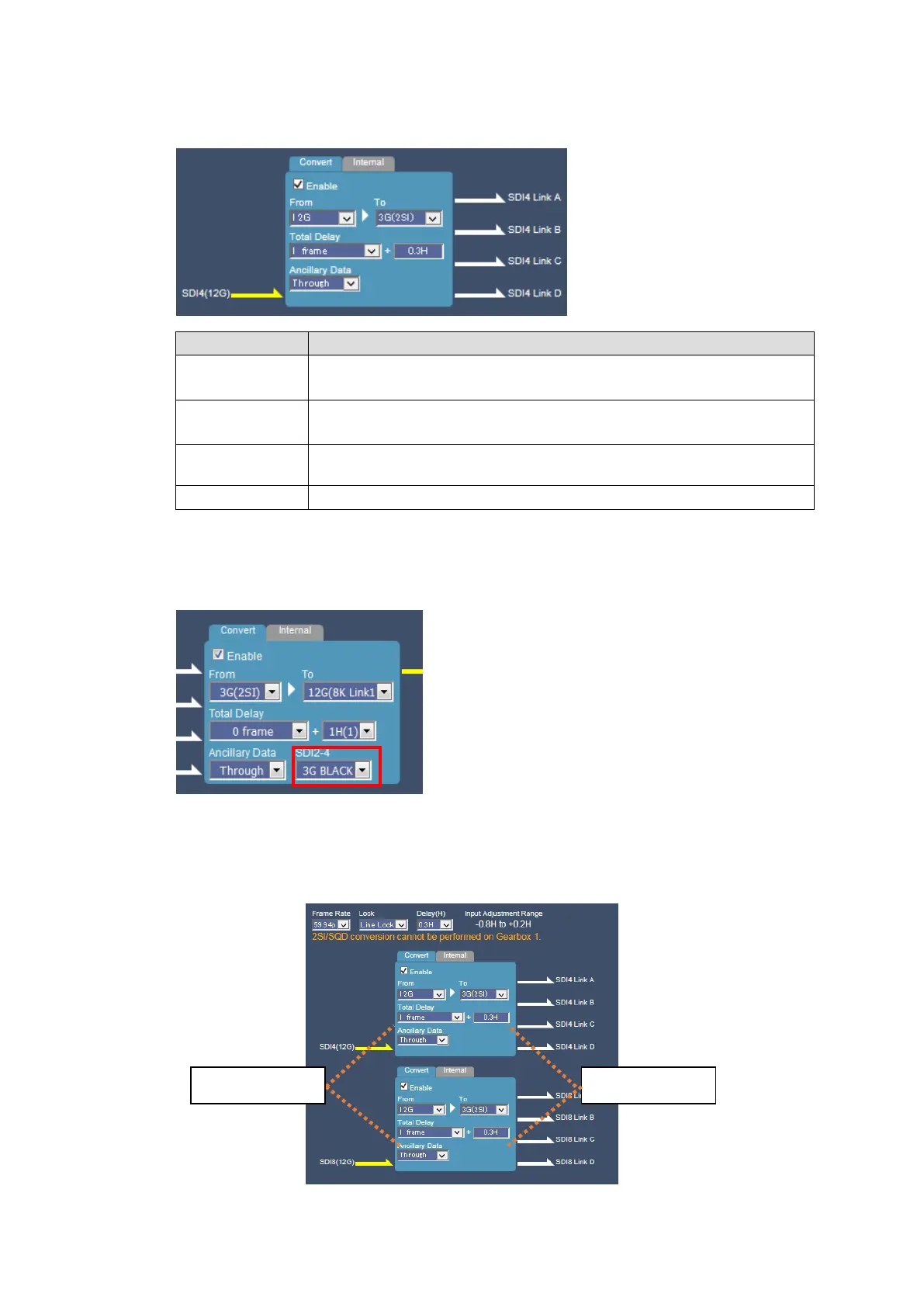

<Converted Input Signal Output>
Select the Convert tab and check Enable. Select an input format in the From box and an
output format in the To box.
Parameter
Description
From
Selects an SDI signal format to input to Gearbox.
12G-SDI cannot be selected for output card Gearboxes.
To
Selects an SDI signal format to output from Gearbox.
12G-SDI cannot be selected for input card Gearboxes.
Total Delay
Selects a Gearbox delay value. (See “Selecting Lock and Delay
Settings” below.)
Ancillary Data
Selects H/V ancillary data pass-through (Through) or mask (Mask).
<3G-SDI BNC Output Settings>
When converting 3G Quad-Link to 12G-SDI, 3G-SDI Black or 12G-SDI Link 1 are selectable
for remaining 3 SDI output signals.
 Selecting Lock and Delay Settings
Gearboxes on both input and output cards should be set in pairs. Lock and Delay settings
depend on the combination of input and output signal formats. Total Delay amounts are
settable for each Gearbox.
Total Delay (frame)
setting
Total Delay (H)
setting
