Framery 2Q Huddle

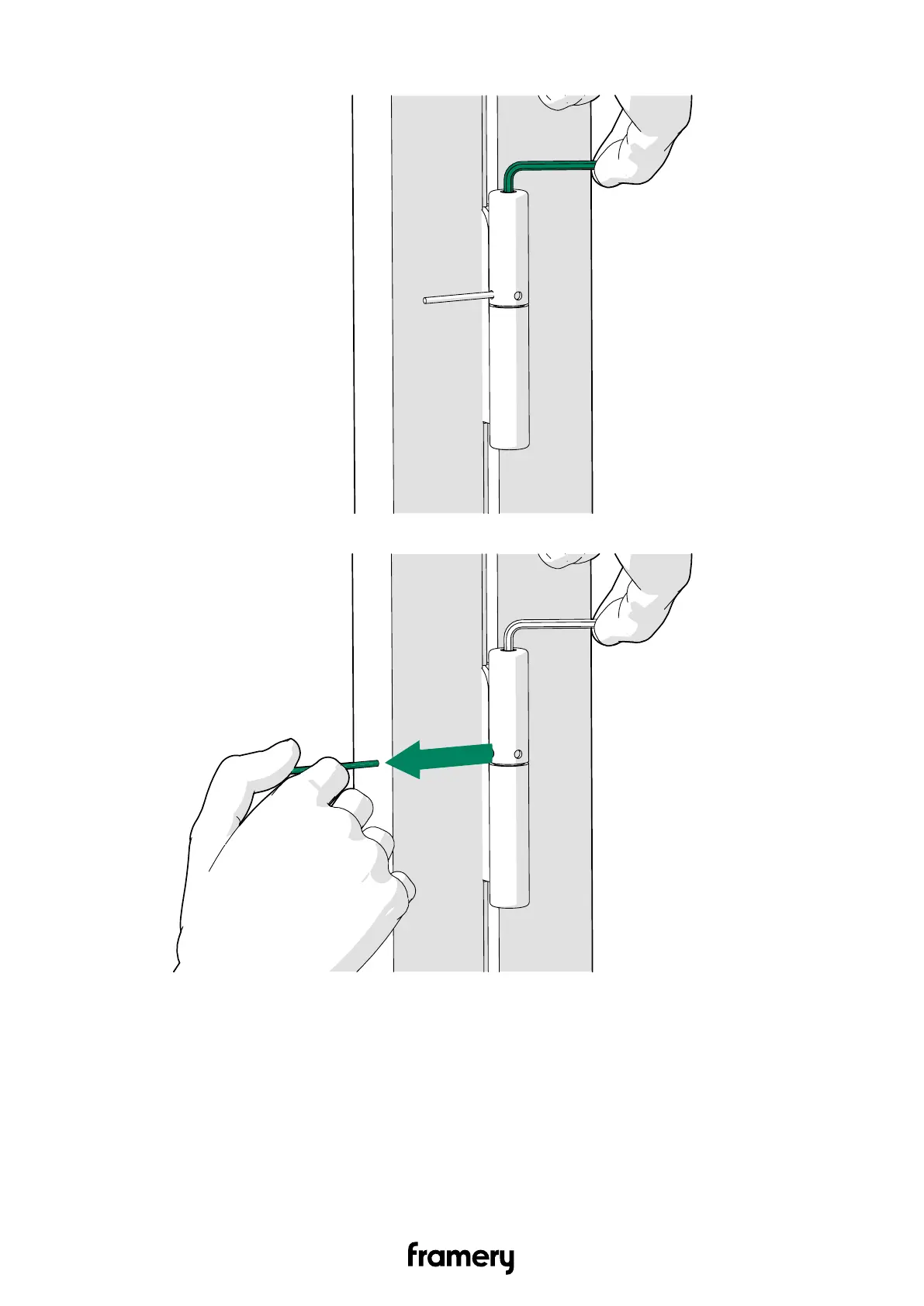

5. Reinsert the 5 mm hex key into the top of the hinge.

6. Hold the hex key in place and remove the lock pin.

106

Installation instructions
