Framery 2Q Huddle

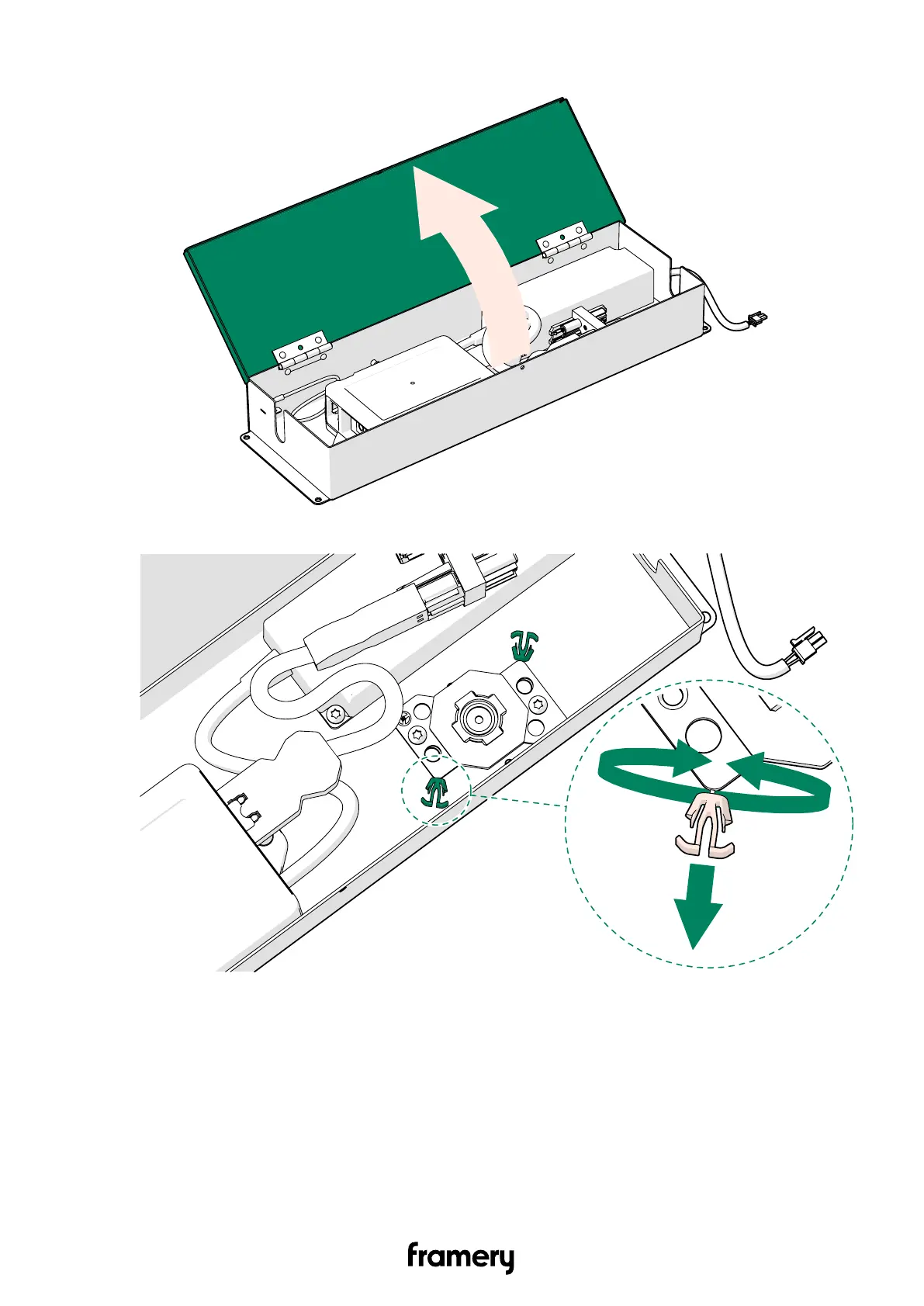

4. Open the lid of the metal box.

5. Remove the platic inserts from the corners of the GST splitter baseplate.

Installation instructions

info@frameryacoustics.com

131
