Framery 2Q Huddle

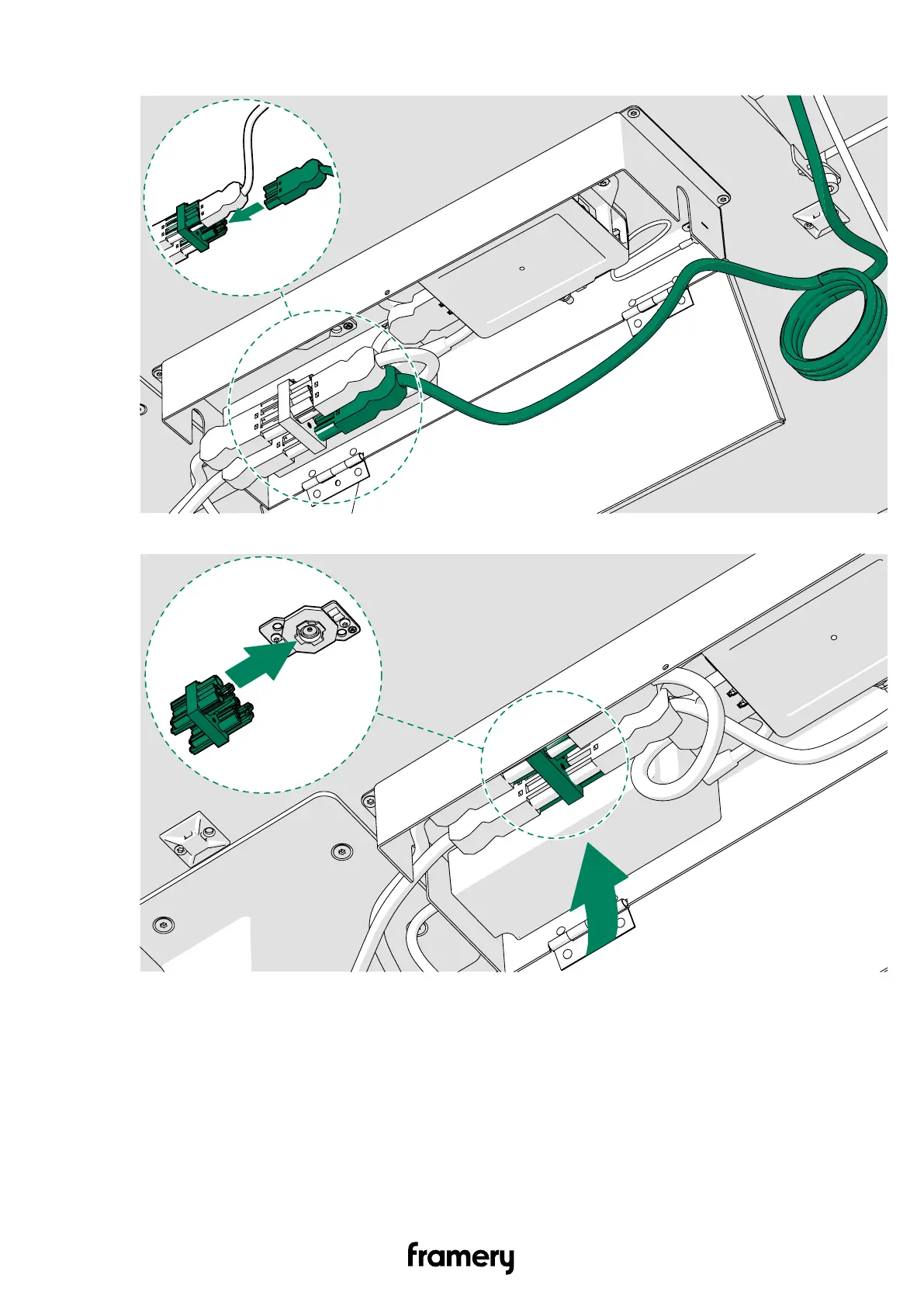

3. Connect the power outlet cord to the GST splitter.

4. Slide the GST splitter onto the base plate.

Installation instructions

info@frameryacoustics.com

139
