Framery 2Q - Page 145

To Next Page

To Previous Page

Framery 2Q Huddle

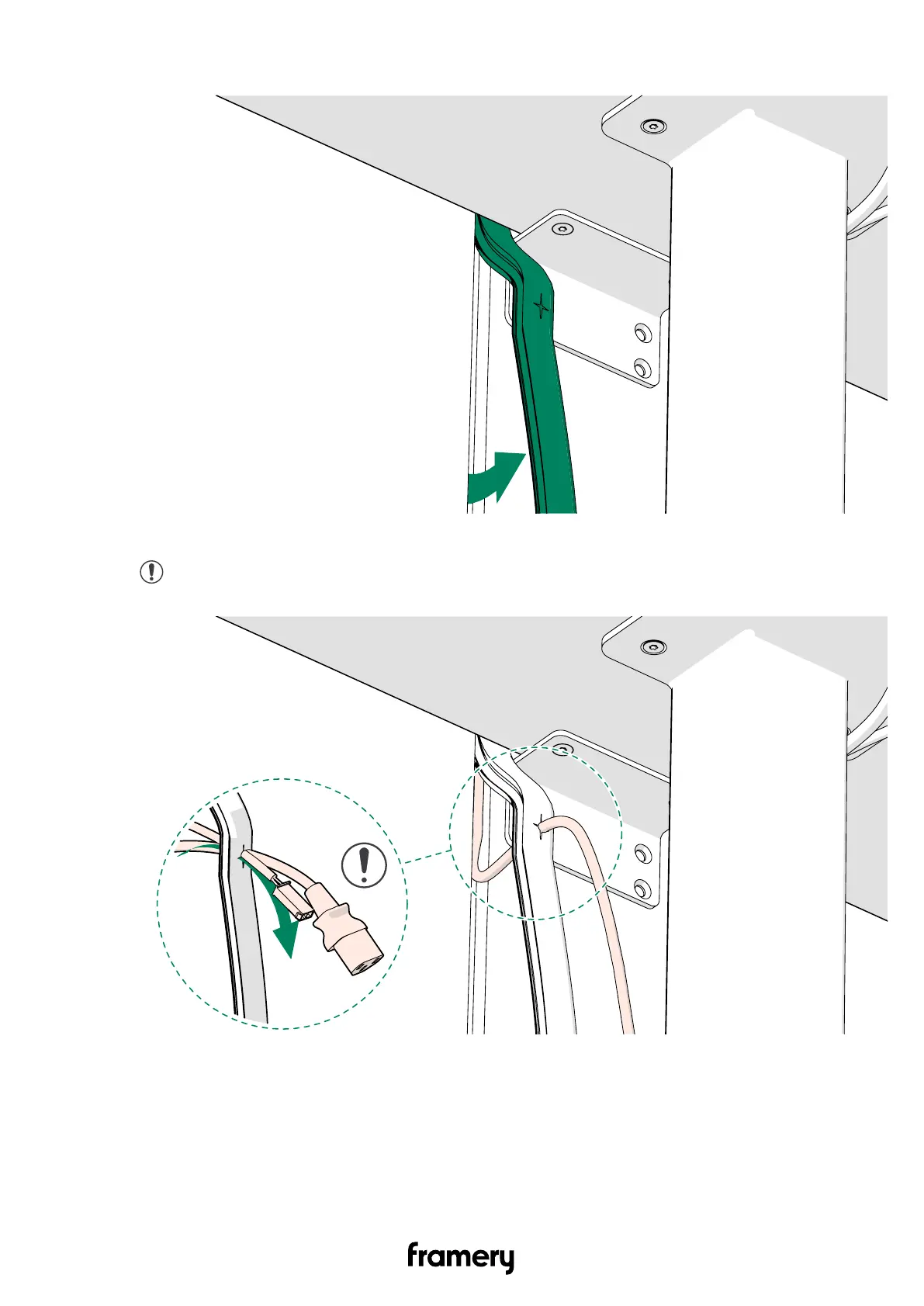

8. Pull the seal out of the U-profile.

9. Guide the DC extension cord through the slit.

Note: If you have installed the power cord from the roof, guide the power cord

through the slit.

Installation instructions
