Framery 2Q Huddle

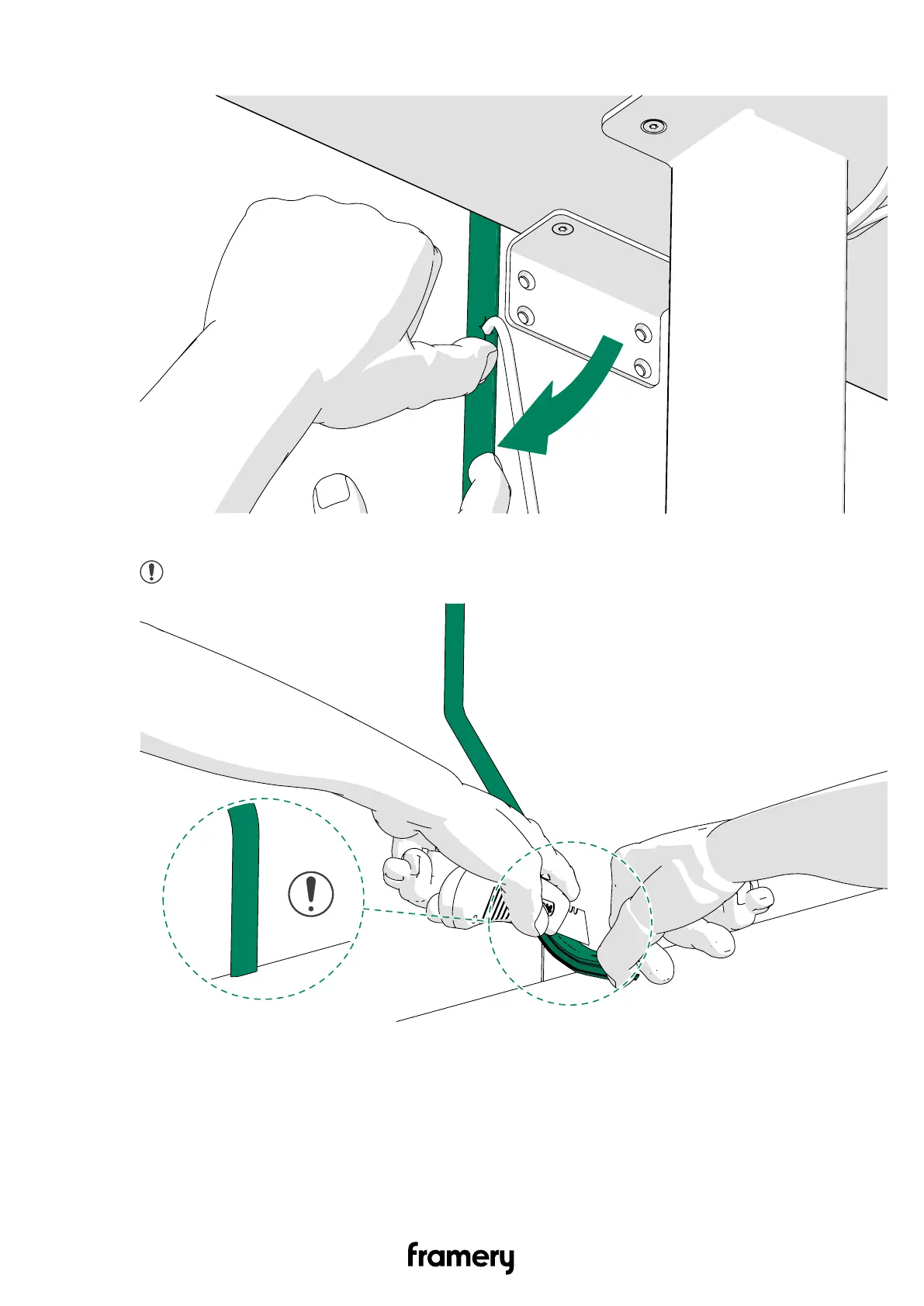

10. Press the seal back into the U-profile.

11. Cut the seal to the correct length.

Note: Measure the seal to the floor.

146

Installation instructions
