Framery 2Q - Page 156

To Next Page

To Previous Page

Framery 2Q Huddle

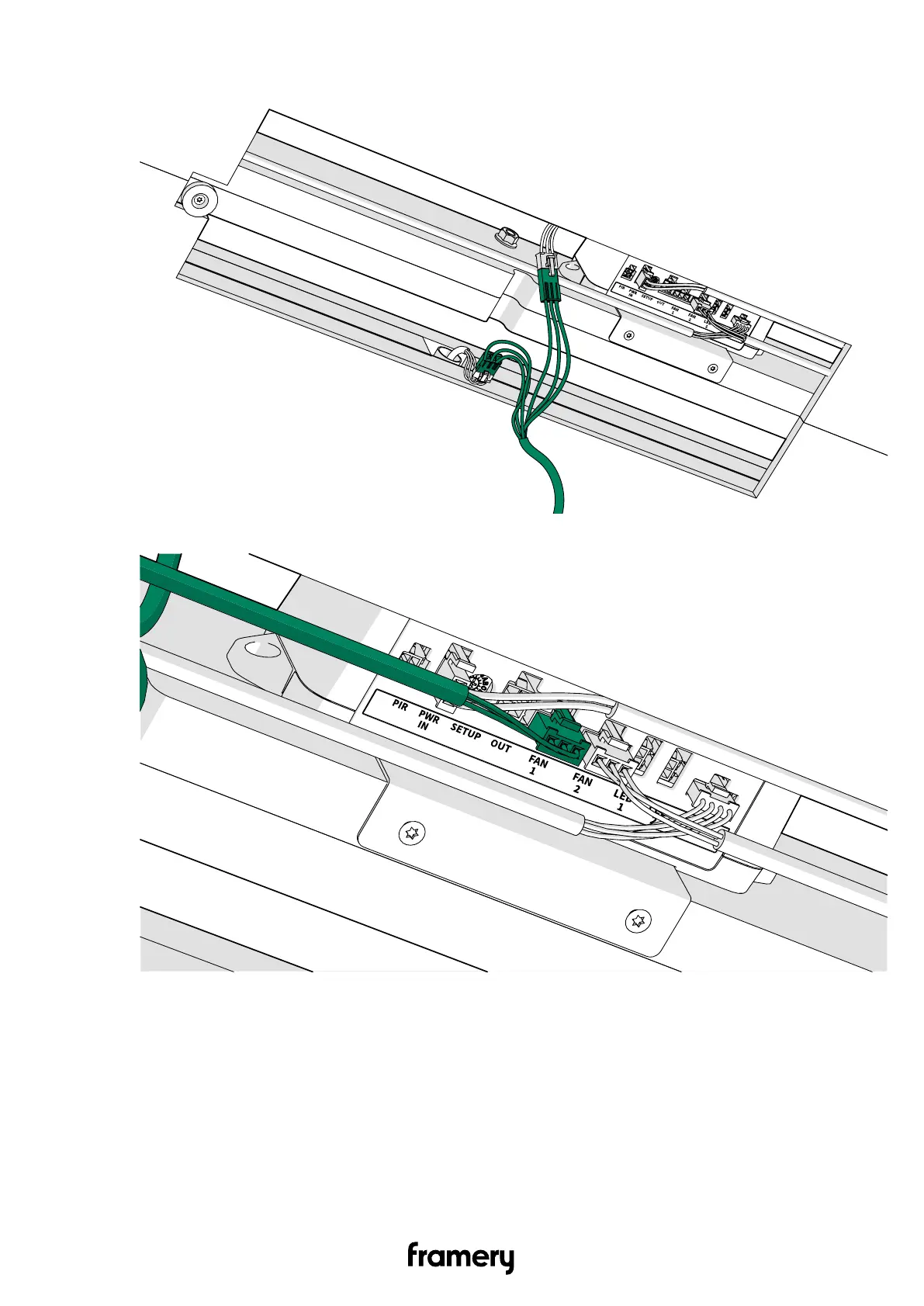

4. Connect the fan DC cords to the short fan extension cord at the front.

5. Connect the short fan extension cord to the FAN 1 connector of the control unit.

156

Installation instructions
